带3个调节器，线性移动范围±3 mm，俯仰角偏转角±4°/±5°，调节精度0.32°/转
适用Ø25.4 mm光学元件
兼容30 mm同轴系统
材质：6061-T6 铝合金
表面处理：黑色阳极氧化
固定式，可调式可选
适用各向异性光学元件（如偏振光学元件）
360°旋转，2°刻度精度，每20°刻有角度数字
侧面带锁紧螺钉
X，Y方向位移行程±1 mm或±3 mm
X，Y轴方向调节器M5 x 0.25，精度0.25 mm/转，X，Y螺纹副带M3锁定螺丝
测微头驱动10 μm/格
挠性设计，带行程范围刻度标识
精密测微驱动器平移以1 µm为分度
可安装最大厚度为7.2 mm的1英寸光学元件

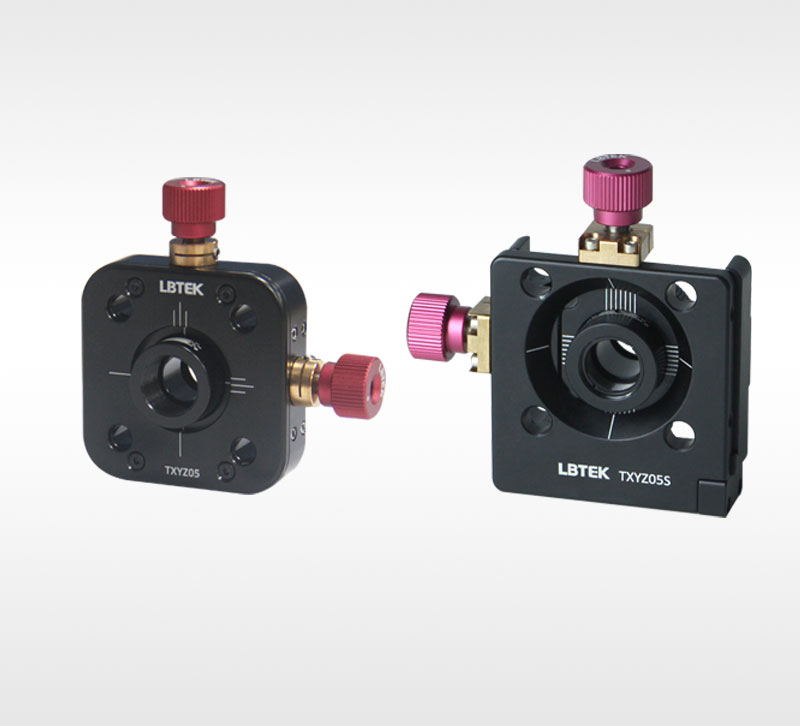

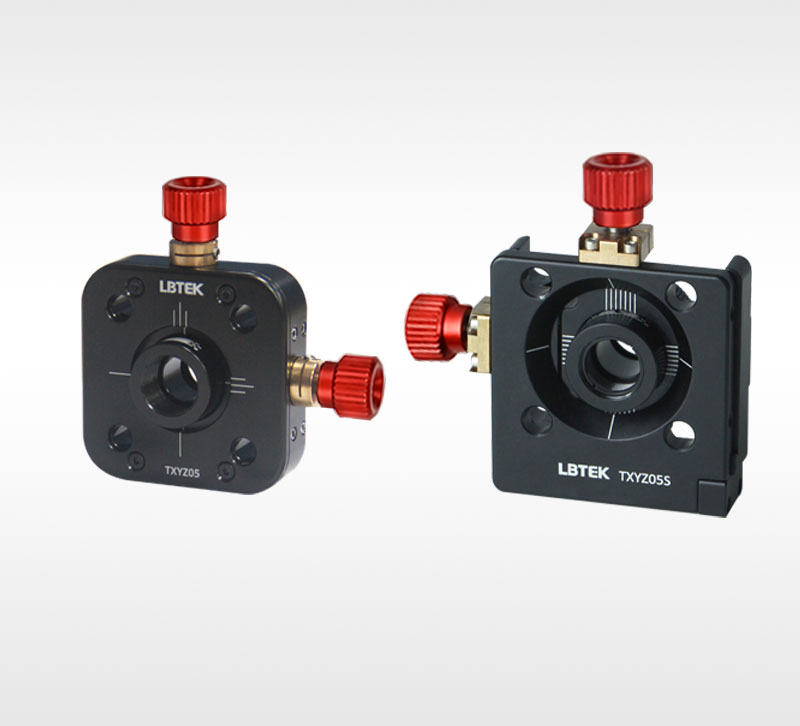

X, Y,方向行程±1.5 mm/±2.0 mm， Z方向位移行程±1.5 mm
X,Y轴方向调节器精度0.25 mm/转，Z轴方向调节精度0.5 mm/转
X,Y螺纹副带M3锁定螺丝

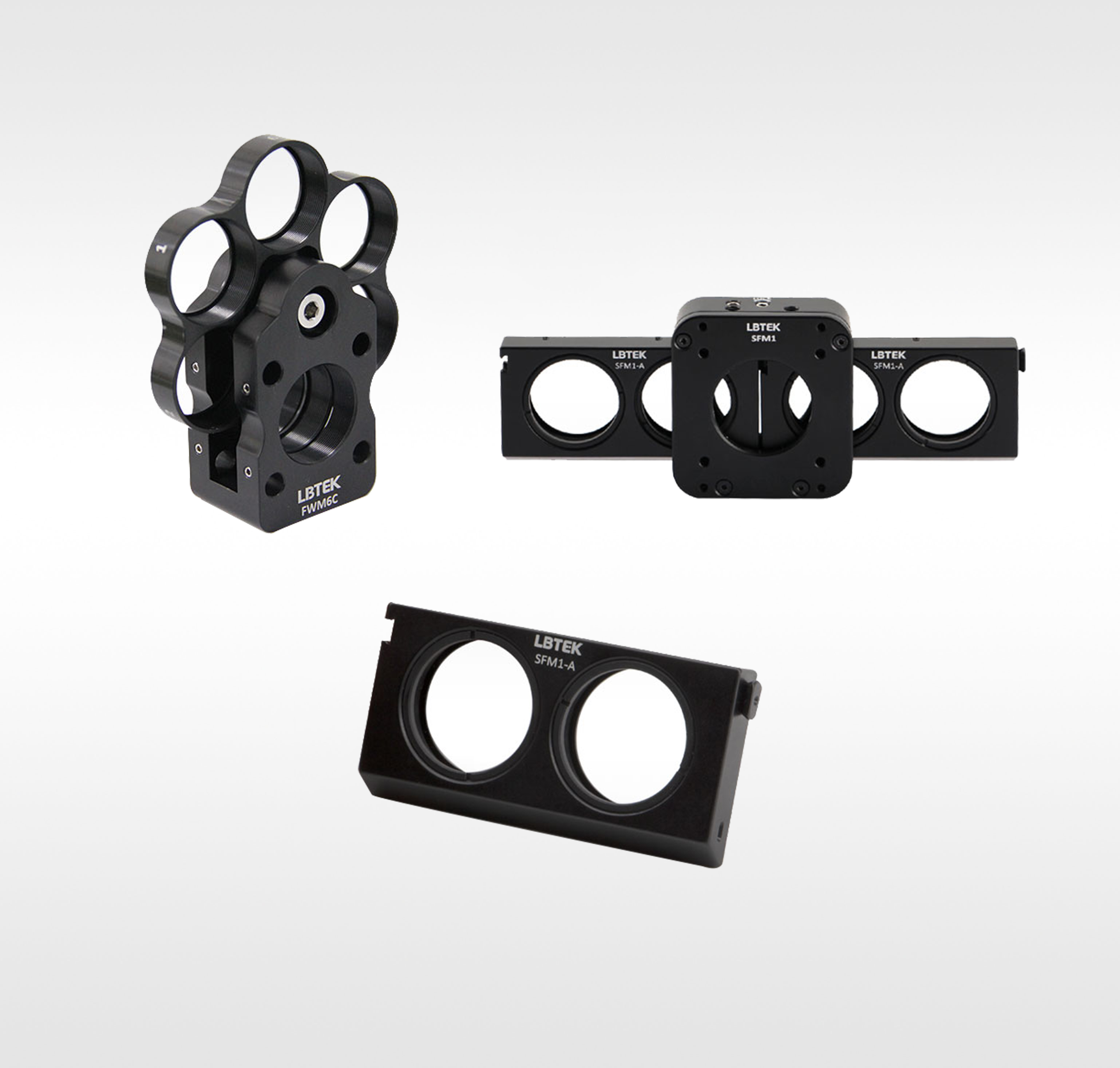

SM1螺纹及M3/M4/M2.5螺纹孔，兼容Ø25.4 mm元件及光学接杆
钢球与V型槽、波珠弹簧锁销等机制，确保切换后光路对准一致
插条与安装架支持叠加，兼容30 mm同轴系统
适用于Ø25.4 mm的光学元件
V型槽和钢球进行定位，便于光学元件对准
可将圆柱透镜或其他矩形元件安装在30 mm同轴系统中
滑动臂和同轴板可以独立移动
同轴板上1 mm间距的刻度线协助光学元件共轴
夹持圆形或方形元件
夹持高度可调节并带有锁紧
沿30 mm同轴系统光轴方向平移器件

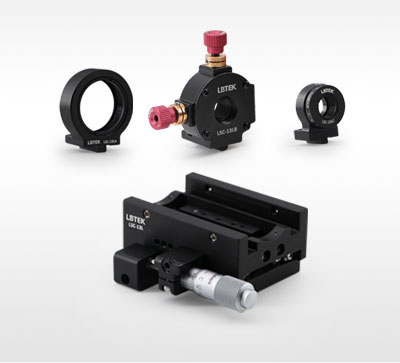

提供旋转和XY位移配件，用于校正光学元件
各安装座配件单独出售，可互相替换

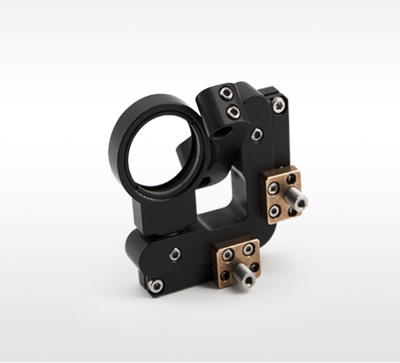

万向调节设计
安装直径25.4 mm的光学元件
用于30 mm同轴系统
