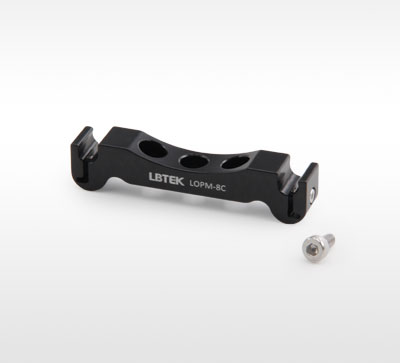

将60 mm同轴板转接至光学平台或面包板
带定位承靠面，防止旋转
低剖面、水平安装
适用于60 mm同轴系统

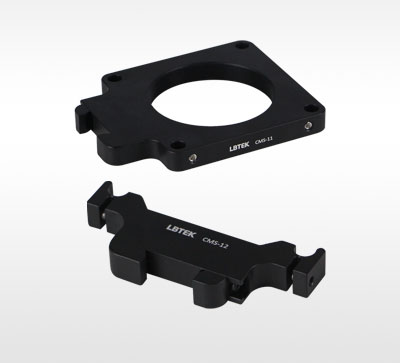

将同轴组件沿常用光轴安装到燕尾导轨
同轴板和卡入式安装架可选
用于60 mm同轴系统

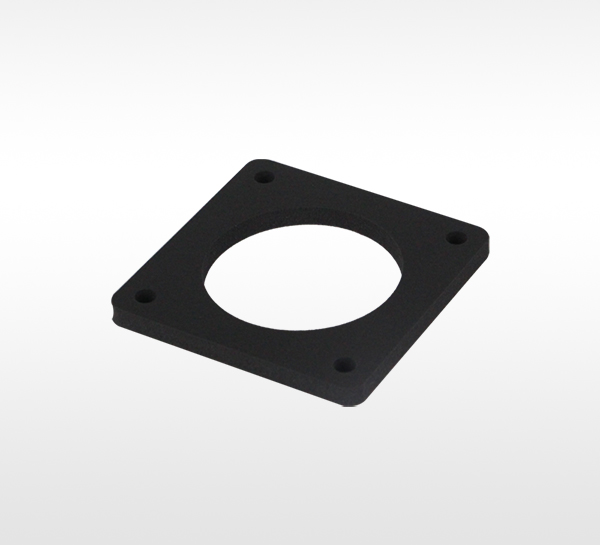

压缩回弹性强的材料
遮挡两个同轴安装板之间的光

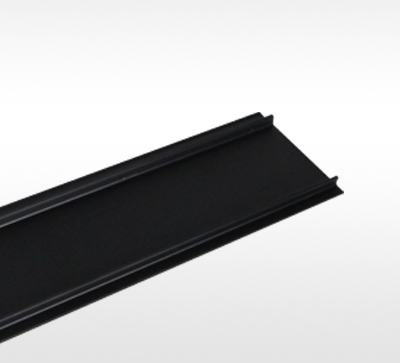

易切割的黑色HIPS材料
遮挡同轴系统四周的杂散光
兼容30 mm和60 mm同轴系统
沿同轴系统光轴方向移动器件
配合OPM系列同轴板使用
材质：6061-T6 铝合金
表面处理：黑色阳极氧化
兼容60 mm同轴系统
将30 mm同轴系统垂直安装在30 mm同轴系统或者60 mm同轴系统中
中心SM1内螺纹，用于SM1透镜套筒和Ø25.4 mm光学元件
侧面带锁紧螺钉
主体材质6061-T6铝合金
记录同轴系统中组件的位置
挠性夹紧
材质：6061-T6铝合金
固定角度：90°
兼容Ø6 mm接杆
易拆卸或安装
挠性结构设计，保证夹持稳固
30mm和60mm同轴系统垂直安装
带U型沉头槽，用于安装在面包板/光学平台上
适合搭建紧凑型光学系统
螺纹规格SM2
提供两端内外螺纹(SM2-xxA)、内螺纹(SM2-xxB)和外螺纹(SM2-xxC)三个版本
材质：304不锈钢

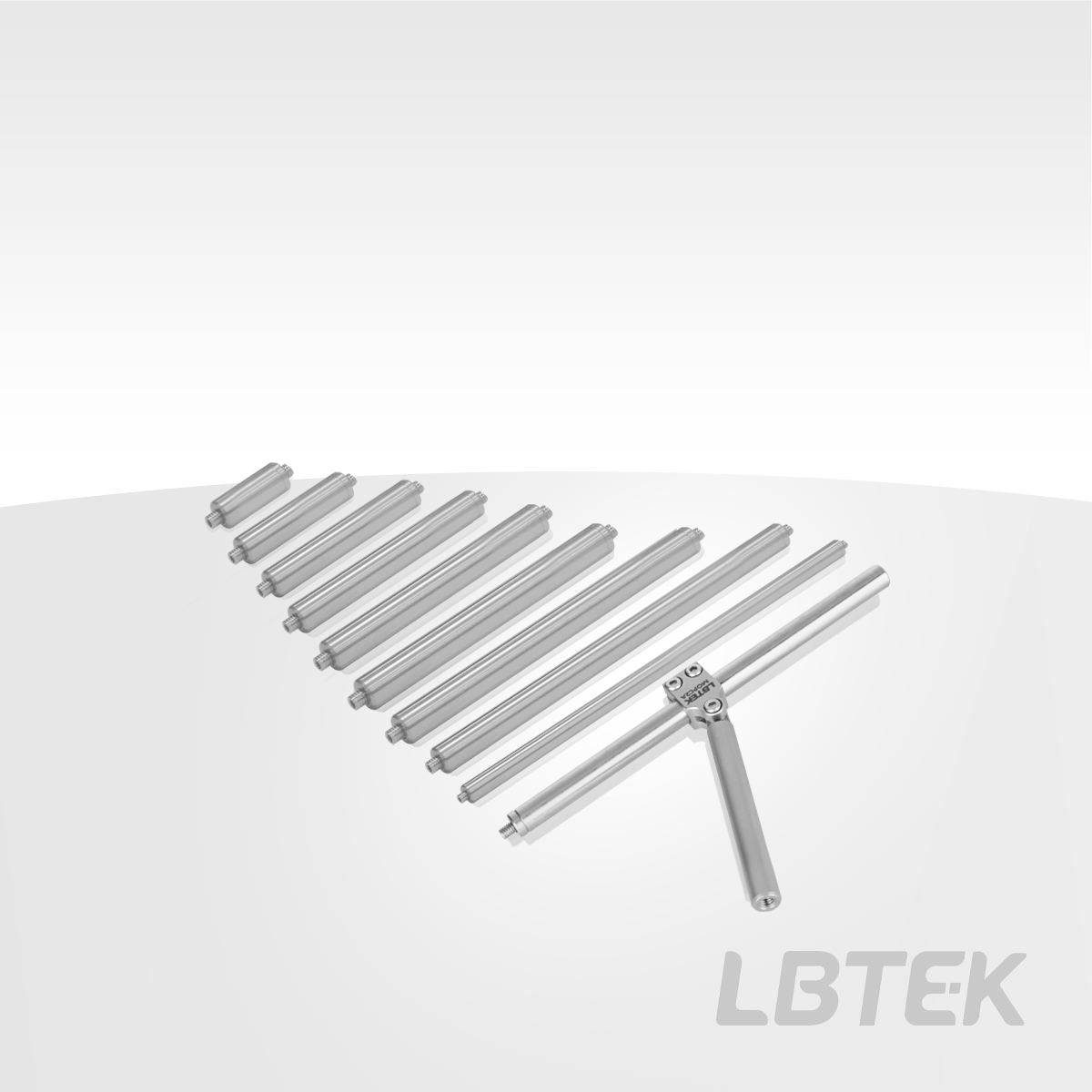

适用Ø6 mm同轴接杆使用
M3，4-40螺柱可选，可一包四个购买
可拆卸与不可拆卸螺丝（一体式）两种
兼容同轴系统
长度：6.5 mm-500 mm多种长度规格可选
兼容30mm和60mm同轴系统
SM1螺纹贯穿孔
