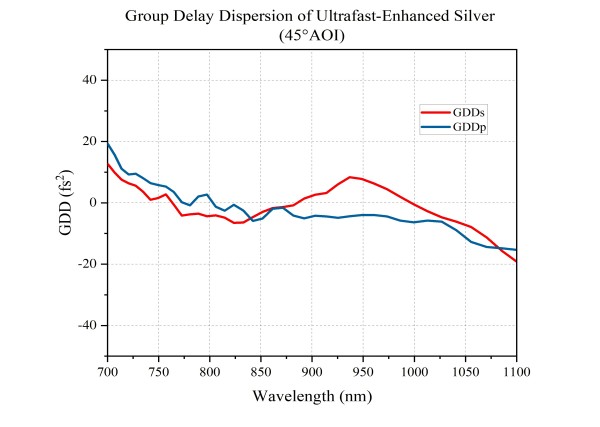

曲线
技术说明
组装

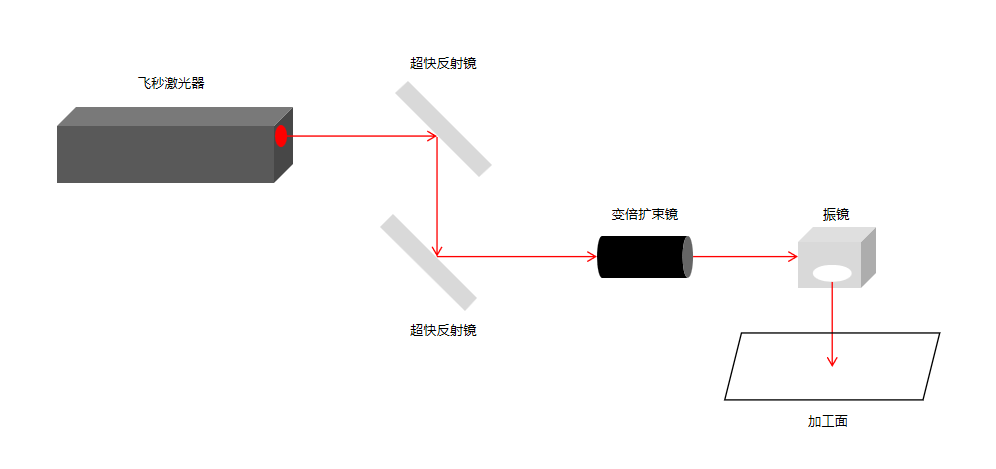

应用案例
反馈
产品说明
- 超快增强型银膜，低群延迟色散
- 光学材质：紫外熔融石英
- 工作波长：750 nm-1000 nm

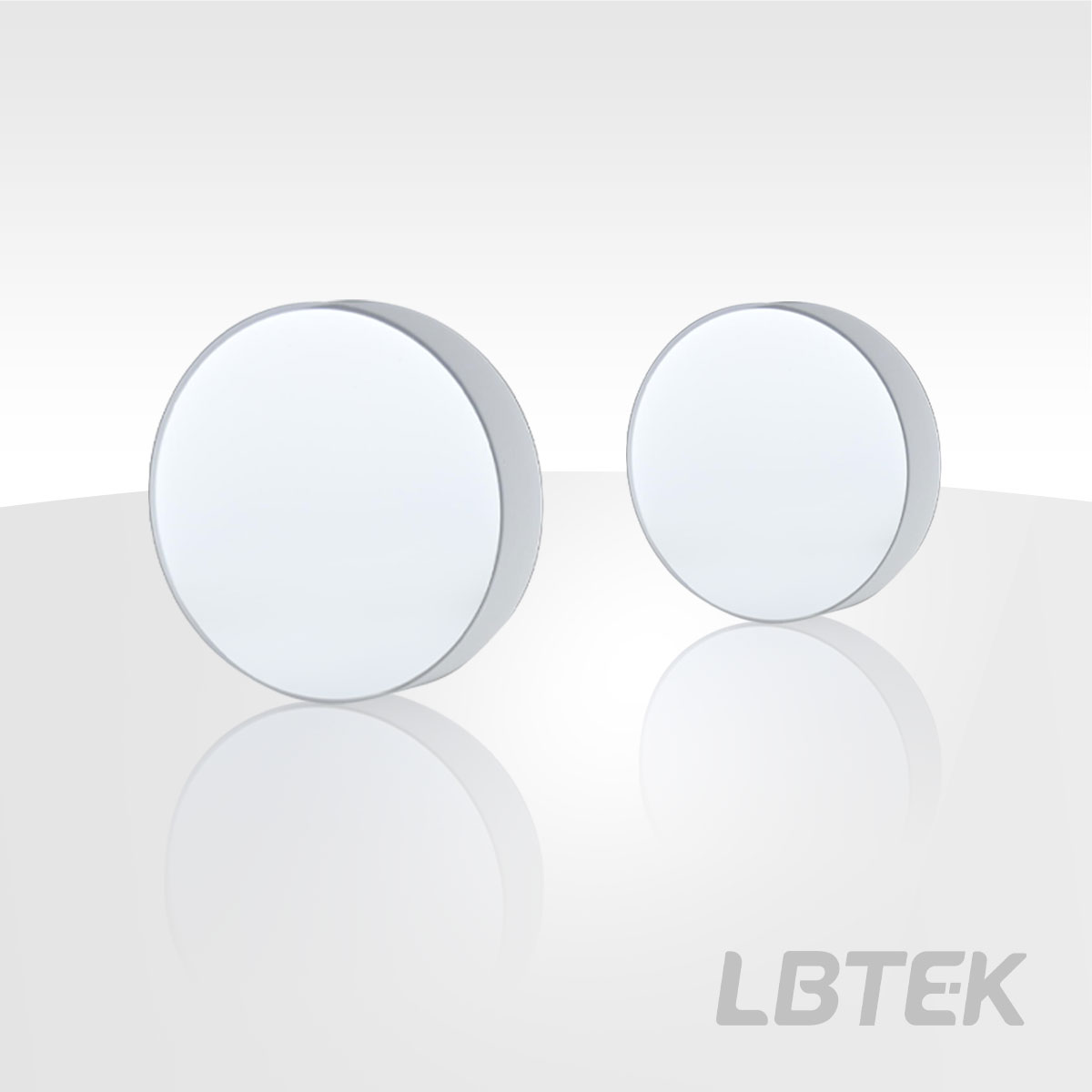

LBTEK超快增强型银膜反射镜的基片材料为紫外熔融石英，其表面的反射膜为介质增强型银膜，能在750 nm-1000 nm范围内提供较高的反射率和较低的群延迟色散，可适用于飞秒脉冲激光领域。LBTEK提供两种尺寸：φ12.7 mm和φ25.4 mm可选。我们的反射镜均精细加工，严格管控质量，保证LBTEK以合理的价格为用户提供高质量的反射镜产品。LBTEK还提供多种定制服务，请联系LBTEK技术支持。

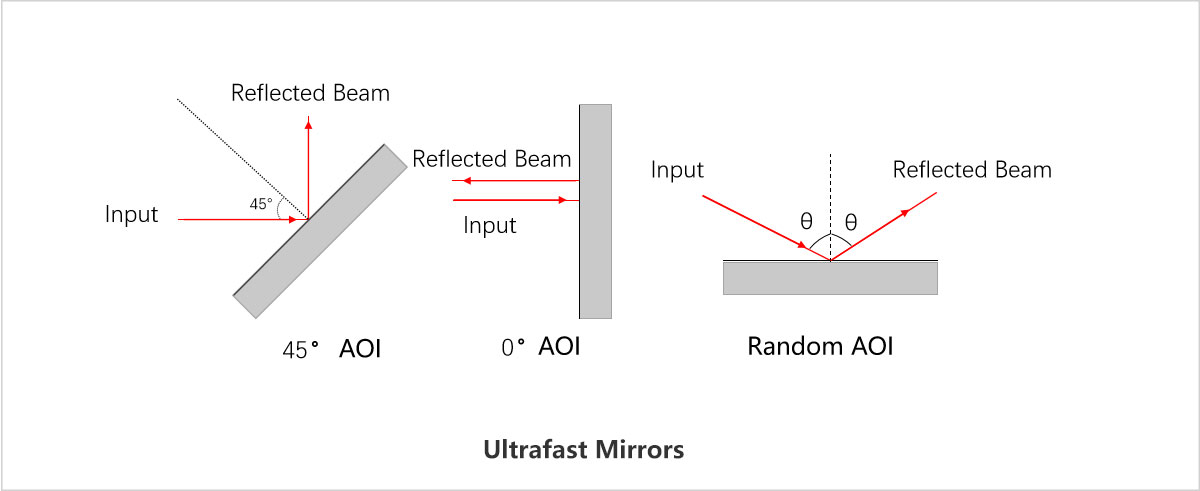

示意图
产品属性
工作波长750 nm-1000 nm
光学元件材质紫外熔融石英
直径12.7 mm，25.4 mm
直径公差+0.0/-0.1 mm
厚度6.0 mm
厚度公差±0.2 mm
通光孔径90% CA

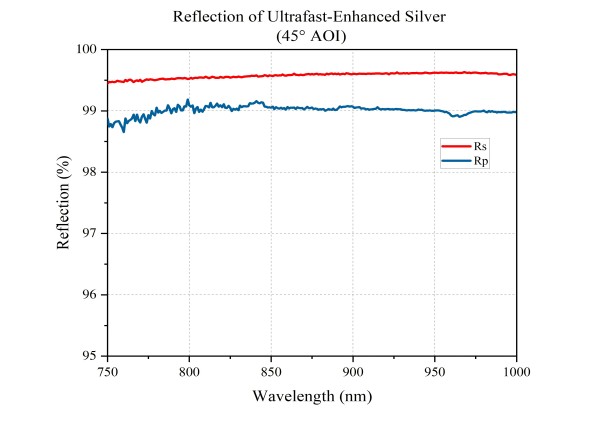

反射率Rs＞99%，Rp＞98.5%@750 nm-1100 nm，AOI=45°
表面光洁度（划痕/麻点）40/20（S/D）
表面平行度<3 arcmin
超快增强型银膜反射镜
- 波长范围从750 nm-1000 nm
- 可用于光路偏转
- 适用于飞秒脉冲激光领域
LBTEK超快增强型银膜反射镜可用于光路偏转，基底材质所使用的紫外熔融石英具有更低的热膨胀系数和更高的热稳定性，其表面的反射膜为介质增强型银膜，能在750 nm-1000 nm范围内提供较高的反射率和较低的群延迟色散，可适用于飞秒脉冲激光领域。同时LBTEK超快增强型银膜反射镜满足光束从45°入射，反射率高达98%以上
LBTEK 超快增强型银膜反射镜安装在反射镜架中
产品型号 | 直径 | 工作波长 | 平面平整度（@633 nm） | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|
| UFPM10-AG-B | 25.4 mm | 750 nm-1000 nm | λ/10 | ¥786.00 | 当天 | 加入购物车 | ||
| UFPM05-AG-B | 12.7 mm | 750 nm-1000 nm | λ/10 | ¥495.00 | 当天 | 加入购物车 |
