产品说明
- 实验装置高集成度
- 泵浦源、增益介质、谐振腔及输出激光全要素可见
针对传统激光原理教学实验中，过程不可见、原理抽象、实操门槛高、核心知识点难以直观验证的痛点，本装置采用全可见光波段光路设计，实现了泵浦光注入、增益介质粒子数反转、谐振腔激光振荡、基模/高阶模输出全流程的可视化，帮助用户快速建立激光产生与传输的核心物理概念，同时完成激光原理核心知识点的量化实验验证与光学装调实训。

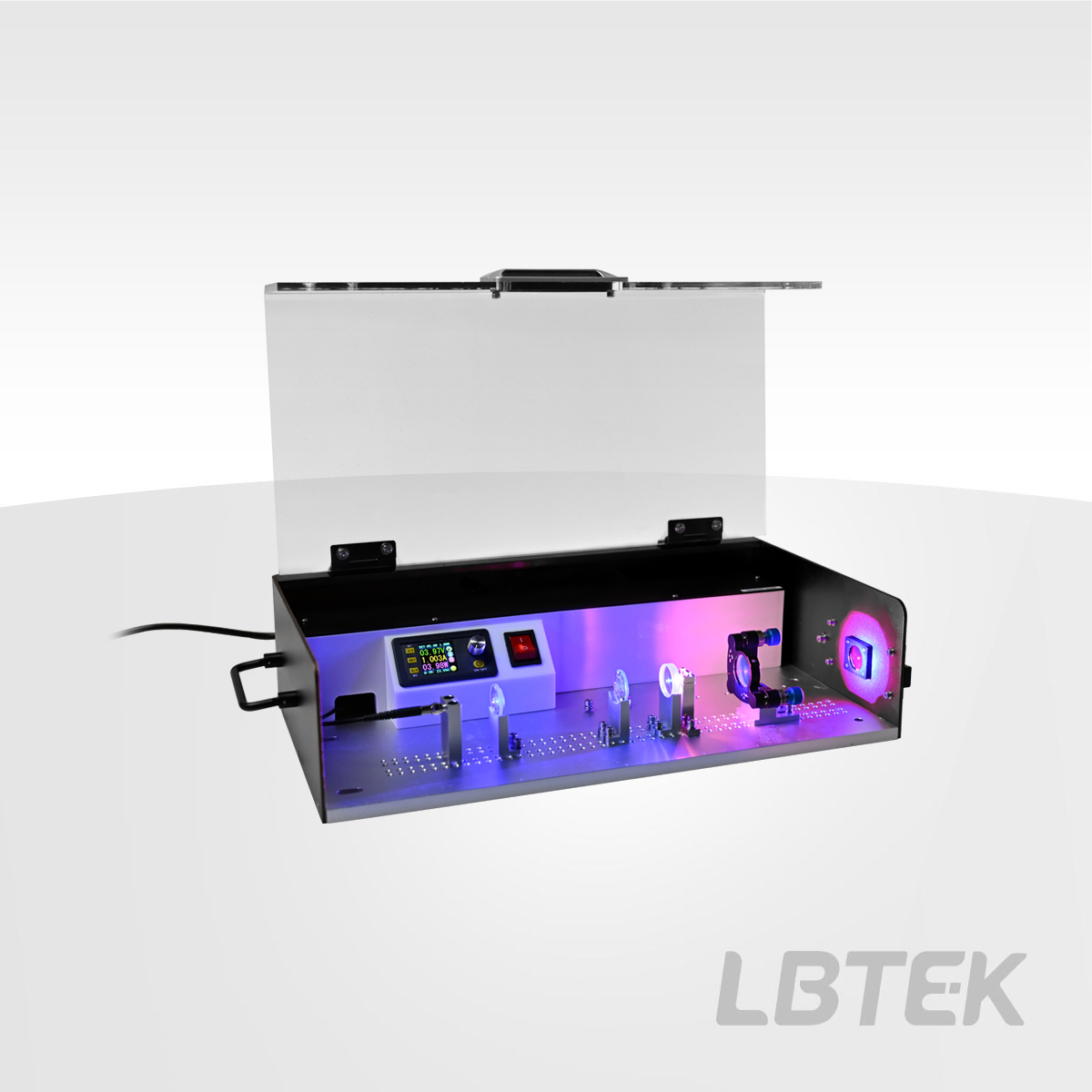

可视化激光原理实验装置
- 激光功率与泵浦光功率对标关系测量
- 谐振腔腔镜间距调节与稳定范围验证
- 激光模式调节与模式特征观测
- 激光发散角与光斑大小测量
实验装置采用蓝光泵浦 Pr:YLF 晶体的全固态可见光激光实验平台。核心采用445 nm蓝光泵浦，640 nm红光输出的全可见光波段的设计，实现泵浦源、增益介质、谐振腔、输出激光等激光产生核心要素的全可视化呈现。装置突破传统激光实验仪“黑箱”式设计局限，将抽象的激光受激辐射、谐振腔振荡、高斯光束传输等原理转化为可直观观测、可手动调控、可量化测量的物理过程，同时配套标准化的光学装调流程与精密调节机构，兼顾教学原理验证与光学工程实操训练

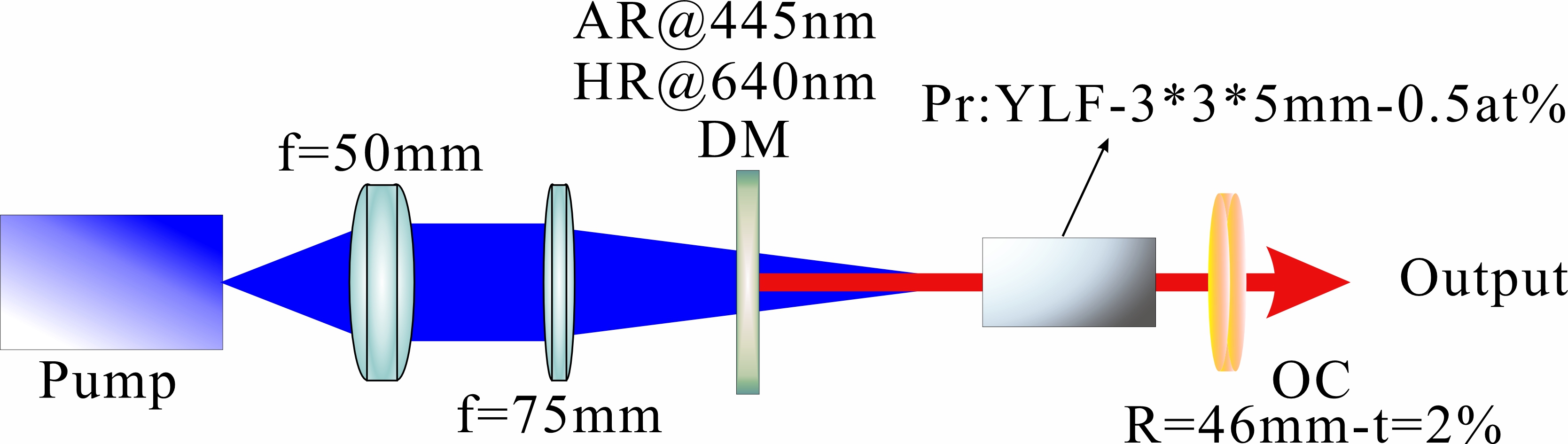

可视化激光原理装置光路示意图
产品型号 | 泵浦光波长 | 晶体材质 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
 | LB-EDULS 新品 | 445 nm | Pr:YLF固体 | ¥49,684.00 | 联系客服 | 加入购物车 |
