产品说明
- 光学材质：Si（硅）
- 工作波长：1.2 μm-8.0 μm
LBTEK提供硅（Si）精密窗口片，硅材料具有高的热传导率和低的密度，其在9微米波长处有较强的吸收，不适合用于二氧化碳激光透射应用。LBTEK还可提供特殊尺寸，膜系的定制服务，如有需求，请联系技术支持。

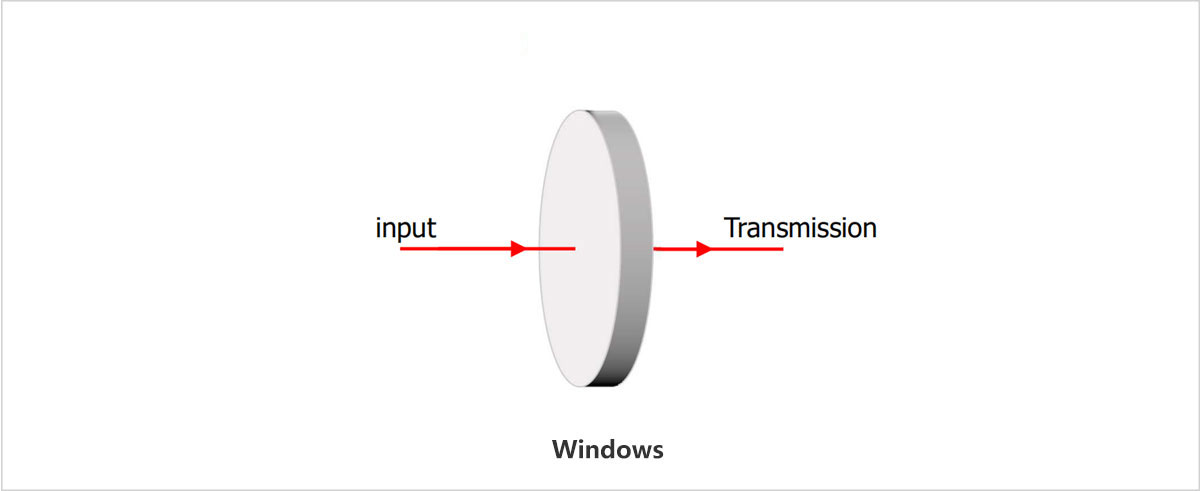

示意图
产品属性
光学元件材质Si
工作波长1.2 μm -8.0 μm
表面平整度（@633 nm）λ/2
表面光洁度（划痕/麻点）40/20
通光孔径90% CA
表面平行度≤2 arcmin
硅窗口片，未镀膜，1.2 μm-8.0 μm
- 光学材质：硅（Si）
- 工作波长：1.2 μm-8.0 μm
硅窗口片在中红外波段具有很高的透过率。具有较高的热传导率。LBTEK所有圆形窗口片均可安装于LBTEK标准透镜套筒、固定式透镜镜架以及各类同轴安装板上。客户可针对不同应用场景选择最佳安装方式。
LBTEK窗口片安装于同轴板中
产品型号 | 光学元件材质 | 直径 | 厚度 | 通光孔径 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|---|
| OW2-Si | Si | 25.4 mm | 5.0 mm | 90% CA | ¥911.00 | 当天 | 加入购物车 | ||
| OW1-Si | Si | 12.7 mm | 3.0 mm | 90% CA | ¥722.00 | 当天 | 加入购物车 |
