产品说明
- 光学材质：紫外熔融石英
- 工作波长：1100 nm-1650 nm

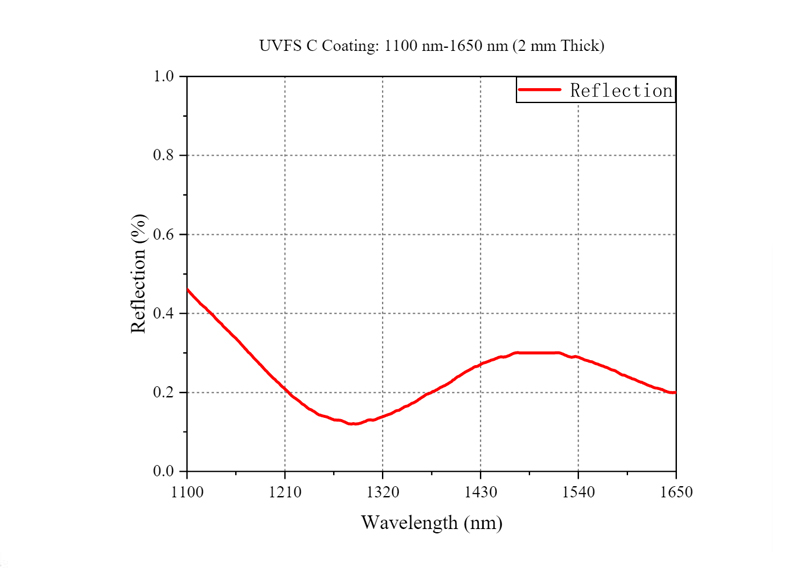

LBTEK提供紫外熔融石英精密窗口片，其从紫外到近红外光波段具有出色的透射性能，详情见透过率曲线。
LBTEK提供未镀膜，以及250 nm- 400 nm，400 nm-700 nm，700 nm-1100 nm，1100 nm-1650 nm增透膜窗口片，不同厚度可选，还可提供特殊尺寸，膜系的定制服务，如有需求，请联系技术支持。
示意图
产品属性
光学元件材质紫外熔融石英
工作波长1100 nm -1650 nm
表面平整度（@633 nm）λ/10
表面光洁度（划痕/麻点）20/10
通光孔径90% CA
表面平行度≤5 arcsec
紫外熔融石英窗口片，增透膜：1100 nm-1650 nm
- 光学材质：紫外熔融石英
- 工作波长：1100 nm-1650 nm
紫外熔融石英窗口片从紫外到近红外波段具有很高的透过率。LBTEK所有圆形窗口片均可安装于LBTEK标准透镜套筒、固定式透镜镜架以及各类同轴安装板上。客户可针对不同应用场景选择最佳安装方式。
LBTEK窗口片安装于同轴板中
产品型号 | 光学元件材质 | 直径 | 厚度 | 通光孔径 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|---|
| OW22-C | 紫外熔融石英 | 25.4 mm | 5.0 mm | 90% CA | ¥774.00 | 当天 | 加入购物车 | ||
| OW21-C | 紫外熔融石英 | 12.7 mm | 3.0 mm | 90% CA | ¥695.00 | 4周 | 加入购物车 |
