产品说明
- 常用于夹持圆柱形物体
- 底座可做一维的俯仰调节
- 可在底座面板上根据M4螺纹孔位任意调整两管夹之间的距离（25 mm-100 mm）
LBTEK可调式管类夹持器常用于圆柱形物体，如激光器等。通过调节手拧螺丝可改变直径大小，手拧螺丝的软质接头可保证圆柱形物体的外表面不受损伤，前后两个管夹与圆柱形物体通过三点接触夹紧，还可夹持非等直径圆柱体。底座可做一维的俯仰调节，调节范围±3°，可用于调整激光器出射方向。
产品属性
材质6061-T6 铝合金
表面处理黑色阳极氧化
俯仰角度范围±3 °
可调式管类夹持器
- 通过调节手拧螺丝可夹持直径25 mm-65 mm的激光器
- 底座可做一维的俯仰调节，调节范围±3°
- 底座面板上具有若干M4、M6螺纹孔
- 管夹可调间距：25 mm-100 mm

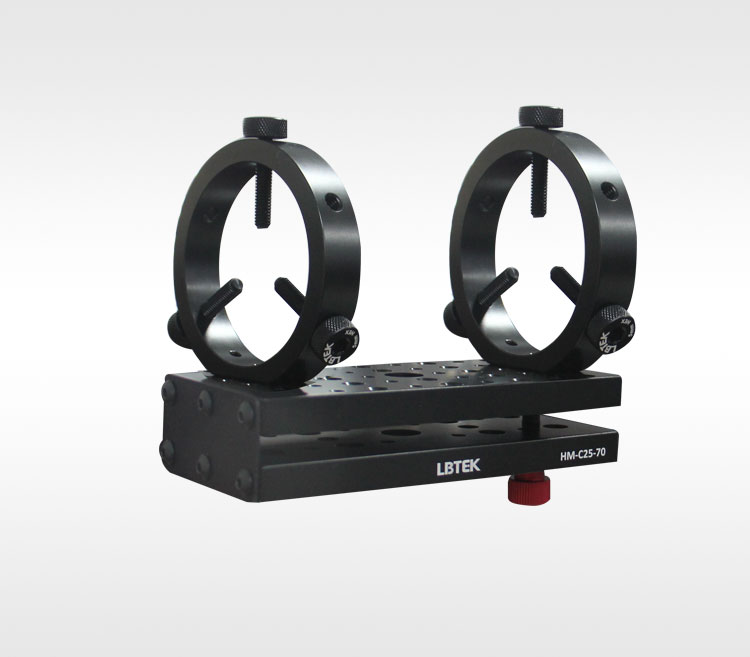

LBTEK激光管夹持器可夹持直径25 mm-65 mm的激光器，底座可做一维的俯仰调节，调节范围±3°。管夹具有三个M4安装孔和5个M6手拧螺丝孔，可转角度安装，可在底座面板上调整两管夹之间位置安装，也可单独作为夹具使用。底座面板上具有若干M4、M6螺纹孔，中心为M6沉头孔，可单独使用或安装在面包板或基座等标准光机械件上。

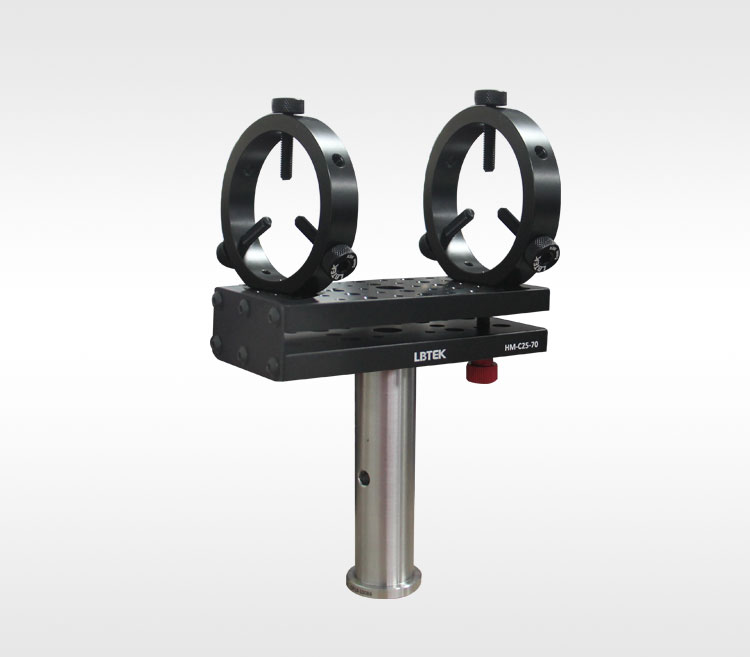

可调式管类夹持器常安装于Ø25 mm带基座光学接杆
产品型号 | 夹持直径 | 可调俯仰/偏摆角度范围 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|

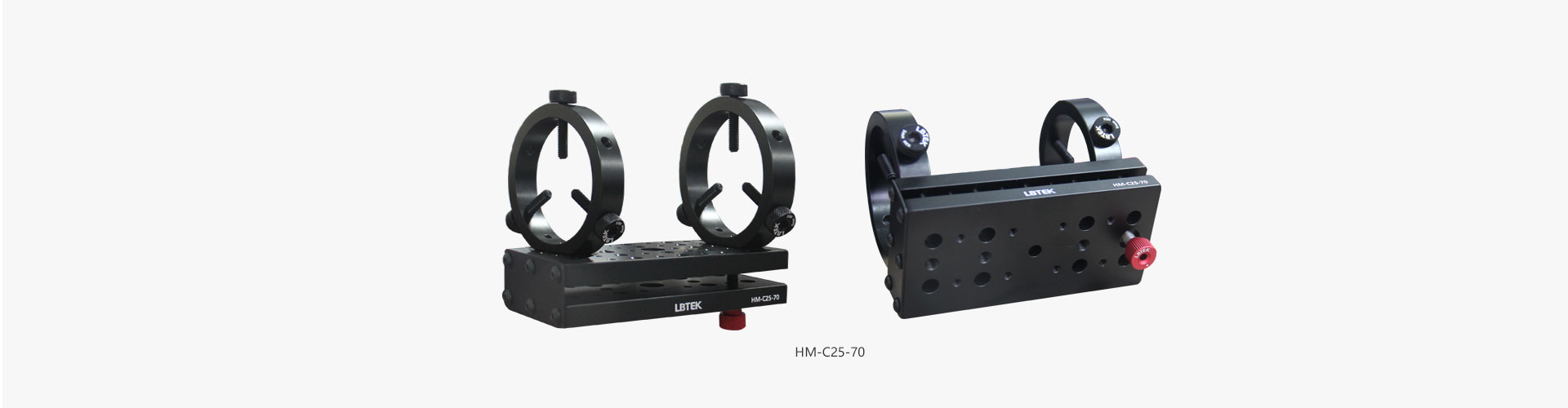

| HM-C25-70 | 25 mm-65 mm | ±3° | ¥679.00 | 当天 | 加入购物车 |
