产品说明
- 常用于安装固定SM05、SM1、SM2系列套筒
- 边缘平滑，节省空间
- 使用侧面锁定螺丝进行固定
- 可均匀分配夹持力，减小被夹持件的变形和损伤

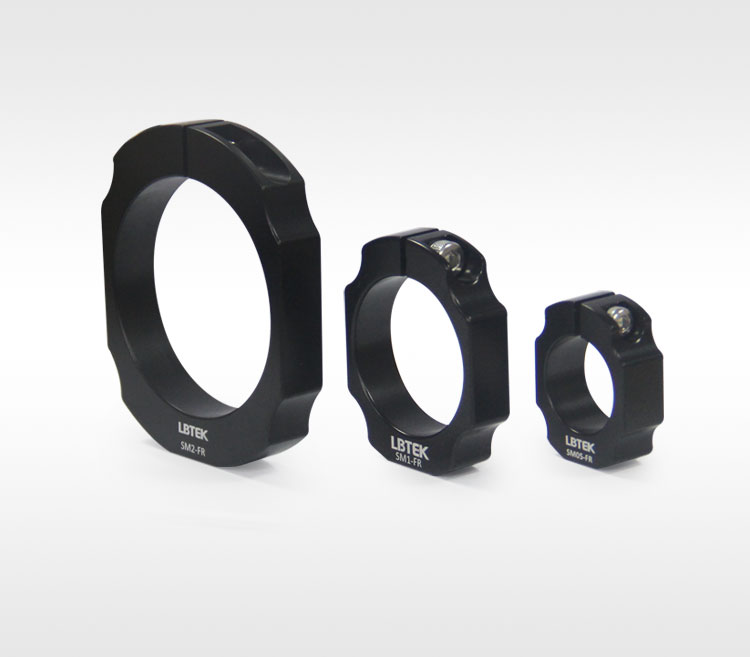

LBTEK 提供的SMX-FR固定式套筒安装架是特别设计用于安装固定SM05、SM1、SM2系列套筒，通过固定式套筒安装架将透镜套筒固定到面包板或光学平台上。安装透镜套筒需要穿过安装架的内环进行安装，使用锁定螺钉使安装架产生弹性变形从而锁住安装件，且安装时不会因为螺丝过长顶伤套筒。同时，购买SMX-FR固定式套筒安装架会附送相应的2.5 mm六角扳手或3.0 mm六角扳手各一支。
产品属性
材质6061-T6铝合金
表面处理黑色阳极氧化
内径尺寸Ø17.9 mm、Ø30.6 mm、Ø56.1 mm
厚度10 mm、10 mm、12.7 mm
光轴中心高15 mm、22 mm、39 mm
底部螺纹孔规格M4
锁定螺钉型号M3、M4
固定式套筒安装架
- 安装固定SM05/SM1/SM2系列套筒
- 边缘平滑，节省空间
- 底部M4螺纹孔可用光学接杆连接

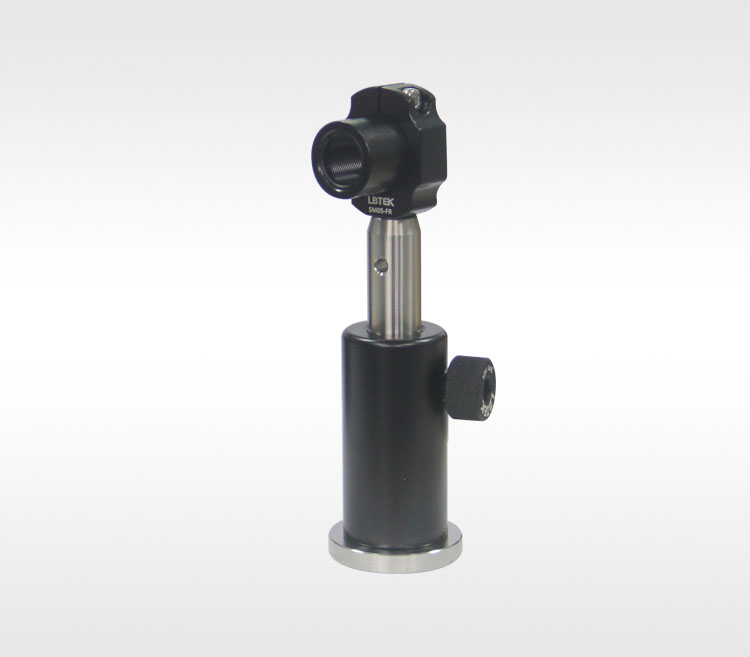

LBTEK固定式套筒安装架，是特别设计用于安装固定SM05/SM1/SM2系列套筒，将透镜套筒固定到面包板或光学平台上。安装架底部带有M4螺纹安装孔，可用Ø12.7 mm不锈钢光学接杆或其他连接件进行支撑。
固定式套筒安装架常用于固定滤光片
产品型号 | 内径尺寸 | 厚度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| SM2-FR | Ø56.1 mm | 12.7 mm | ¥207.00 | 当天 | 加入购物车 | ||
| SM1-FR | Ø30.6 mm | 10 mm | ¥161.00 | 当天 | 加入购物车 | ||
| SM05-FR | Ø17.9 mm | 10 mm | ¥138.00 | 当天 | 加入购物车 |
