产品说明
- 用于安装LBTEK的圆形连续型或阶跃式中性密度滤光片
- 360°旋转，旋转轴可锁定

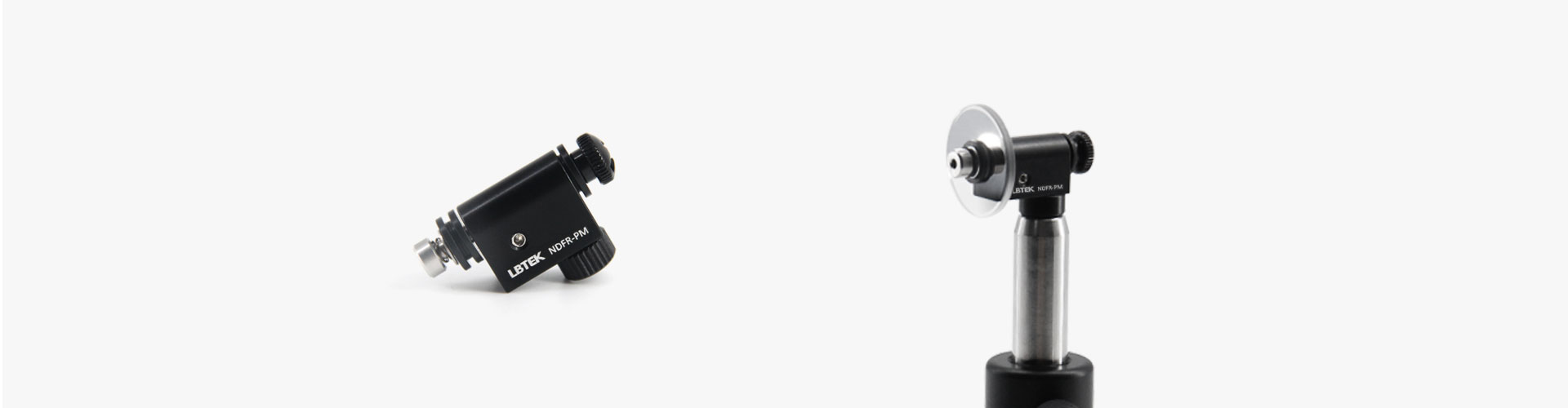

LBTEK中性密度滤光片安装座NDFR-PM可以将任意的圆形连续型或阶跃式ND滤光片安装到旋转轴上，自带M6螺纹孔可与12.7 mm接杆连接。安装座可在自由空间360°旋转滤光片，这种夹持方式在最大程度上减少了对中性密度滤光片的通光孔径的影响。每个安装座附送M6转M4螺纹孔转接件。
产品属性
主体材质6061-T6铝合金
表面处理黑色阳极氧化
可变中性密度滤光片安装座，用于圆形中性密度滤光片
- 主体M6螺纹孔，附带M4螺纹孔转接件
- 适用于中心孔直径Ø7.5 mm的NDFR系列滤光片
- 适用光学元件厚度2 mm

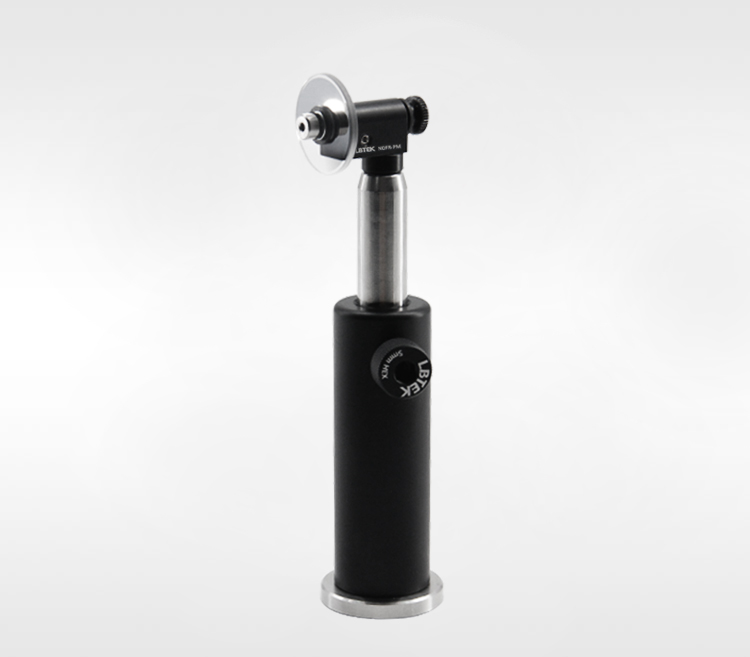

LBTEK中性密度滤光片安装座，可以将中心孔直径Ø7.5 mm的NDFR系列滤光片安装到旋转轴上，安装滤光片时，首先用附送的1.5 mm六角扳手拧紧NDFR-PM侧面的固定螺丝，锁定旋转。用附送的2 mm的六角扳手拆掉银色内六角螺丝，在两个垫片间装入滤光片，然后装回转轮和螺丝组合。请注意按照原来的位置顺序放置平垫片和波形弹簧，并紧固螺栓。附送1.5 mm和2.0 mm六角扳手各1个。

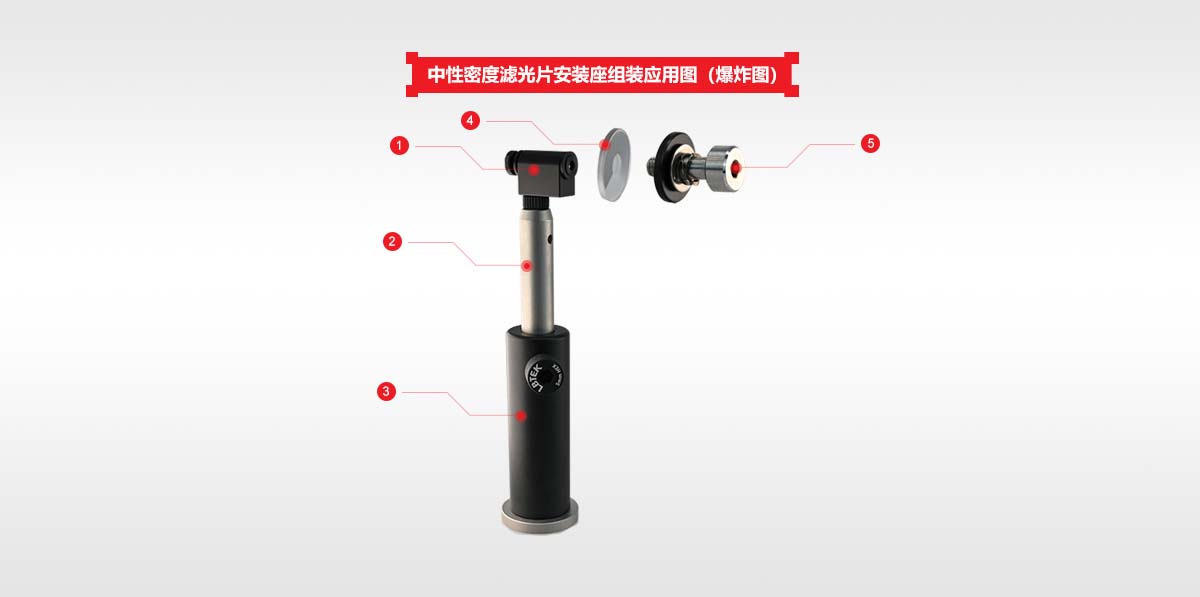

中性密度滤光片安装座组装
产品型号 | 适用光学元件中心孔直径 | 适用光学元件厚度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| NDFR-PM | Ø7.5 mm | 2 mm | ¥401.00 | 当天 | 加入购物车 |
