产品说明
- 光滑的外径
- 光滑的内径，用于固定准直器等圆柱形元件
- 2个紧固螺丝固定被安装件
LBTEK 光壁转接件用于安装圆柱形元件。每个转接件都有1个限位凹槽，被夹持件通过侧面的2个紧固螺丝和限位凹槽中的双线接触固定安装，从而避免被夹持件转动和滑动，保证夹持件中心与光轴对准。两个紧固螺丝可以用2.0 mm六角扳手调节锁紧。
产品属性
表面处理黑色阳极氧化

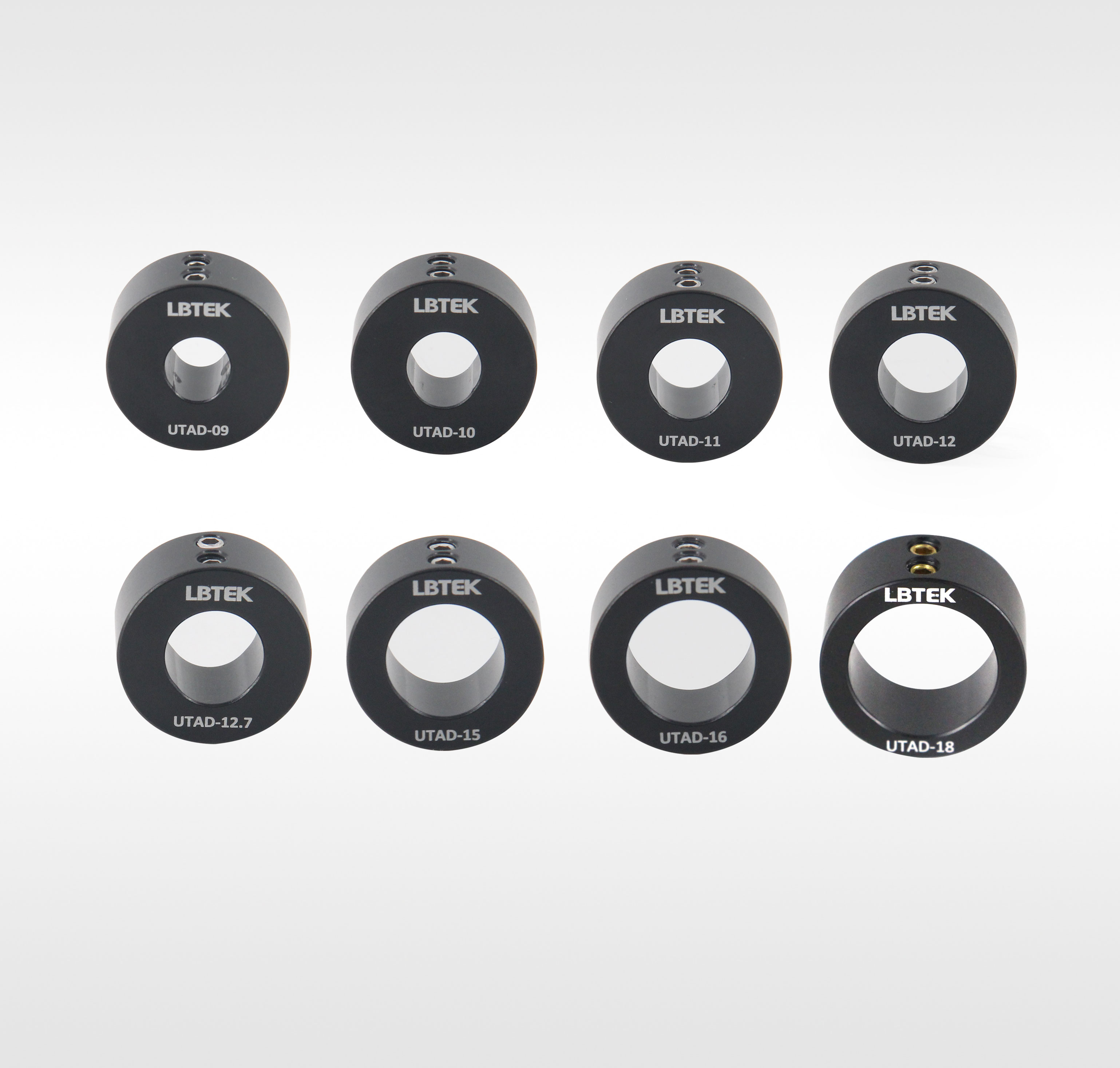

光壁转接件
- 光滑的Ø25.4 mm外径
- 光滑的内径，紧固螺丝固定
LBTEK 光壁转接件适用于安装Ø9 mm，Ø10 mm，Ø11 mm，Ø12 mm，Ø12.7 mm，Ø15 mm，Ø16 mm和Ø18 mm的圆柱形元件，可安装在带Ø25.4 mm光壁孔的调整架、同轴系统等光机组件中。

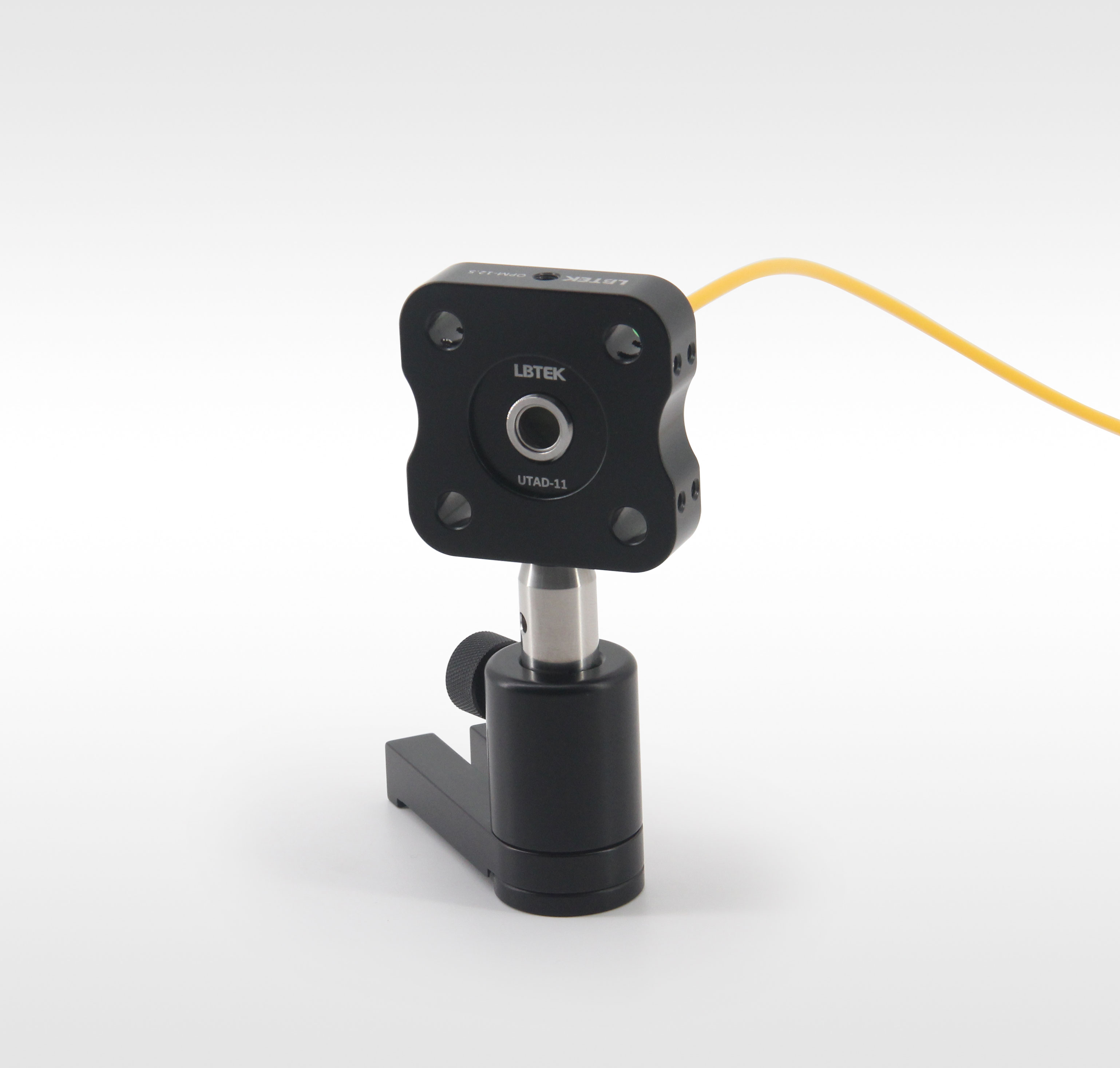

光壁转接件可将圆柱形元件转接至带光壁孔的光机械件中

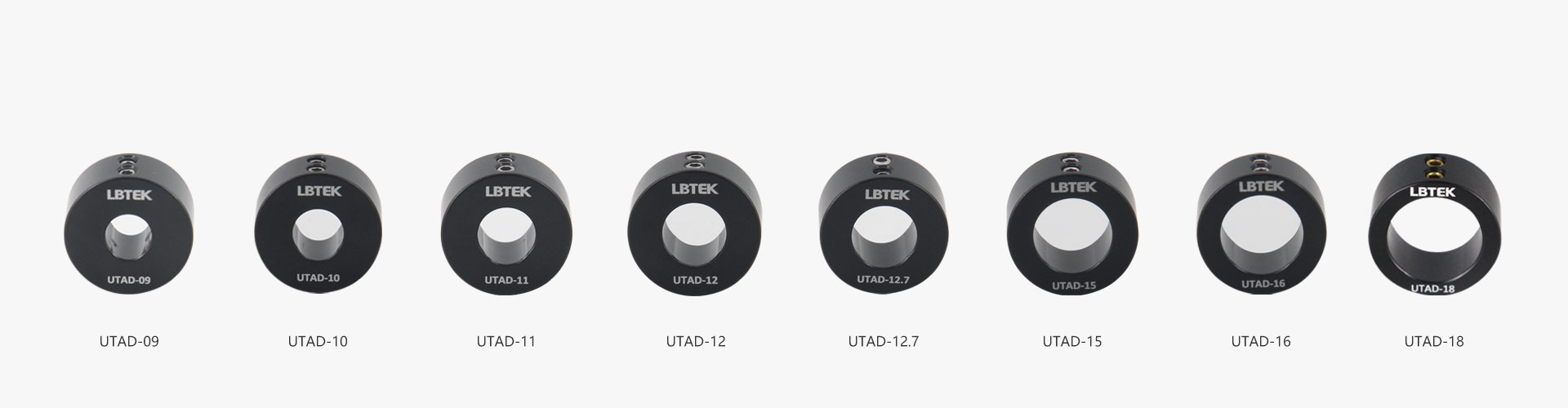

产品型号 | 内径 | 外径 | 长度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|
| UTAD-19.5 | Ø19.5 mm | Ø25.4 mm | 6 mm | ¥110.00 | 当天 | 加入购物车 | ||
| UTAD-18 | Ø18 mm | Ø25.4 mm | 12.2 mm | ¥111.00 | 当天 | 加入购物车 | ||
| UTAD-16 | Ø16 mm | Ø25.4 mm | 12.2 mm | ¥113.00 | 当天 | 加入购物车 | ||
| UTAD-15 | Ø15 mm | Ø25.4 mm | 12.2 mm | ¥112.00 | 当天 | 加入购物车 | ||
| UTAD-12.7 | Ø12.7 mm | Ø25.4 mm | 12.2 mm | ¥112.00 | 当天 | 加入购物车 | ||
| UTAD-12 | Ø12 mm | Ø25.4 mm | 12.2 mm | ¥112.00 | 当天 | 加入购物车 | ||
| UTAD-11 | Ø11 mm | Ø25.4 mm | 12.2 mm | ¥112.00 | 当天 | 加入购物车 | ||
| UTAD-10 | Ø10 mm | Ø25.4 mm | 12.2 mm | ¥113.00 | 当天 | 加入购物车 | ||
| UTAD-09 | Ø9 mm | Ø25.4 mm | 12.2 mm | ¥107.00 | 当天 | 加入购物车 |
