参数规格
反馈
产品说明
- 铝制接合板，可将铝制激光安全屏拼接成连续屏障
- 平面拼接和转角拼接可选
LBTEK 提供的接合板可将激光安全屏LSSL1与LSSL2、LSSL3与LSSL4接合在一起，形成连续的屏障。两种接合板都包括一块前面板和一块背面板，分别装在待接合安全屏的正面和背面。接合板与安全屏重叠约6 mm，通过两个M6圆柱头螺钉将两板紧固接合在一起，安全屏夹在两个接合板之间，从而挡住接缝，保持激光使用安全。
产品属性
材质铝合金
表面处理黑色阳极氧化

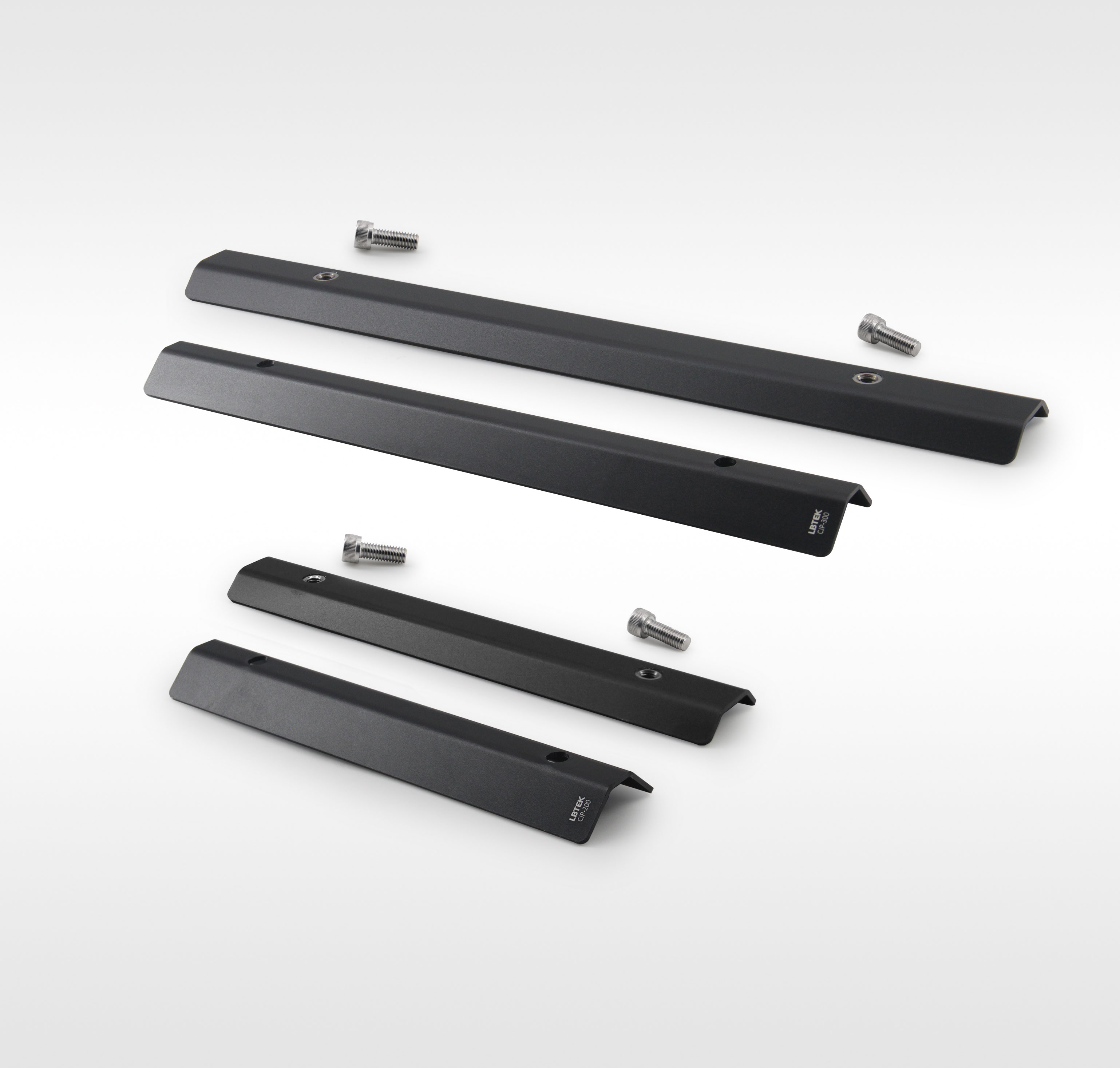

挡板90°转角拼接接合板
- 铝合金材质
- 铆接螺母，M6螺钉固定
LBTEK 挡板平面接合板，适用于高度为200 mm、300 mm、305 mm的激光安全屏来组成90°直角拼接。

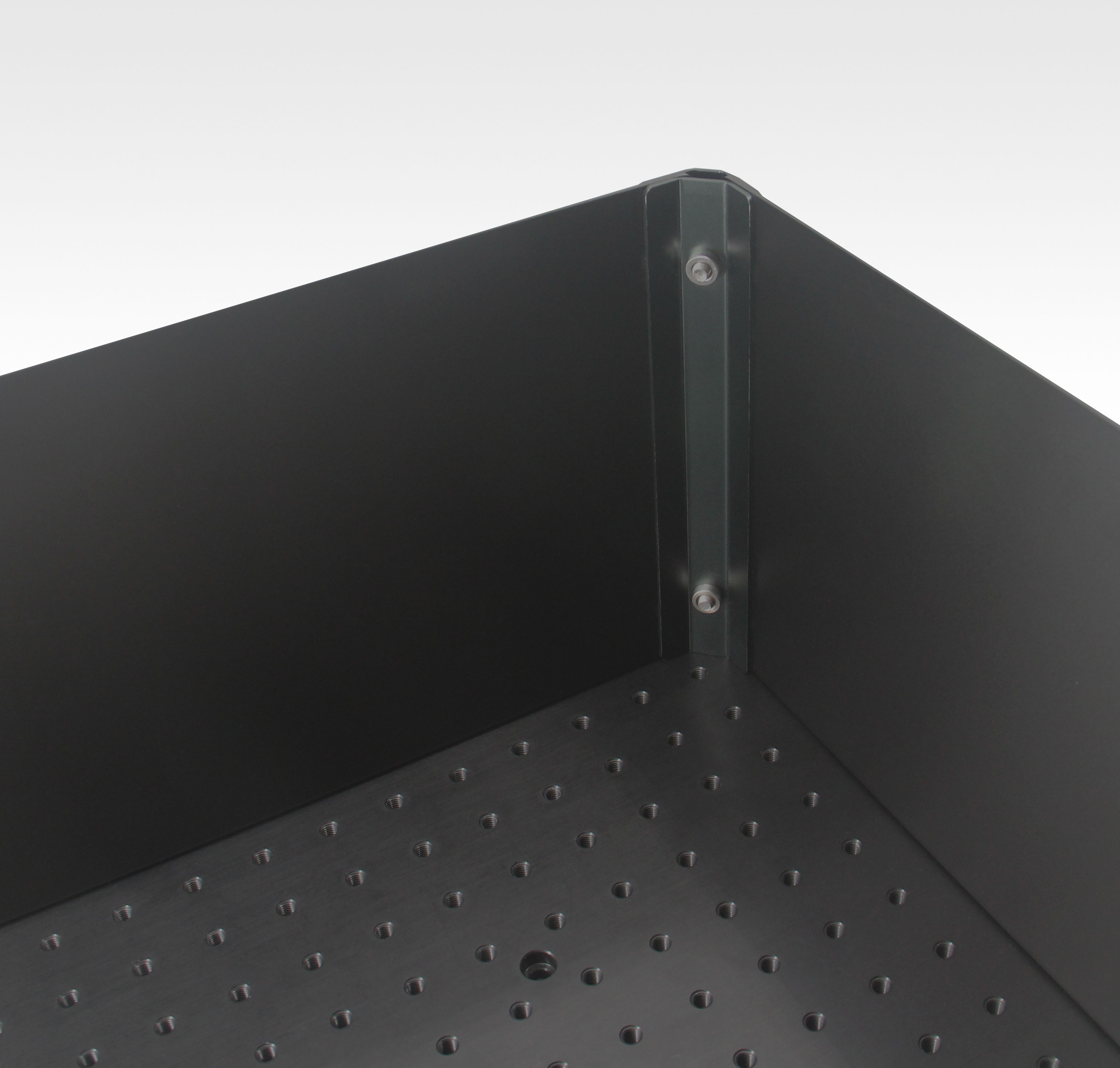

CJP-200将两块LSSL3接合

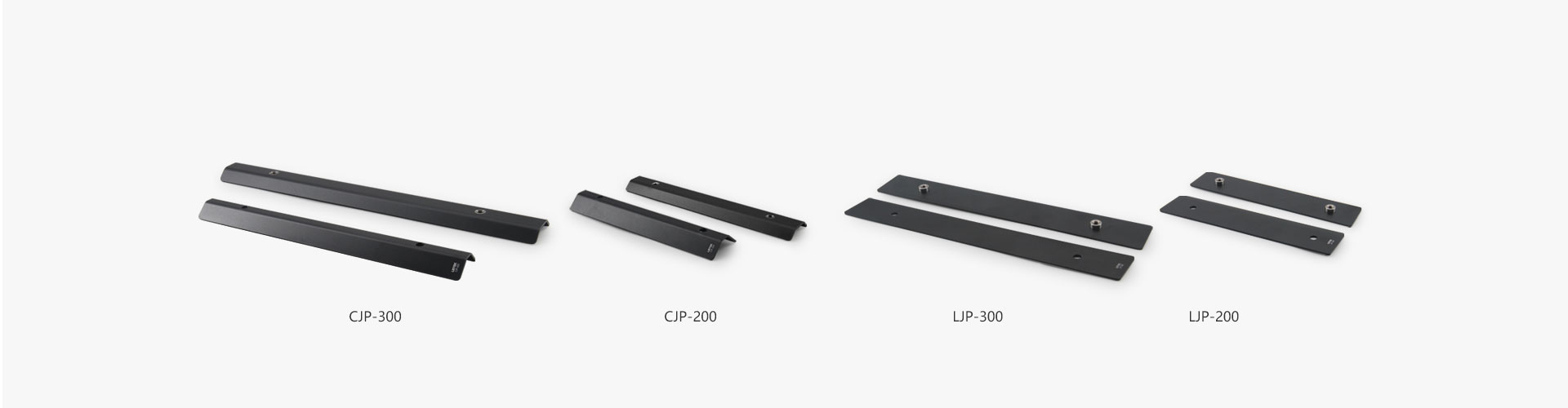

产品型号 | 高度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|
| CJP-300 | 300 mm | ¥322.00 | 当天 | 加入购物车 | ||
| CJP-200 | 200 mm | ¥306.00 | 当天 | 加入购物车 |

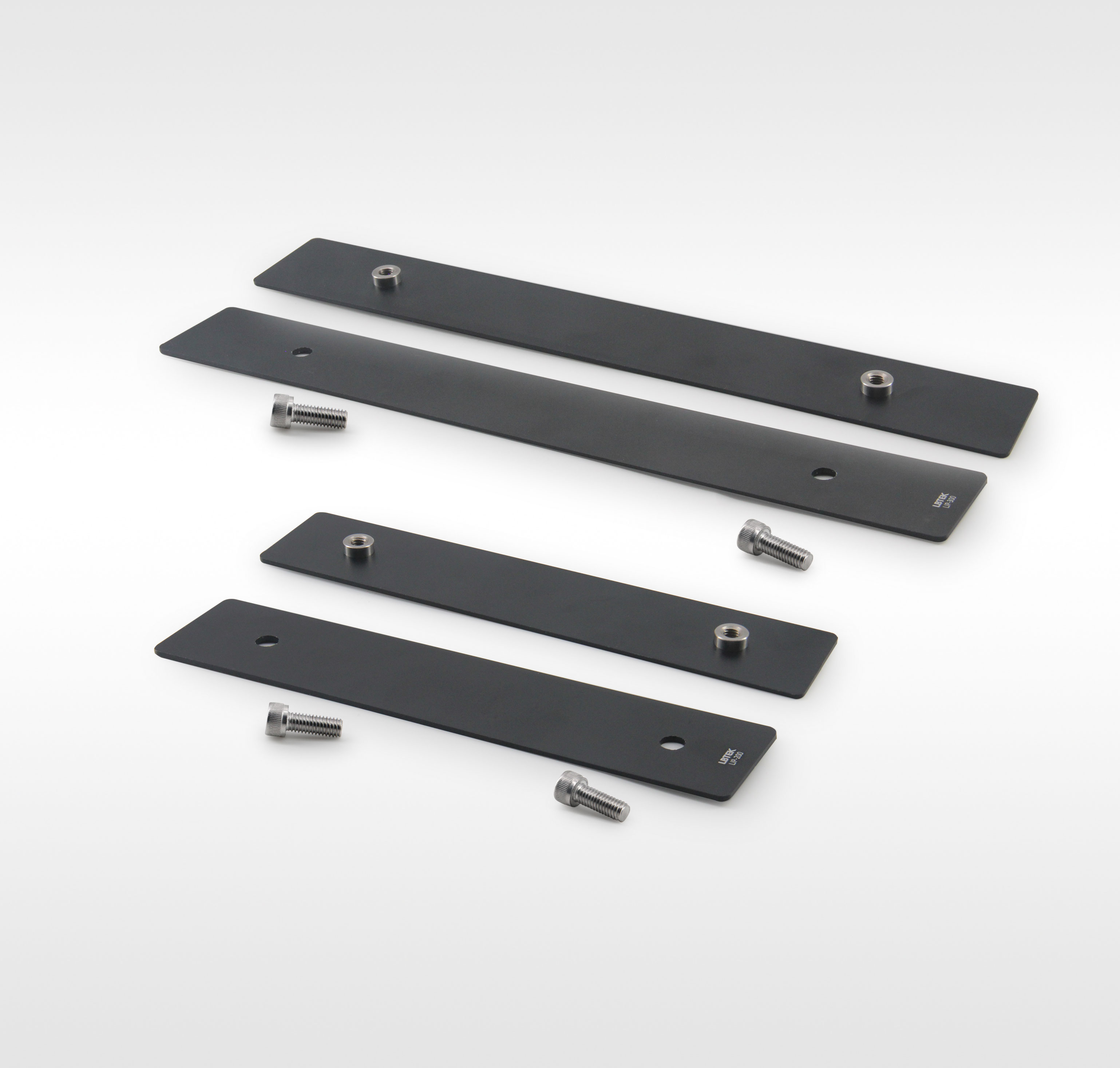

挡板180°平面拼接接合板
- 铝合金材质
- 铆接螺母，M6螺钉固定
LBTEK 挡板平面接合板，适用于高度为200 mm、300 mm、305 mm的激光安全屏来组成平面拼接。

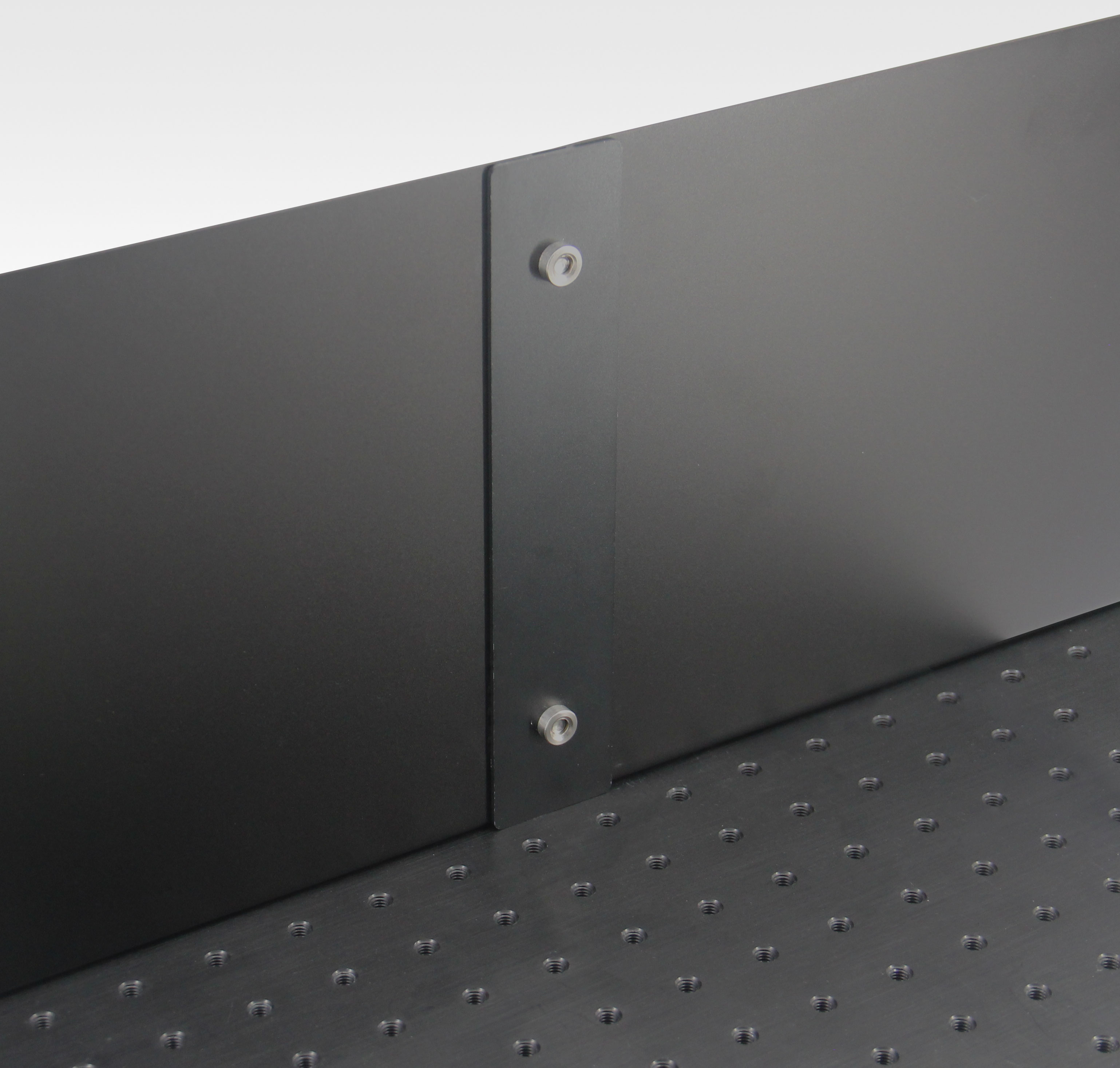

LJP-200将两块LSSL3接合
产品型号 | 高度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|
| LJP-300 | 300 mm | ¥294.00 | 当天 | 加入购物车 | ||
| LJP-200 | 200 mm | ¥266.00 | 当天 | 加入购物车 |
