参数规格

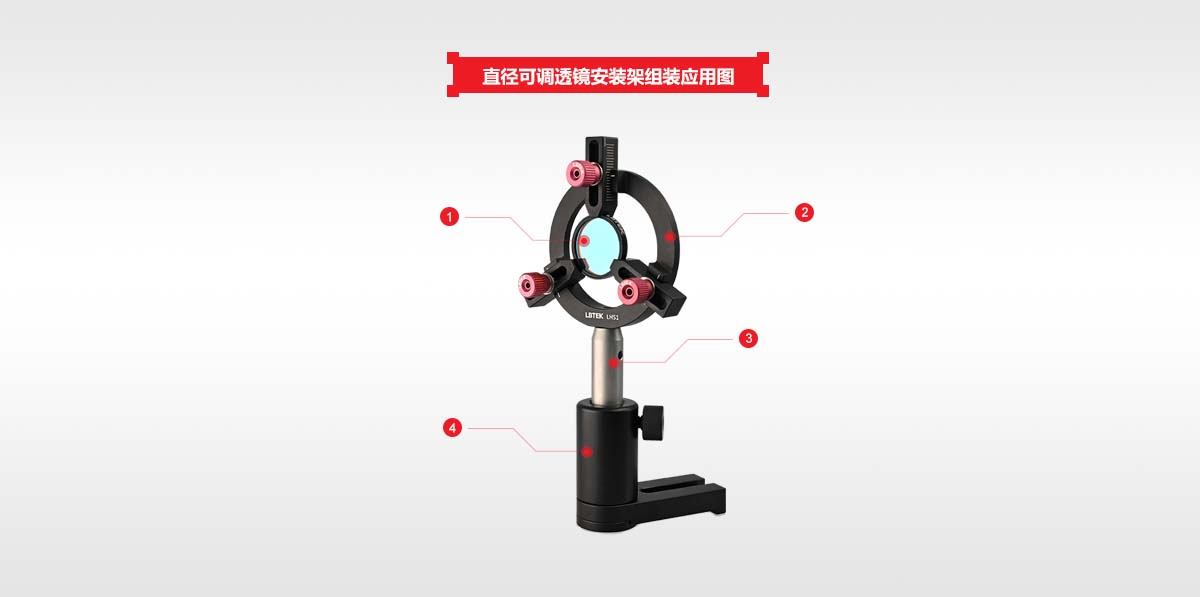

组装
反馈
产品说明
- 用于安装非标准尺寸的光学元件
- 用于自由空间
- 夹持直径可调

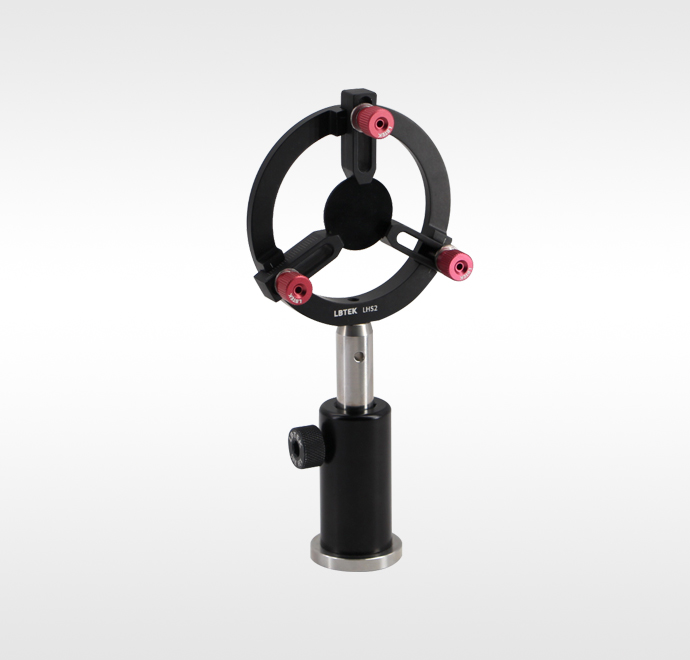

LBTEK 直径可调透镜安装架用于安装非标准尺寸的光学元件。聚甲醛夹臂一侧为V型槽，一侧平坦可正反两用。夹持的光学元件或物体可手动对准，拧紧旋钮可将夹臂锁紧。所有安装架底部带有M4螺纹孔用于安装直径12.7 mm接杆。
产品属性
材质6061-T6铝合金主体＋黑色聚甲醛夹臂
表面处理黑色阳极氧化
底部螺纹孔规格M4

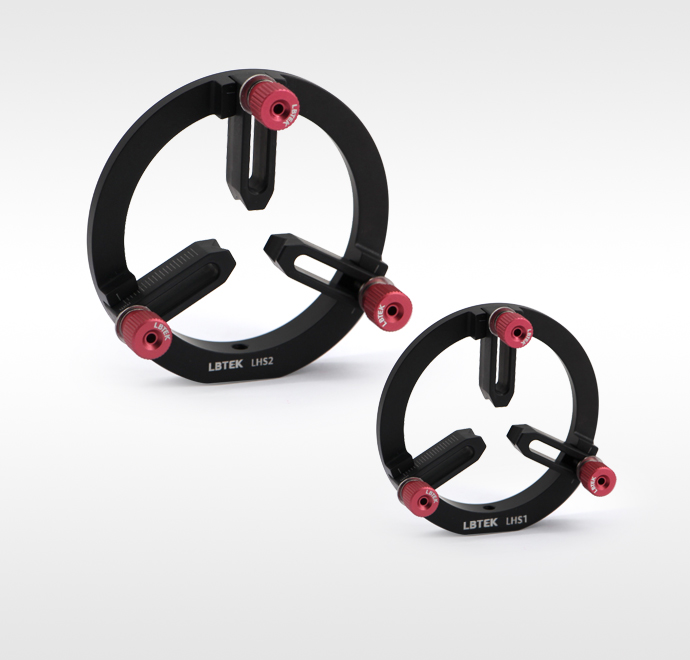

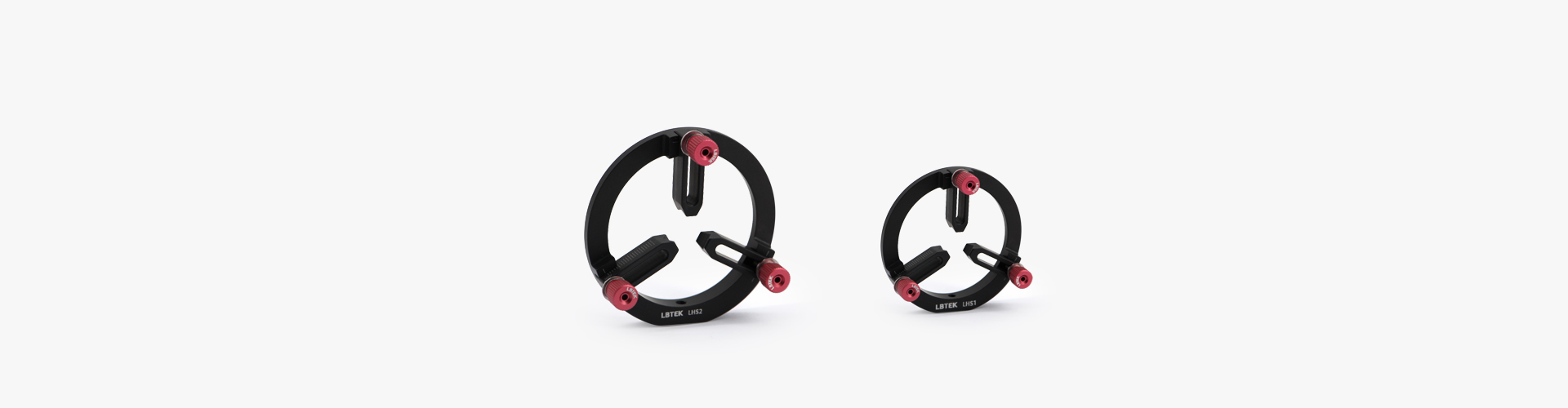

可调透镜安装架
- LHS1可调安装直径范围7.5 mm~45 mm
- LHS2可调安装直径范围19 mm~57.5 mm
LBTEK 可调透镜安装架用于安装非标准尺寸的光学元件。聚甲醛夹臂一侧V型槽，一侧平坦，正反均可使用，可对不同直径光学元件进行调节安装，夹臂上带有刻度为1 mm与5 mm的参考线，用于记住安装位置，便于重复定位。底部带M4螺纹孔用于安装直径12.7 mm接杆。
可调节光学元件中心位置
产品型号 | 适用光学元件直径 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|
| LHS2 | 19 mm~57.5 mm | ¥384.00 | 3周 | 加入购物车 | ||
| LHS1 | 7.5 mm~45 mm | ¥334.00 | 当天 | 加入购物车 |
