产品说明
- 快拆型挠性夹紧机制实现无需拆装同轴杆即可安装
- 从顶部完成同轴杆的挠性锁紧，便于操作
- 兼容60 mm同轴系统
LBTEK的60 mm同轴旋转快拆安装架用于在60 mm同轴系统中360°手动旋转光学元件，可以安装Ø50.8 mm、最大厚度为8.5 mm的光学元件。通过挠性机制可以在不拆卸同轴杆的情况下快速安装。通过顶部红色旋钮可通过滚花或5 mm内六角扳手旋转，调到位置后可进行锁紧。
产品属性
材质6061-T6铝合金
兼容系统60 mm同轴
表面处理黑色阳极氧化

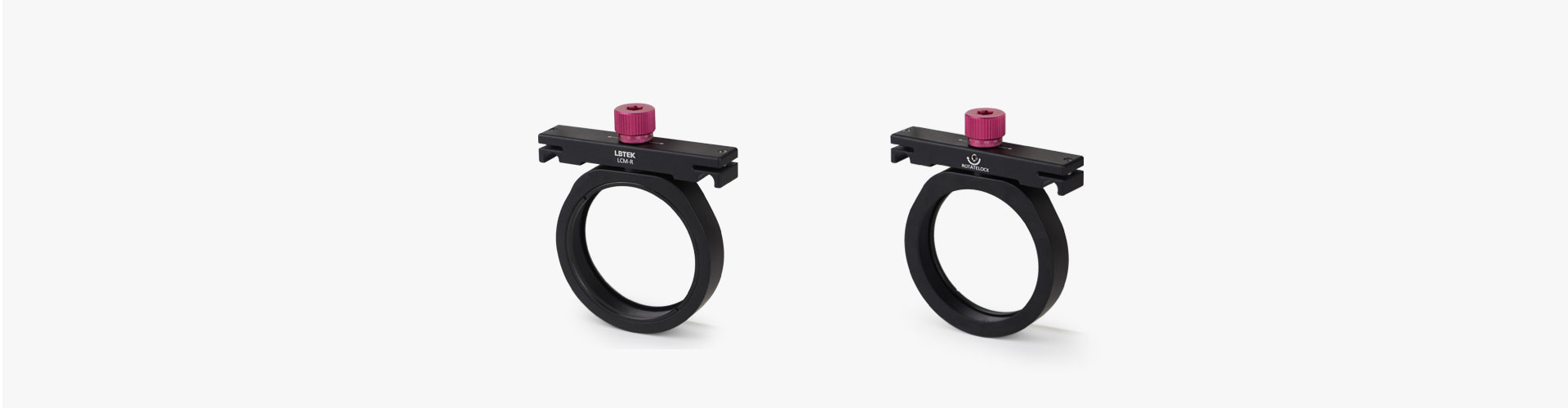

60 mm同轴旋转快拆型安装架
- 兼容60 mm同轴系统
- 与光轴夹角360°可调
- 从顶部完成同轴杆的挠性锁紧，便于操作
- 安装光学元件直径50.8 mm

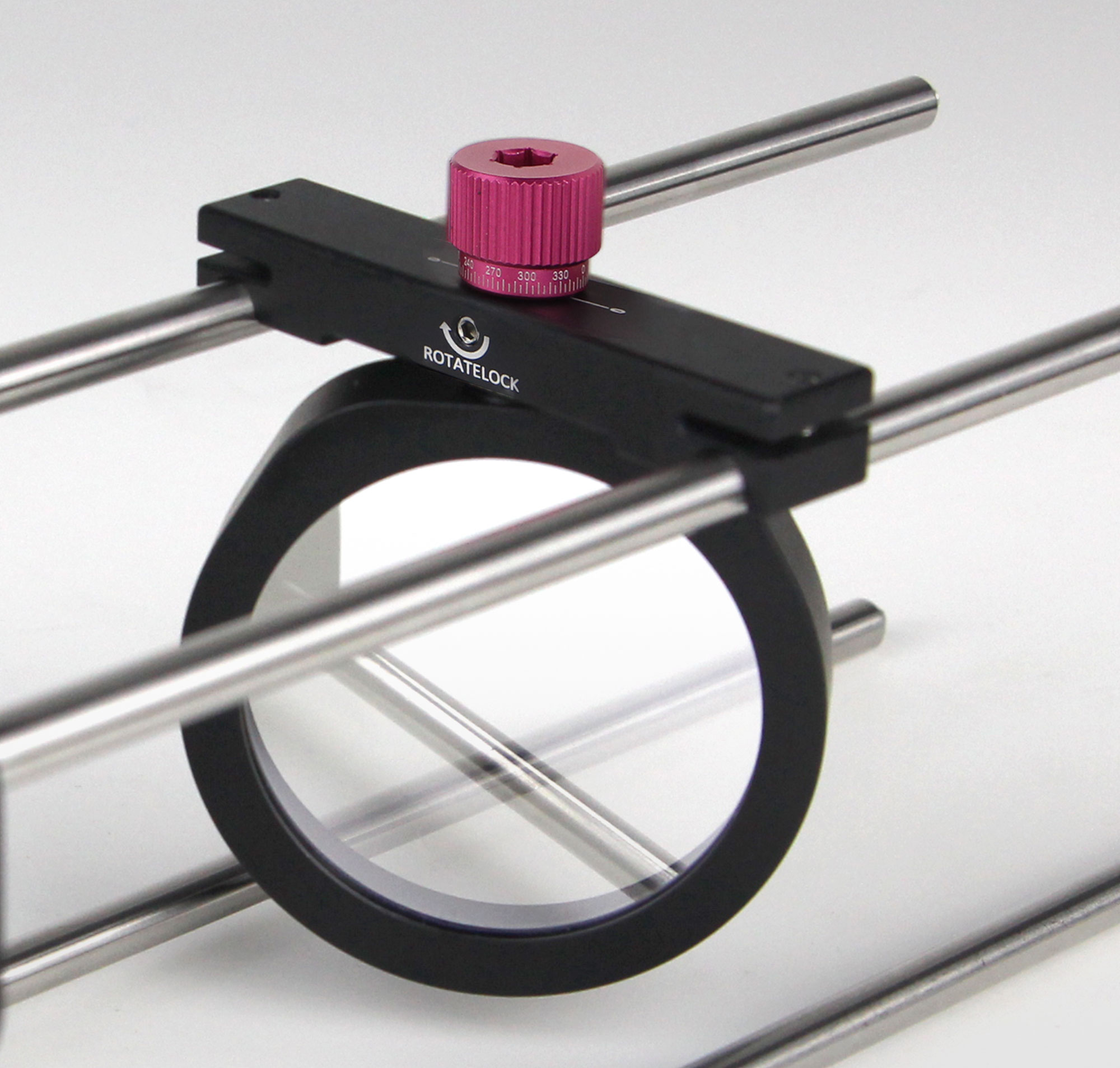

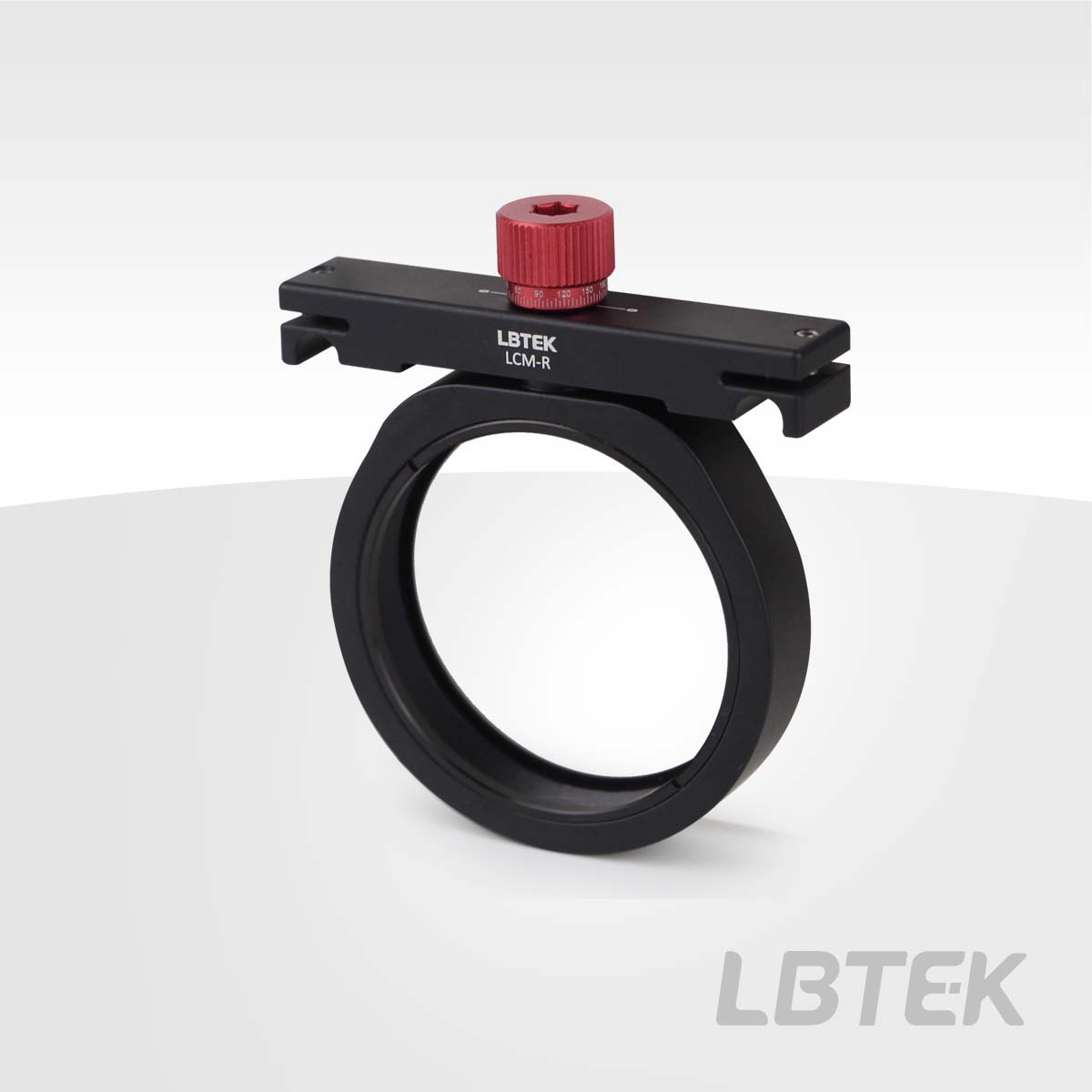

LBTEK的LCM-R安装架用于在60 mm同轴系统中360°手动旋转光学元件，使用1个附带卡环可以安装直接50.8 mm、最大厚度为8.5 mm的光学元件。LCM-R利用挠性压块和M3的锁紧螺钉，可以在不拆卸同轴杆的情况下快速安装。松开左右两边的M3锁紧螺钉，可从同轴杆中快速卡入/拔出。顶部红色旋钮可通过滚花或5 mm内六角扳手旋转，侧面的M4螺丝用于锁紧旋转。红色旋钮带5°间隔刻线，提供角度指示。

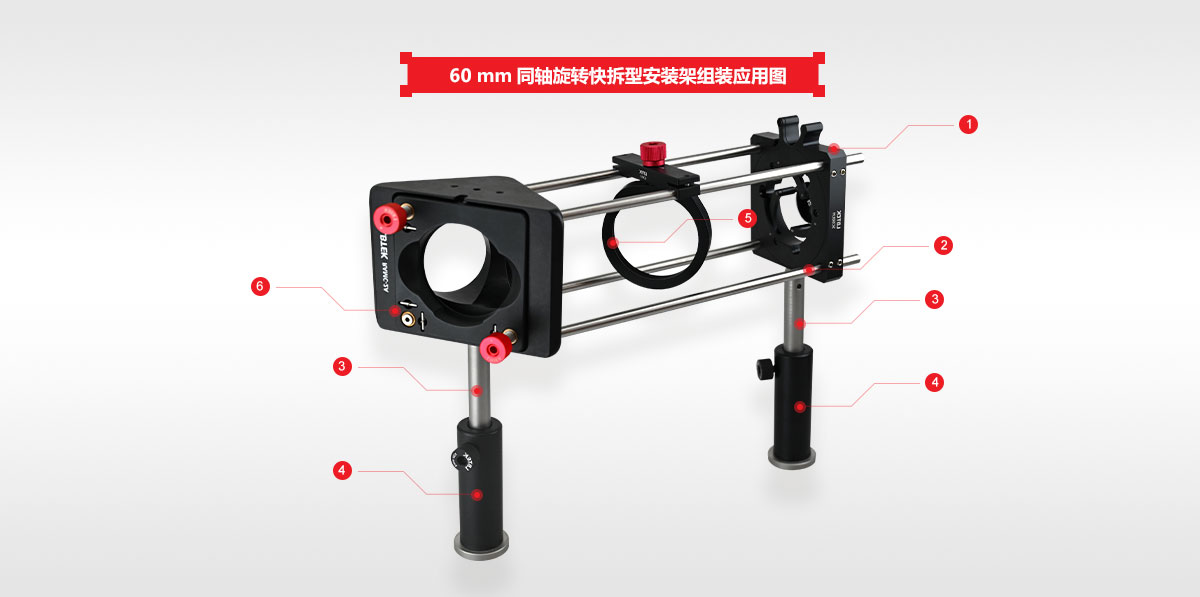

同轴旋转快拆型安装架安装于60 mm同轴系统
产品型号 | 适用光学元件直径 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|
| LCM-R | Ø50.8 mm | ¥1,091.00 | 当天 | 加入购物车 |
