产品说明
- C形压力设计
- 材质：6061-T6铝合金
- 夹持直径：25 mm

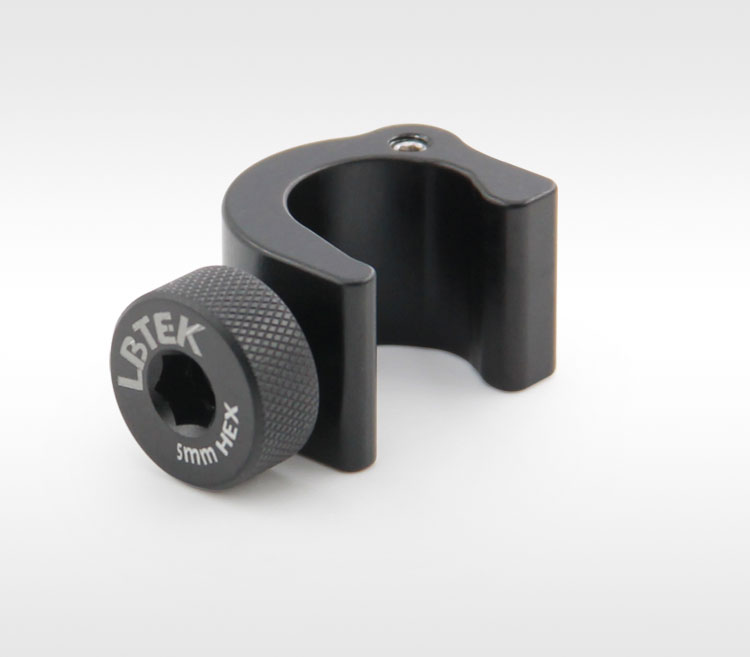

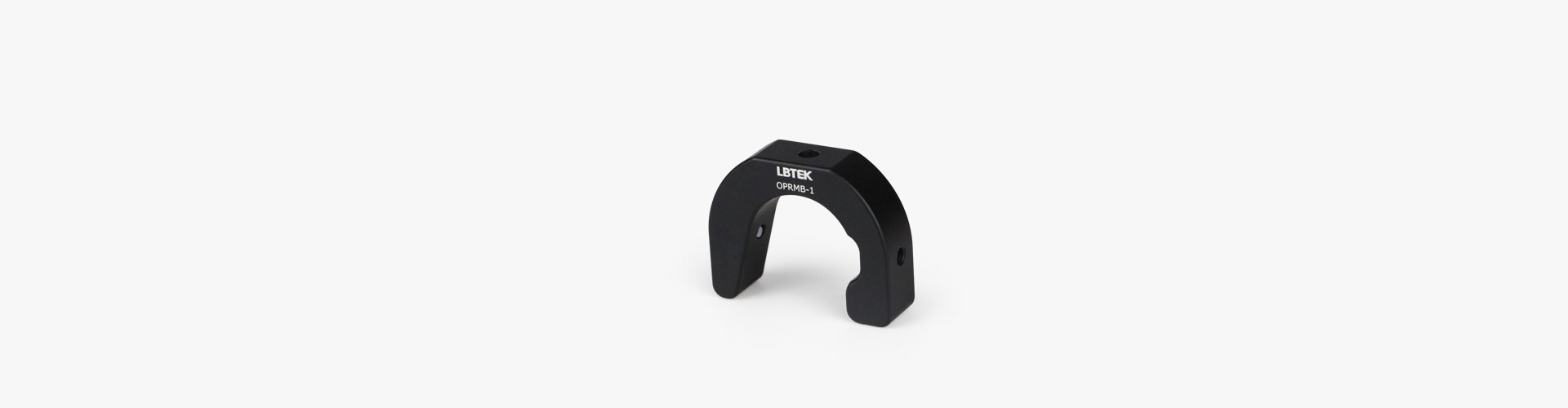

LBTEK 提供的Ø25 mm接杆套环采用C形压力设计，使其可以在Ø25 mm接杆上自由滑动。套环通过一个无损伤胶头螺钉进行固定，含有2个M4螺纹孔和1个M4沉头孔。中间的沉头通孔和一侧螺纹孔可以垂直安装光机组件。
滑动式光学接杆套环
- 微调接杆高度，最大可调高度：10 mm
- 夹持直径：Ø12.7 mm
- 可一包五个购买

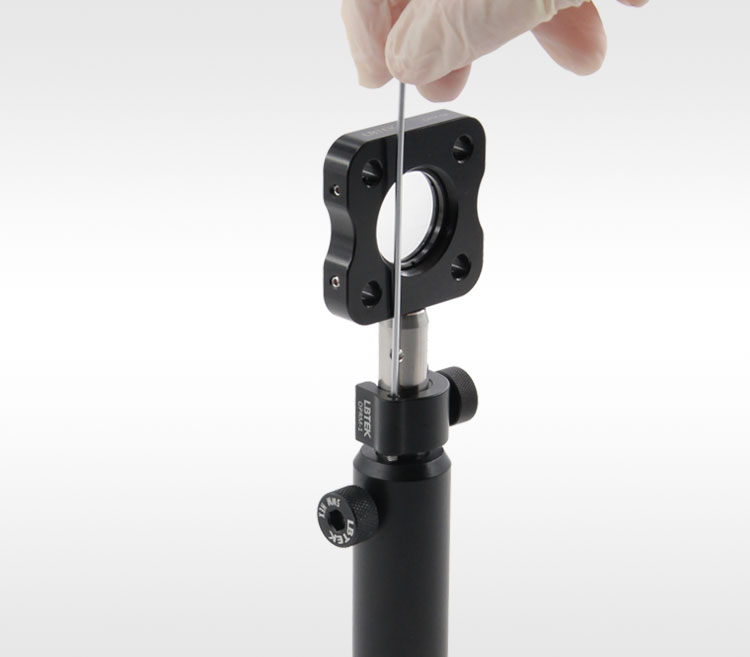

LBTEK滑动式接杆套环通过内六角滚花手拧螺丝固定在Ø12.7 mm接杆上面，把接杆放置接杆支架内时，粗调到一定高度时套上接杆套环使其底部和接杆支架顶部相接，滚花手拧螺丝固定接杆，用2 mm六角扳手调节上表面M3螺钉的支撑高度实现接杆在接杆支架中10 mm高度微调。
夹持接杆在接杆套筒里上下滑动
产品型号 | 夹持直径 | 数量 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| OPRMB-1 | Ø25 mm | 1个 | ¥198.00 | 当天 | 加入购物车 | ||
| OPRM-1-P5 | Ø12.7 mm | 5个 | ¥140.00 | 当天 | 加入购物车 | ||
| OPRM-1 | Ø12.7 mm | 1个 | ¥29.00 | 当天 | 加入购物车 |
