产品说明
- 光学材质：Soda lime钠钙玻璃
- 工作波长：450 nm-650 nm
- 用途：光分束
LBTEK的经济型平板分束器，一面镀有介质分光膜。当非偏振光以45度入射角入射到镀膜面时，在可见光波段(450 nm-650 nm)可以获得30:70的分光比。背面反射会引起反射光的干涉现象。在对这类现象敏感的应用，请考虑使用非偏振分束立方。LBTEK选择使用钠钙玻璃制作多种尺寸平板分束镜。

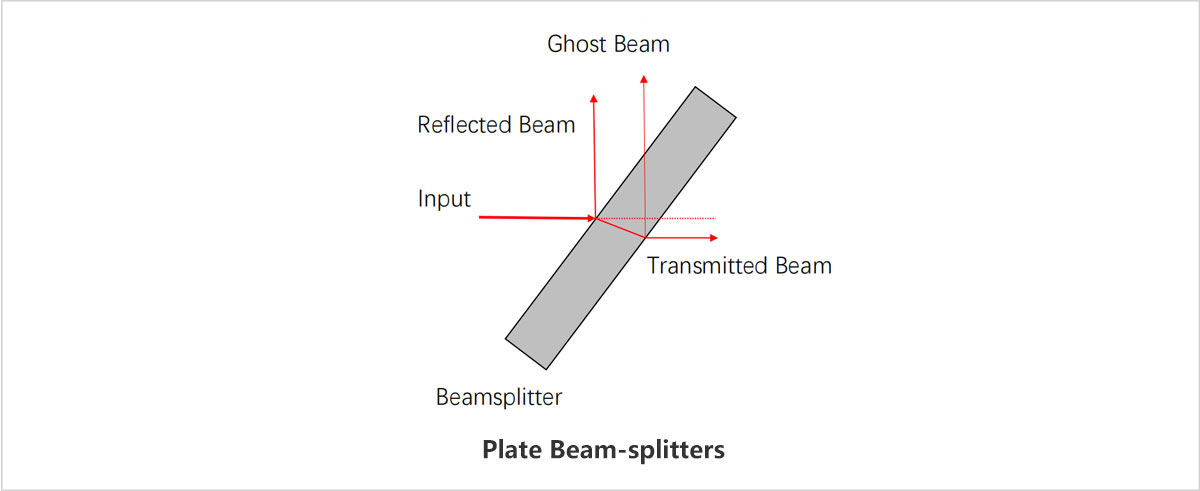

示意图
产品属性
光学元件材质Soda Lime钠钙玻璃
工作波长450 nm -650 nm
通光孔径>90% CA
表面光洁度（划痕/麻点）80/50
经济型平板分束镜，圆形
- 基片材料：Soda lime钠钙玻璃
- 工作波长：450 nm-650 nm
- 用途：光分束
LBTEK 经济型平板分束器，一面镀有介质分光膜。当非偏振光以45度入射角入射到镀膜面时，在可见光波段(450 nm-650 nm)可以获得30:70的分光比。背面反射会引起反射光的干涉现象。在对这类现象敏感的应用，请考虑使用非偏振分束立方。LBTEK选择使用钠钙玻璃制作多种尺寸平板分束镜。
LBTEK经济型平板分束镜安装于30 mm同轴安装板
产品型号 | 光学元件材质 | 直径 | 分光比 | 通光孔径 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|---|
| BS6737 | Soda Lime钠钙玻璃 | 25.4 mm | 30:70 (R:T) | 90% CA | ¥253.00 | 当天 | 加入购物车 |
