产品说明
- 直写传输损耗低的优质光波导
- 可构建波导定向耦合器
- 配置空间光调制器（SLM）进行激光焦斑整形
- 可直写圆形波导，矩形波导等
- 机器视觉
- 软件控制系统所有硬件
Roban-Waveguide系列飞秒激光波导专用直写系统配置飞秒激光放大器（可选配）以及三维高精度空气轴承位移平台，可将飞秒激光聚焦至透明材料内部直写各类光波导及波导阵列，适用于科研院所进行集成光学、量子光学等方向研究。欲了解该系统具体定制详情，请联系LBTEK技术支持。

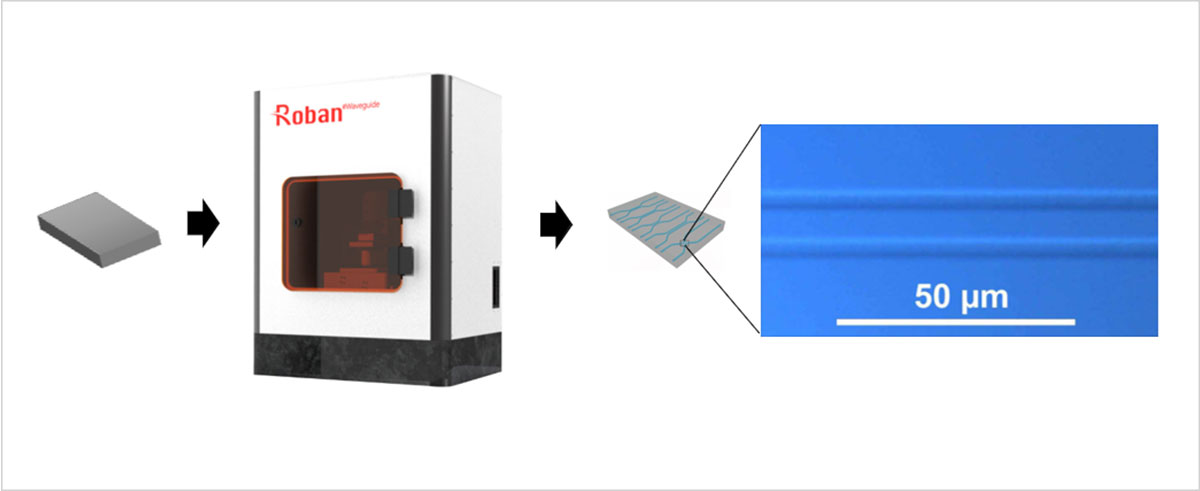

示意图
产品属性
光源飞秒激光放大器（1030 nm / 515 nm，1-200kHz）
加工材料各类硬质透明材料（玻璃、石英、铌酸锂等）
加工范围(L×W×H)100×100×60 mm
设备尺寸(L×W×H)600×500×800 mm
XY轴重复定位精度±50 nm
Z轴重复定位精度±100 nm
最高扫描速度100 mm/s
加工文件格式AeroBasic，支持STL格式转换
电气要求AC200-240 V，50/60Hz，5kW
