产品说明
- 兼容16 mm同轴系统和自由空间
- 适用Ø12.7 mm光学元件
- 三个精密调节器，可调节俯仰、偏摆、线性位移

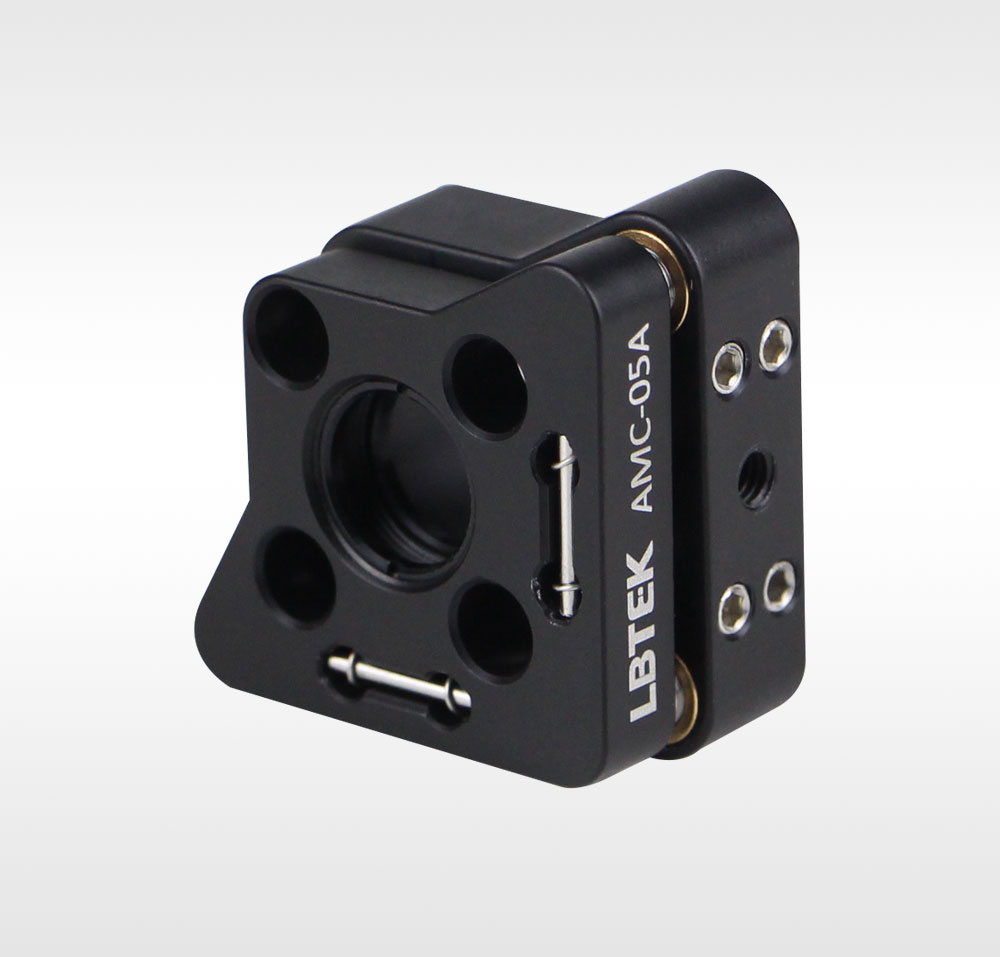

LBTEK 16 mm同轴系统反射镜架兼容16 mm同轴系统，适用于同轴系统中Ø12.7 mm反射镜的安装及调节，两侧带有M4螺纹安装孔，可直接安装在接杆上，用于自由空间。三个精密螺纹副，提供±2.5°俯仰/偏摆调节范围，同时调节三个精密螺纹副，反射镜可沿同轴系统中心轴移动，位移行程为±1 mm。

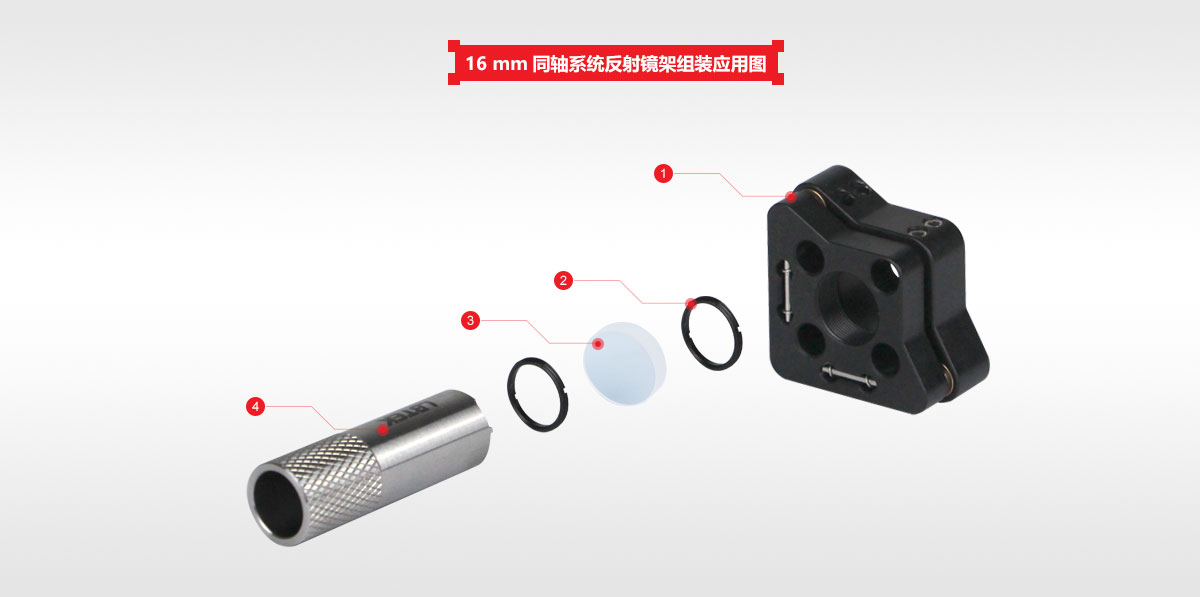

16 mm同轴系统反射镜架，双卡环固定光学元件
- 双卡环固定光学元件，安装光学元件最厚3.8 mm
- 线性移动范围±1 mm，俯仰角±2.5°，调节精度0.53°/转
- 两侧M4螺纹孔可直接安装接杆

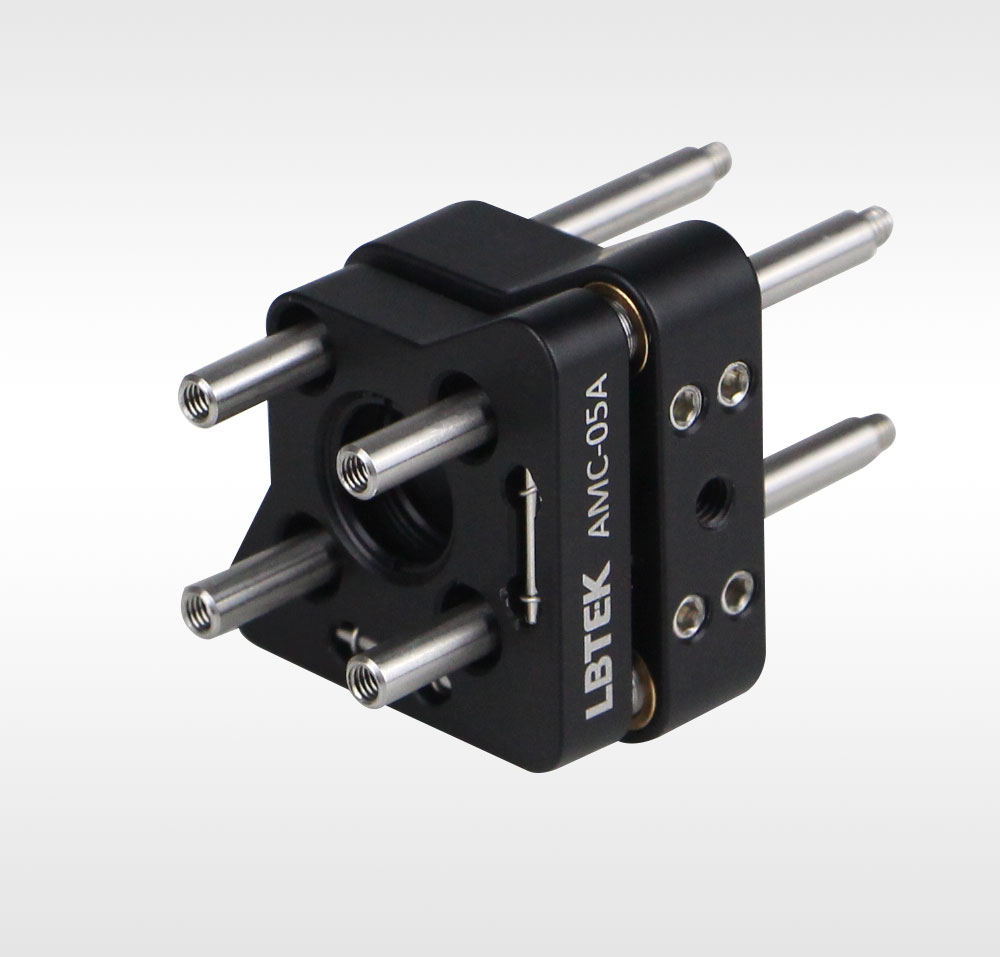

LBTEK 16 mm同轴系统反射镜架使用双卡环固定光学元件，调整架两侧配有M4螺纹孔，用于连接安装接杆；4个Ø4 mm通孔用于安装16 mm同轴系统Ø4 mm接杆，调整侧面M4紧定螺丝可锁紧（2.0 mm六角扳手调节）。调整架可安装直径12.7 mm，最大厚度为3.8 mm的光学元件，3个M5×0.25精密调节器，可提供俯仰、偏摆角度范围±2.5°的调节，每转0.53°，及±1 mm的线性位移调节，调节器不带旋钮，可用2.0 mm六角扳手调节。购买LBTEK 16 mm同轴系统反射镜架赠送1个2.0 mm六角扳手。
兼容16 mm同轴系统
产品型号 | 光学元件安装方式 | 适用光学元件最大厚度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| AMC-05A | 双卡环固定 | 3.8 mm | ¥571.00 | 当天 | 加入购物车 |
