产品说明
- FC/PC、FC/APC、SMA三种接口
- 光轴高度12.5 mm
- 凸槽定位，快捷安装
LBTEK光纤支架运用于多轴位移台，每个光纤支架都能将接头的中心位于位移台平台上方的12.5 mm，这种设计基本消除了光纤端头的微小振动，同时显著提高了光纤端头定位的可重复性。用于FC/PC和FC/APC接头光纤的固定架可选宽键（2.2 mm）或窄键（2.0 mm）槽。所有转接件均采用304不锈钢制造，并进行电磁退磁处理。
产品属性
材质304不锈钢
表面处理电磁退磁处理（注：退磁后仍有弱磁力）
光轴中心高12.5 mm

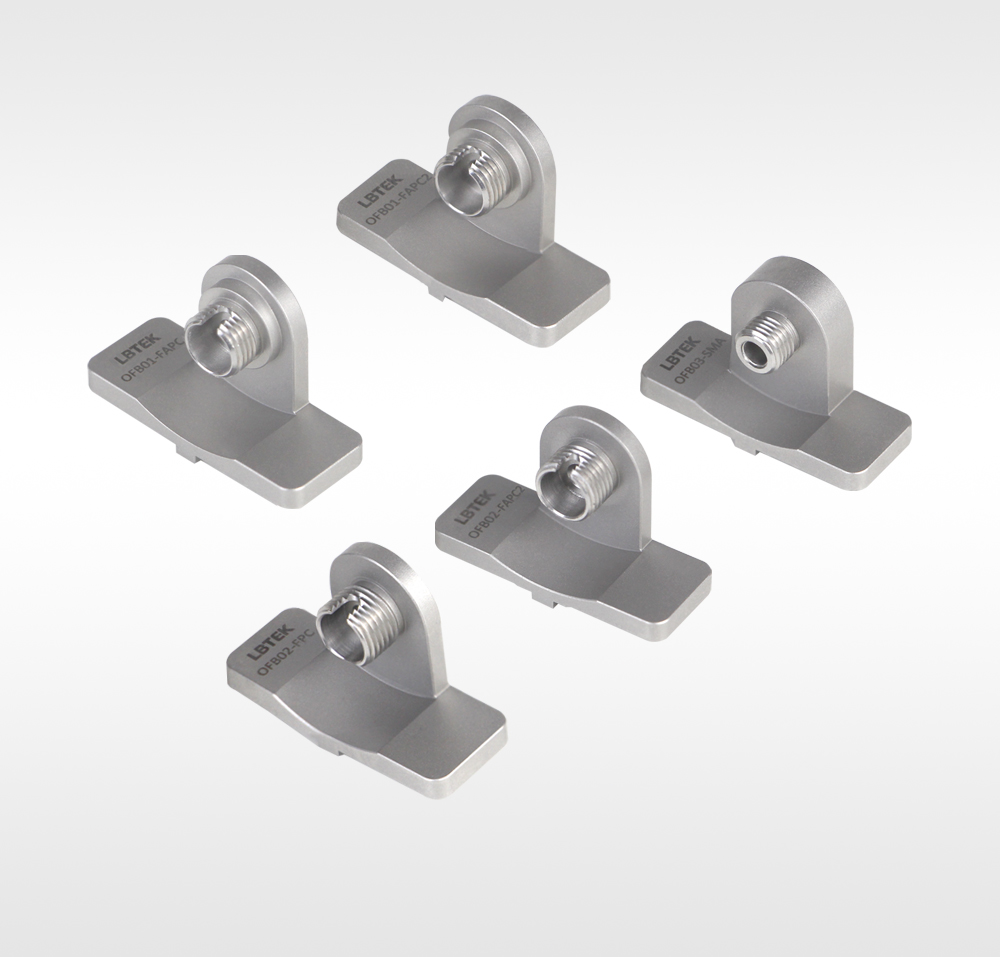

OFB系列光纤支架
- 带FC/PC、FC/APC、SMA接口
- 用于多轴位移台
- 凸槽定位，快速安装

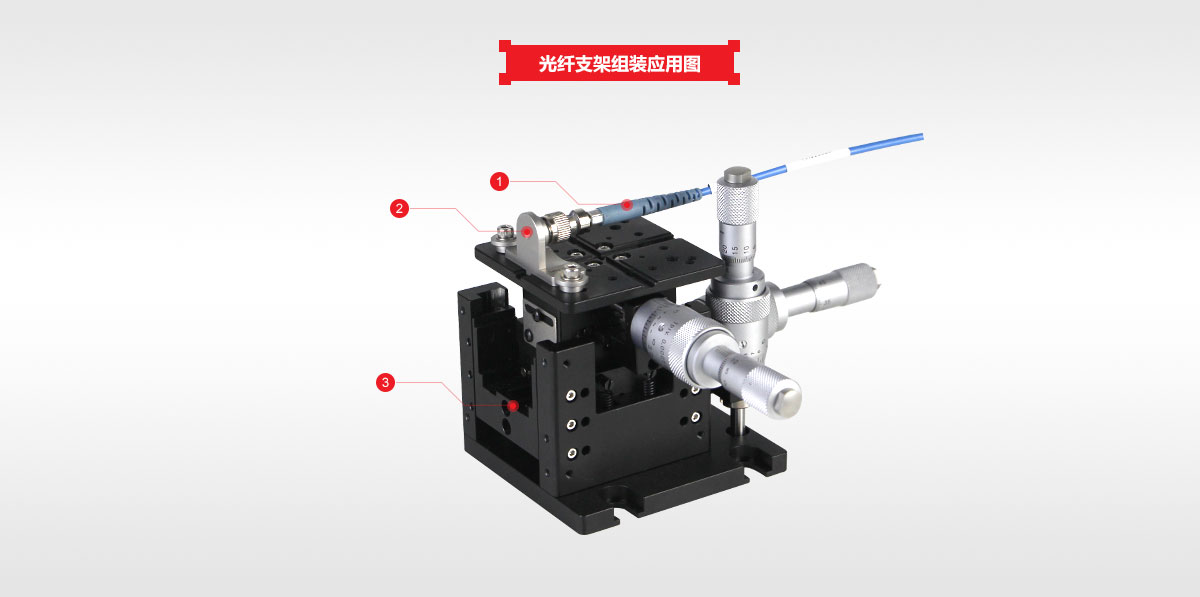

LBTEK 光纤支架用于多轴位移台，凸台位置安装在位移台顶板凹槽位置，进行快速定位，安装固定方式有附件FF05固定卡扣、CP20压板、AC270M调整压板可选，根据实际工况选定（固定附件需单独购买），锁紧安装在光纤支架两侧，保持光轴中心高度12.5 mm。

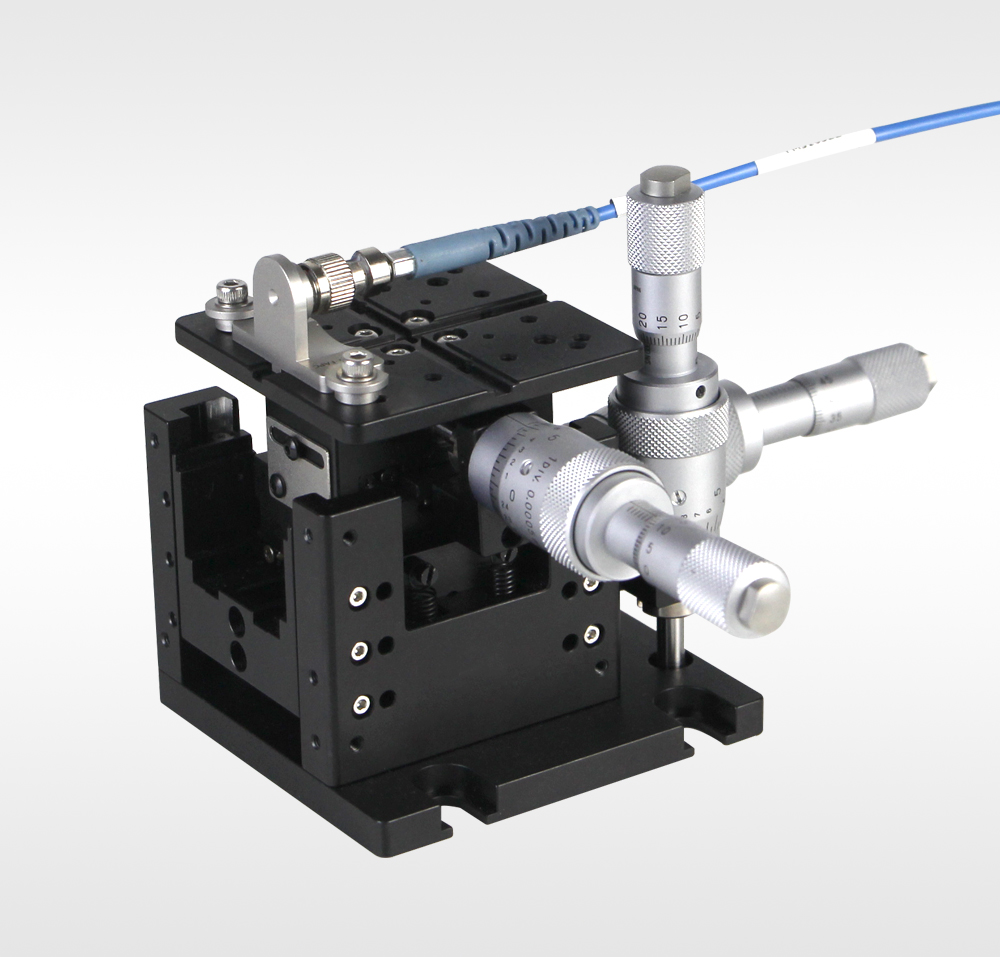

光纤跳线插入光纤支架里，安装在LS60G-XYZ三轴位移台上

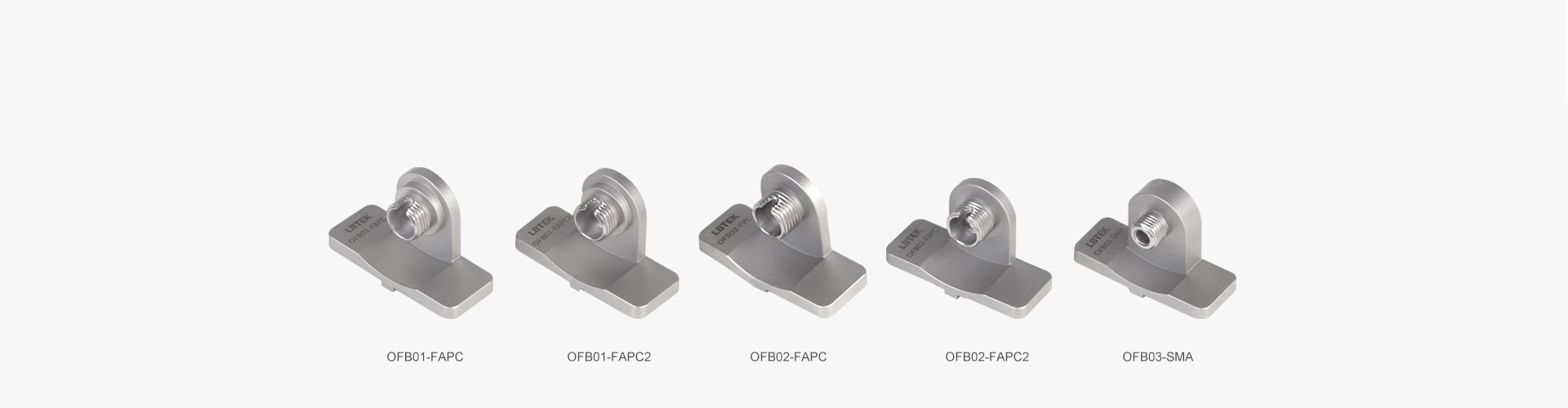

产品型号 | 接头类型 | 螺纹规格 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| OFB01-FAPC | FC/APC，宽键（2.2 mm） | M8外螺纹 | ¥297.00 | 当天 | 加入购物车 | ||
| OFB01-FAPC2 | FC/APC，窄键（2 mm） | M8外螺纹 | ¥297.00 | 当天 | 加入购物车 | ||
| OFB02-FPC | FC/PC，宽键（2.2 mm） | M8外螺纹 | ¥276.00 | 当天 | 加入购物车 | ||
| OFB02-FPC2 | FC/PC，窄键（2 mm） | M8外螺纹 | ¥276.00 | 当天 | 加入购物车 | ||
| OFB03-SMA | SMA | 1/4-36-UNS-2A | ¥266.00 | 当天 | 加入购物车 |
