产品说明
- 提供两款不同电阻的LED灯座，以满足不同电气要求
- 外部SM05安装螺纹
- 附赠Type-A转Type-C电缆
LBTEK 提供的LED灯座采用的是USB供电，在其内部封装安装插座。LBTEK 共提供两款不同电阻的LED灯座以适配不同的电气需求。该模块通过外壳背面的USB-Type-C端口供电，该端口可通过附带的Type-A转Type-C电缆连接到USB电源或PC端。外壳带有SM05螺纹，可与适配SM05螺纹组件的系统集成使用。
产品属性
输入电压5 V
螺纹规格SM05外螺纹
外壳尺寸Ø17.8 mm×22.8 mm

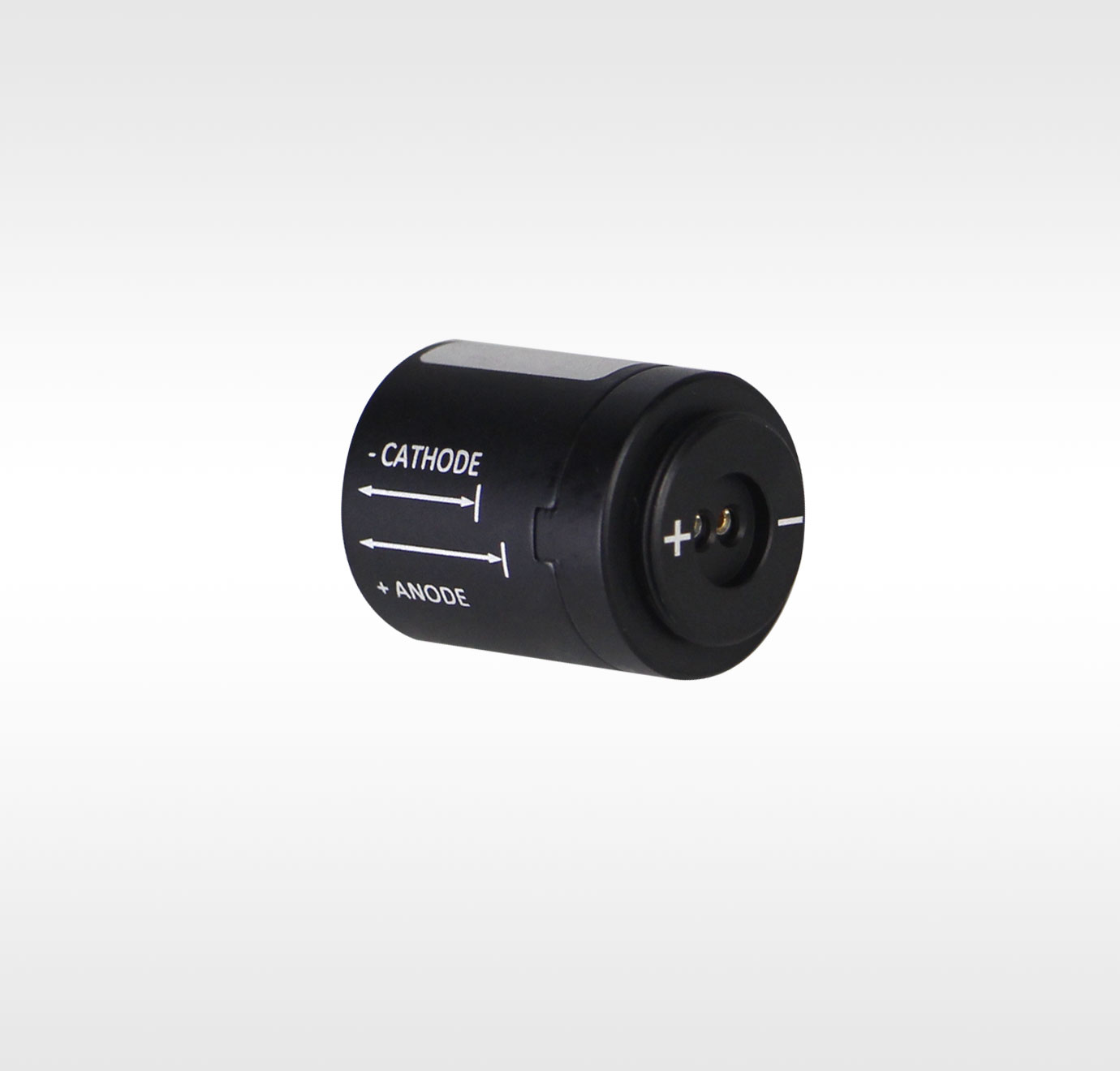

LED灯座
- 输入电压5V
- SM05外螺纹
- 内部封装安装插座

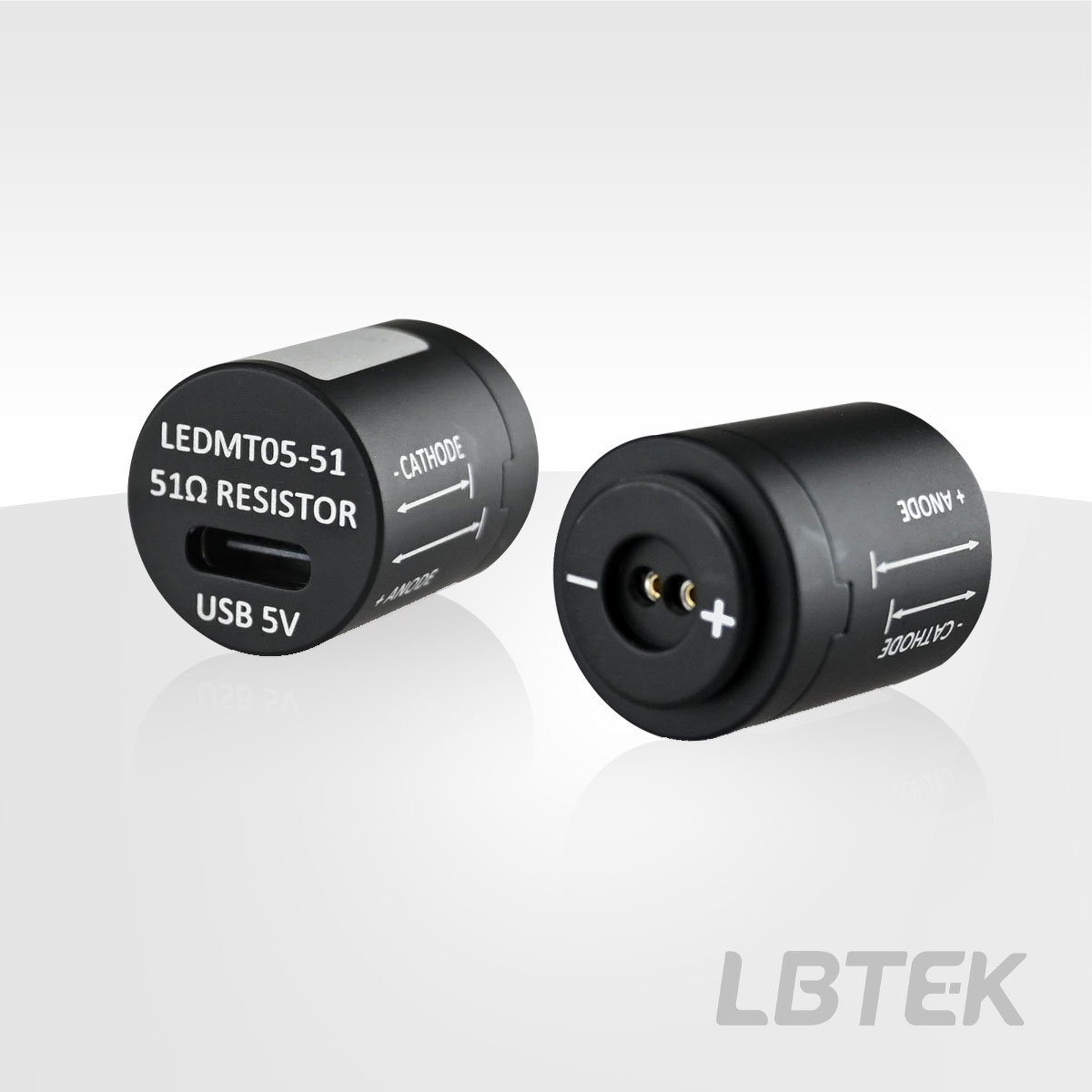

LBTEK 提供的LED灯座共有两款，一款LEDMT05-51灯座内部电阻为51 Ω，另一款LEDMT05-62灯座内部电阻为62 Ω，输入电压均为5 V，在其内部封装安装插座。该模块通过外壳背面的USB-Type-C端口供电，可通过附赠的Type-A转Type-C电缆连接到USB电源或PC端，并搭配小于5 V的LED灯使用。
LED灯座接口图

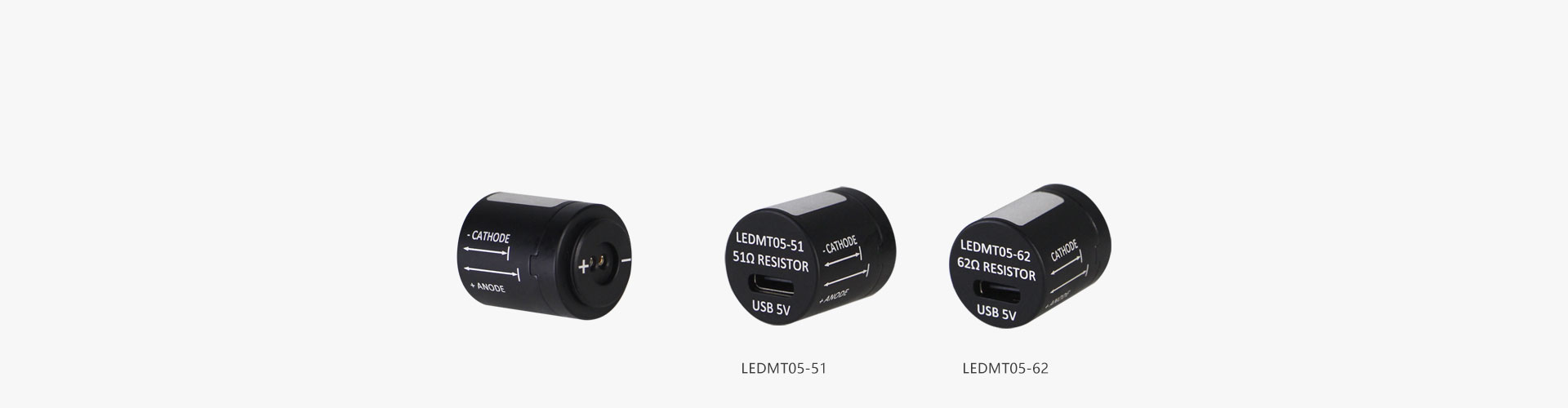

产品型号 | 电阻 | 输入电压 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| LEDMT05-51 | 51 Ω | 5 V | ¥310.00 | 当天 | 加入购物车 | ||
| LEDMT05-62 | 62 Ω | 5 V | ¥310.00 | 当天 | 加入购物车 |
