产品说明
- 材质：6061-T6 铝合金
- ±4°的俯仰和倾斜调节，调节精度0.4°/转
- 附带3个M4沉头孔，提供多种安装方式
LBTEK 方型光学调整架具有一个内螺纹通孔，利用SM1卡环扳手，通过附带的两个卡环固定薄型光学元件。AMMS-1A用于安装最厚3.5 mm的Ø25.4 mm光学元件，两个M6×0.25调节丝杆带锁紧螺母，实现±4 °俯仰和倾斜调节，0.4°/转调节精度。调整架附带3个M4沉头孔并且可以按照适合左手、右手操作或面朝上的方向安装到接杆上。
产品属性
材质6061-T6铝合金
表面处理黑色阳极氧化

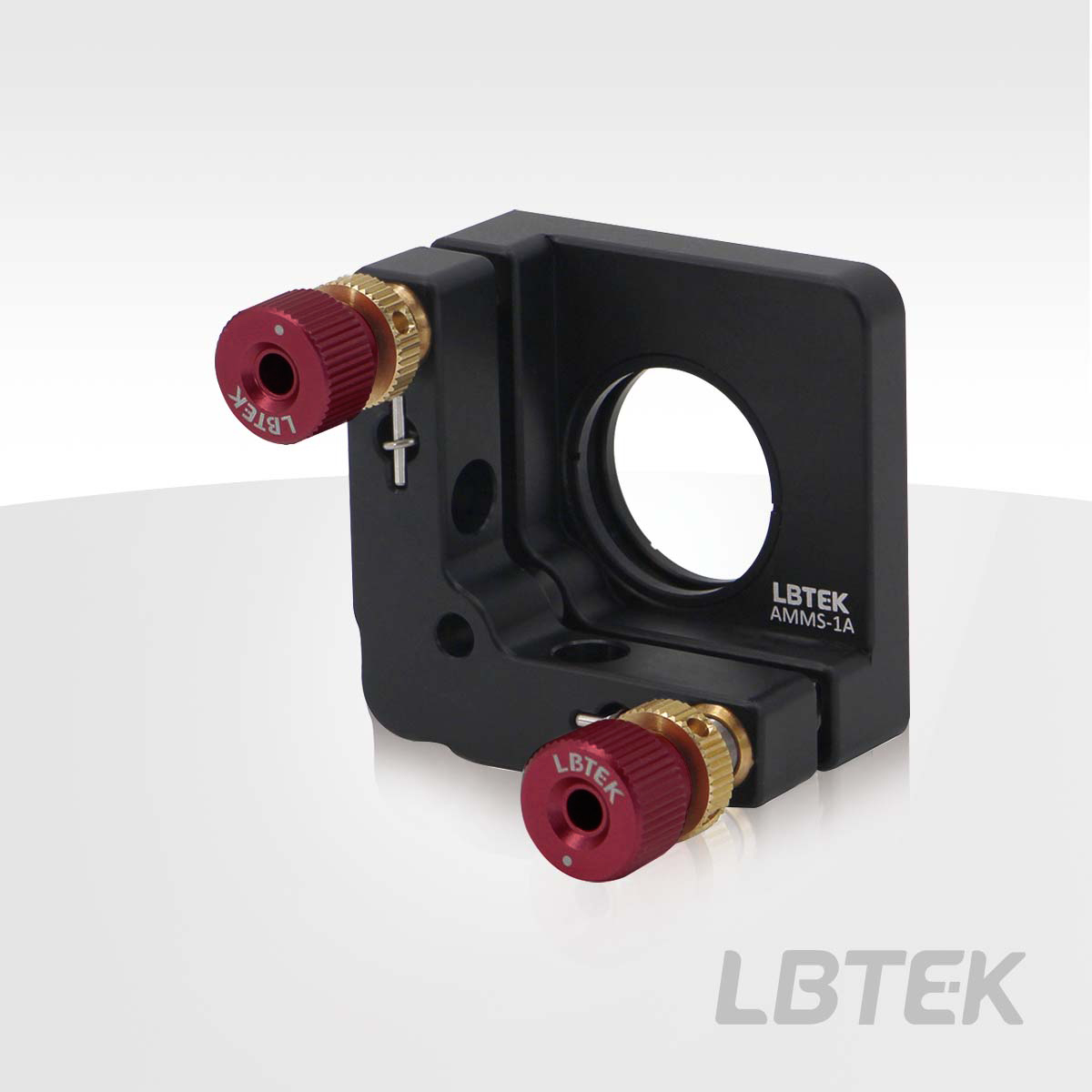

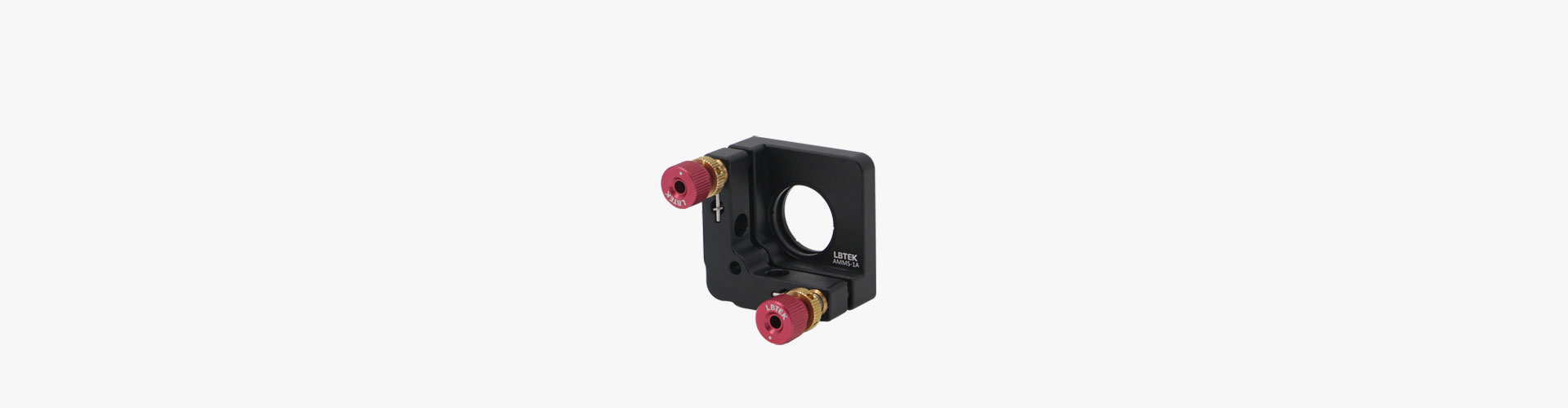

方型光学调整架，带SM1螺纹孔
- 安装最厚3.5 mm的Ø25.4 mm光学元件
- 镜片固定方式：双卡环
- 可调俯仰/偏摆角度范围：±4°
- 调节精度：0.4°/转
- 调节器上的旋钮可拆卸
- 附带3个M4沉头孔，提供多种安装方式
LBTEK 方型光学调整架用于安装最厚3.5 mm的Ø25.4 mm光学元件， 利用SM1卡环扳手，通过附带的两个SM1R卡环将光学元件固定在安装孔中。两个M6×0.25调节丝杆带锁紧螺母，实现±4 °俯仰和倾斜调节，0.4°/转调节精度。调整架附带3个M4沉头孔并且可以按照适合左手、右手操作或面朝上的方向安装到接杆上。调节器上的旋钮可拆卸，拆卸完后可用附送的带旋钮的2.0 mm内六角扳手HWS-2或者普通2.0 mm六角扳手调节，方便安装在狭窄、受限空间中。

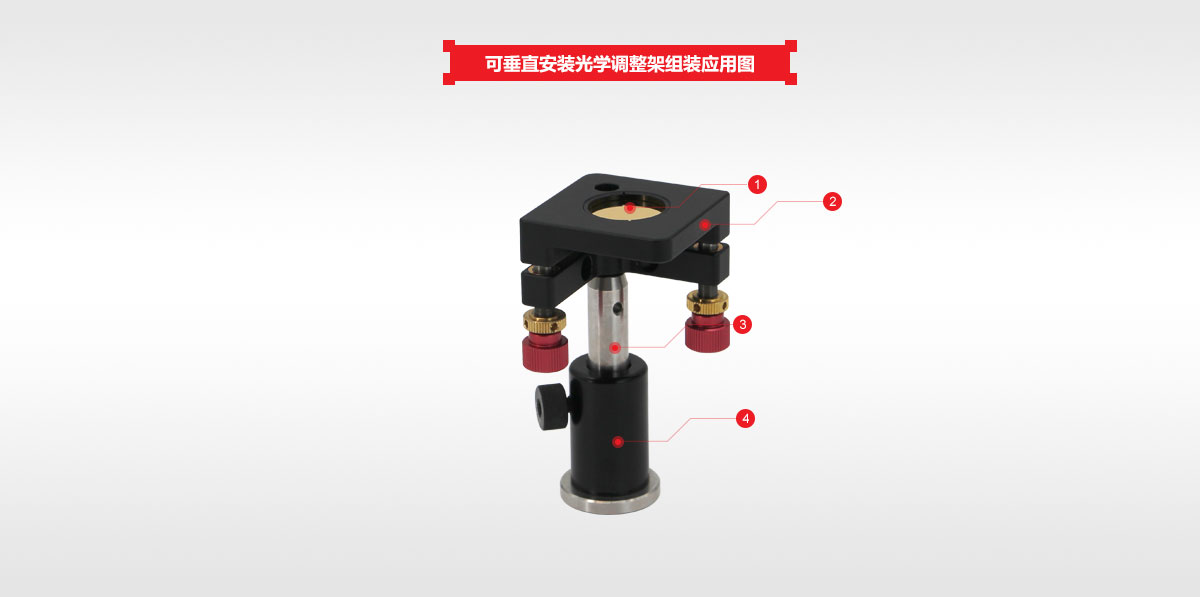

AMMS-1A可以正面朝上安装在接杆上
产品型号 | 可调俯仰/偏摆角度范围 | 调节器规格/ 数量 | 适用光学元件最大厚度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|
| AMMS-1A | ±4° | M6 x 0.25 /2个 | 3.5 mm | ¥499.00 | 当天 | 加入购物车 |
