产品说明
- 适用安装Ø12.7 mm、Ø25.4 mm、Ø30 mm和Ø50.8 mm光学元件
- 通过三点式固定圆形光学元件
- 适用光学元件最小厚度 5 mm

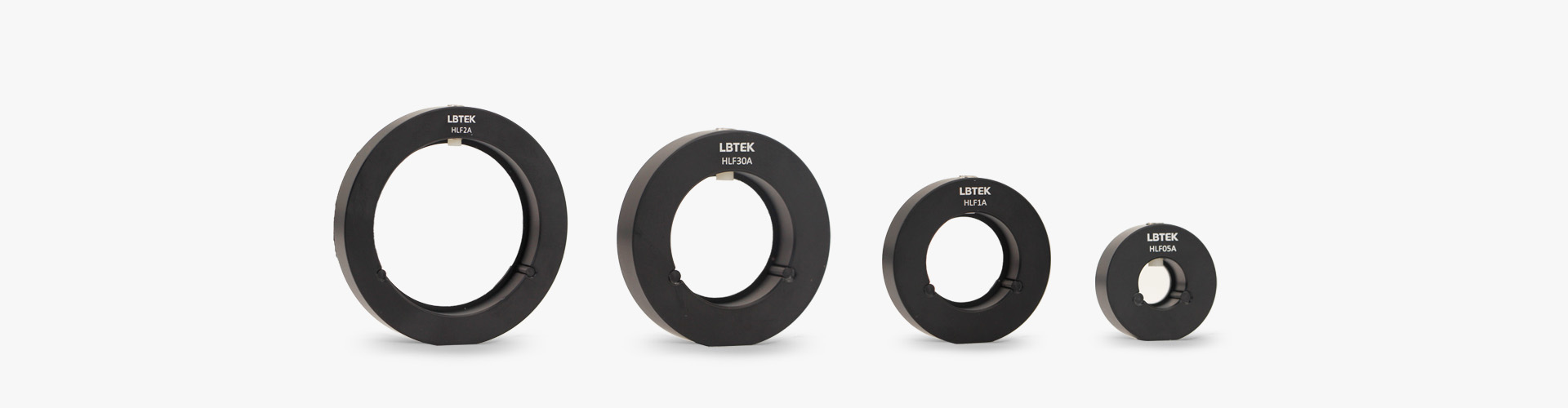

LBTEK 的HLF系列圆形镜片夹持架用于安装Φ12.7、25.4、30、50.8 mm的圆形光学元件，结构简单，只需将光学元件放入夹持架中，再用内六角胶头螺丝顶住，通过三点式固定圆形光学元件，同时夹持架可方便地安装于各种支杆及升降支架上来搭建光路，使用方便。
产品属性
材质6061-T6 铝合金
表面处理黑色阳极氧化
适用光学元件直径Ø12.7 mm、Ø25.4 mm、Ø30 mm和Ø50.8 mm

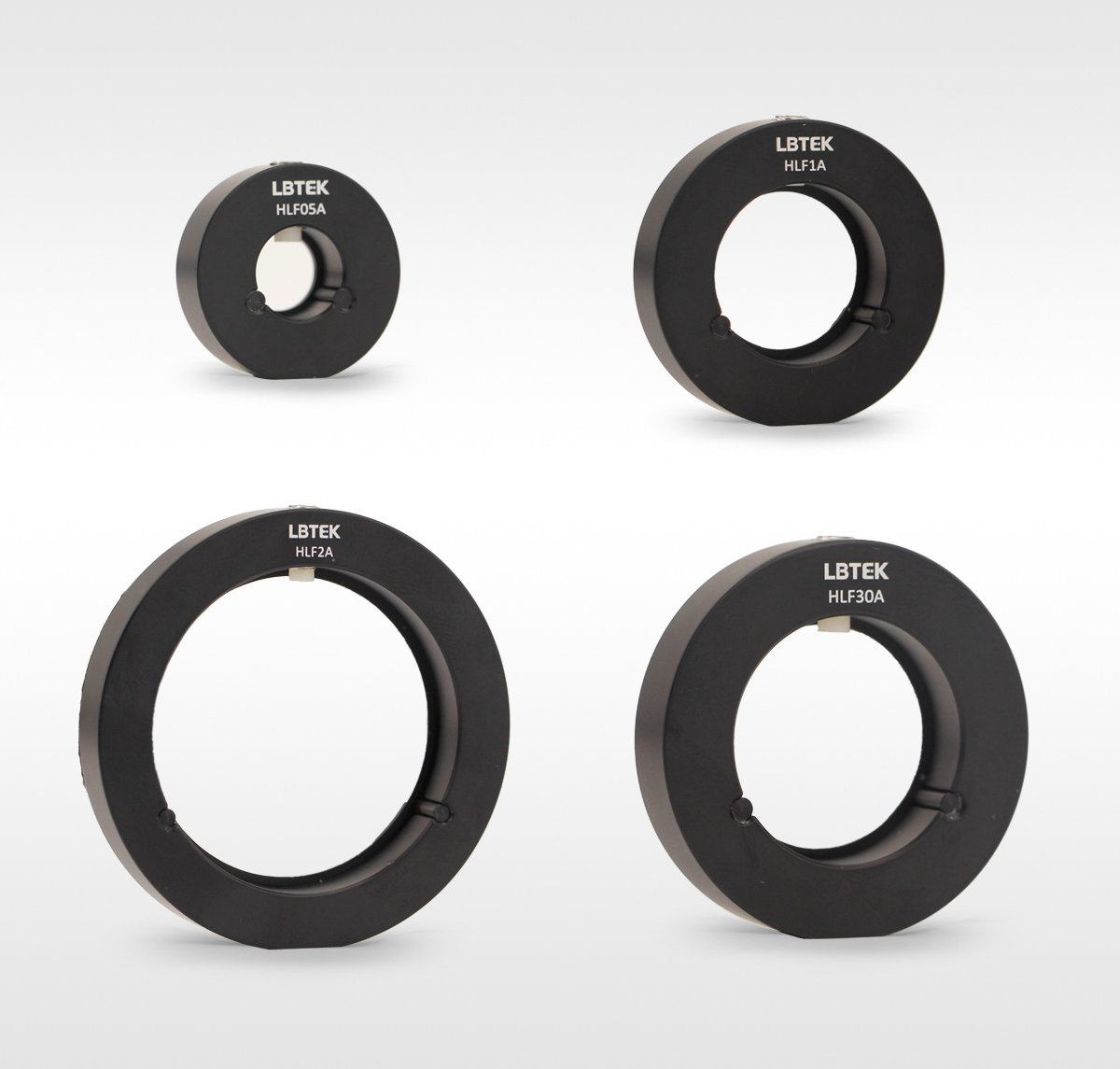

圆形镜片夹持架
- 安装光学元件规格: Ø12.7 mm、Ø25.4 mm、Ø30 mm和Ø50.8 mm
- 三点式固定圆形光学元件
LBTEK 的HLF系列圆形镜片夹持架用于安装Ø12.7 mm、Ø25.4 mm、Ø30 mm和Ø50.8 mm的圆形镜片，结构简单。附带的M6胶头螺丝固定光学元件，依靠三点来固定圆形镜片，使用方便。同时夹持架可方便地安装于各种支杆及升降支架上来搭建光路。

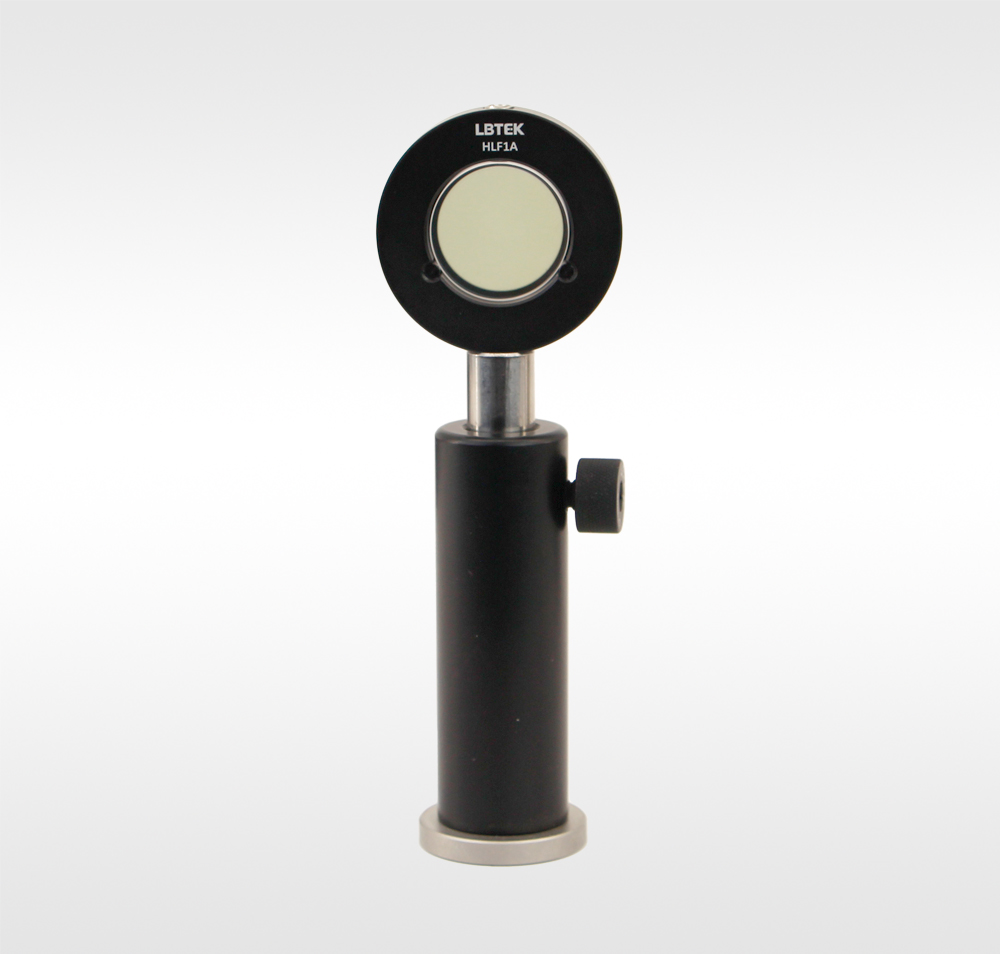

圆形镜片夹持架安装在接杆上
产品型号 | 适用光学元件直径 | 通光孔径 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| HLF2A | Ø50.8 mm | Ø48 mm | ¥208.00 | 6周 | 加入购物车 | ||
| HLF30A | Ø30 mm | Ø28 mm | ¥180.00 | 当天 | 加入购物车 | ||
| HLF1A | Ø25.4 mm | Ø23 mm | ¥163.00 | 当天 | 加入购物车 | ||
| HLF05A | Ø12.7 mm | Ø11.5 mm | ¥152.00 | 当天 | 加入购物车 |
