光学元件标识升级公告
适用于30 mm同轴系统

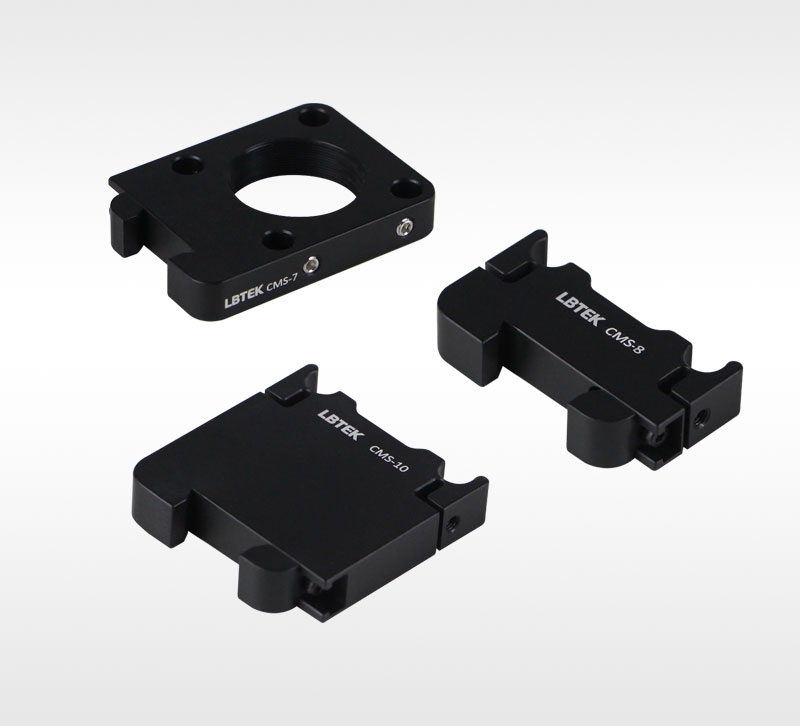

将同轴组件沿常用光轴安装到燕尾导轨
同轴板和卡入式安装架可选
用于30 mm同轴系统

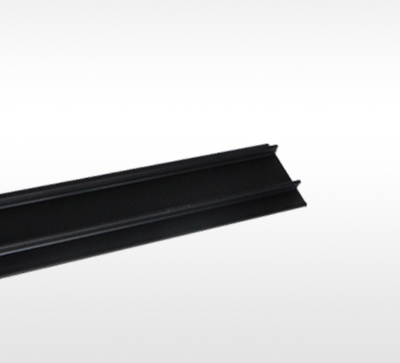

易切割的黑色HIPS材料
遮挡同轴系统四周的杂散光
兼容30 mm和60 mm同轴系统

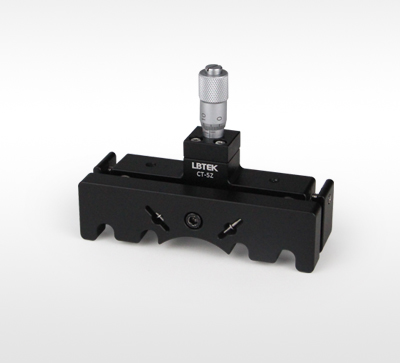

沿同轴系统光轴方向移动器件

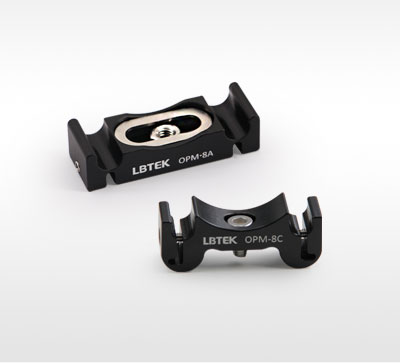

配合OPM系列同轴板使用

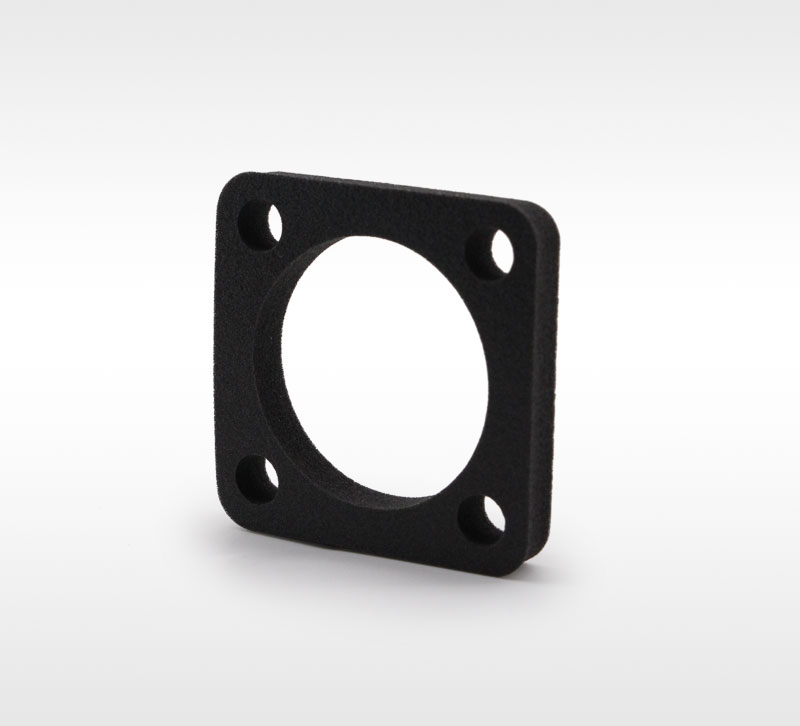

压缩回弹性强的材料
遮挡两个同轴安装板之间的光

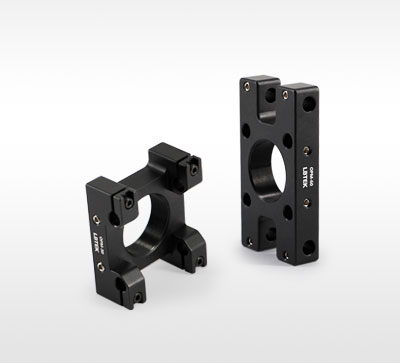

将30 mm同轴系统垂直安装在30 mm同轴系统或者60 mm同轴系统中
中心SM1内螺纹，用于SM1透镜套筒和Ø25.4 mm光学元件
侧面带锁紧螺钉
主体材质6061-T6铝合金

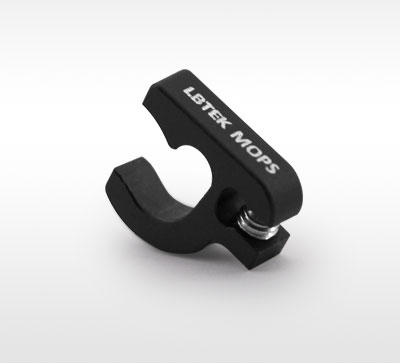

记录同轴系统中组件的位置
挠性夹紧
材质：6061-T6铝合金
固定角度：90°
兼容Ø6 mm接杆
将Ø12.7 mm接杆及组件安装到30 mm同轴系统中
紧定螺丝固定Ø6 mm同轴接杆，手拧螺丝固定Ø12.7 mm光学接杆
适用于Ø25.4 mm光学元件
黑色阳极氧化
兼容同轴系统的连续可调光阑
黑色阳极氧化的铝制外壳
带拨杆调节
适合搭建紧凑型光学系统
螺纹规格SM1
提供两端内外螺纹(SM1-xxA、xxD)、内螺纹(SM1-xxB)和外螺纹(SM1-xxC)三个版本
材质：6061-T6 铝合金
表面处理：黑色阳极氧化
兼容30 mm同轴系统
30mm和60mm同轴系统垂直安装

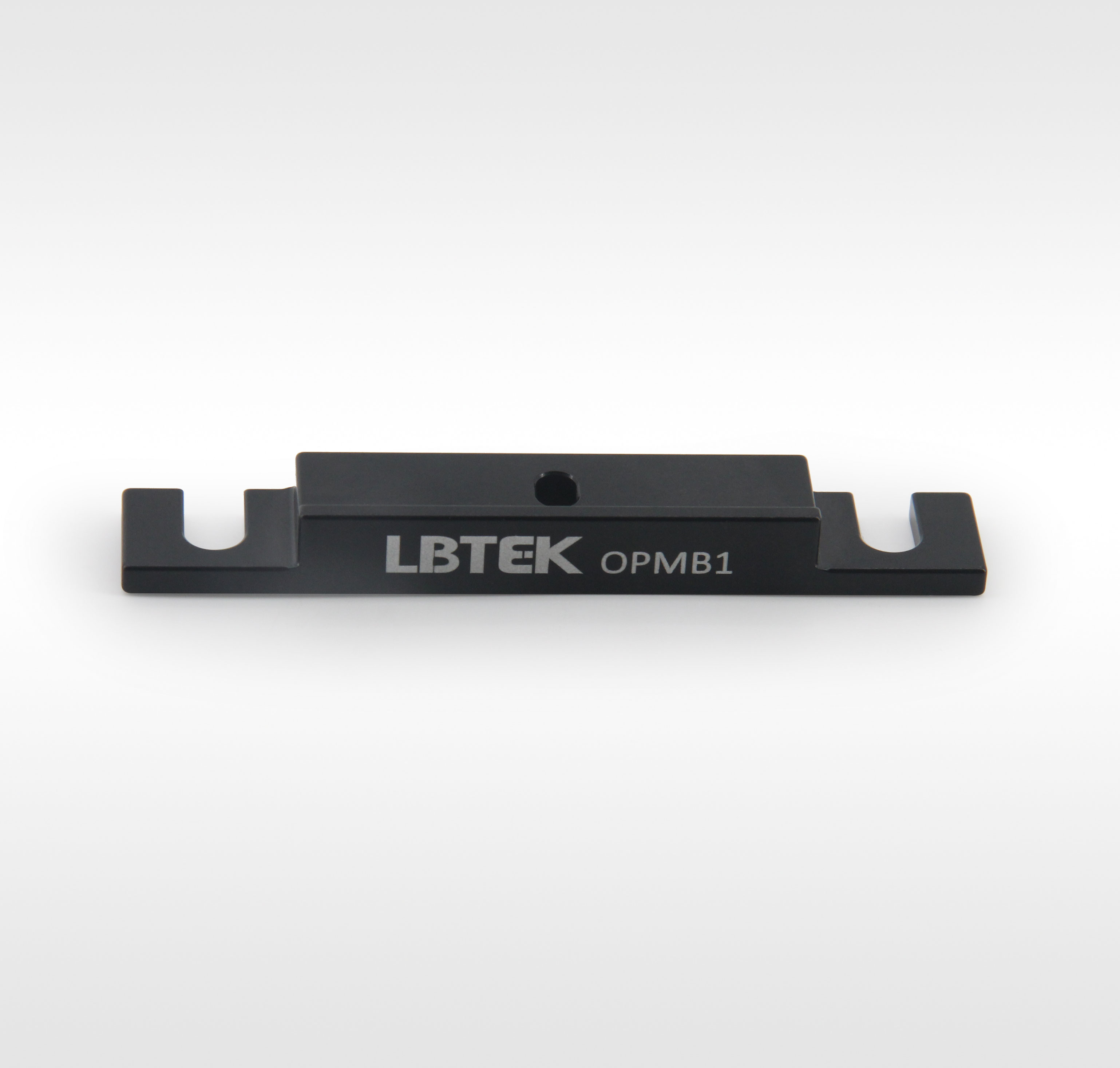

带U型沉头槽，用于安装在面包板/光学平台上
材质：304不锈钢
适用Ø6 mm同轴接杆使用
M3，4-40螺柱可选，可一包四个购买
可拆卸与不可拆卸螺丝（一体式）两种

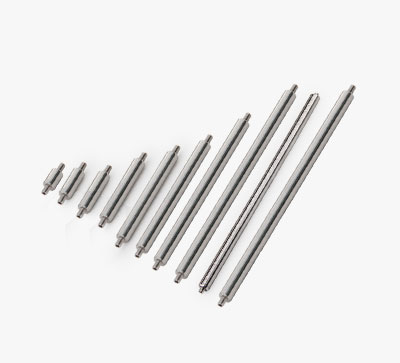

兼容同轴系统
长度：6.5 mm-500 mm多种长度规格可选
易拆卸或安装
兼容30mm和60mm同轴系统
SM1螺纹贯穿孔
