节省选购及组装时间，光机系统搭建简便快捷
配套光学接杆直径12.7 mm，顶部带M4螺丝
有安装座、360°连体旋转压块、叉式压块三种固定方式可选
底座360°旋转方便安装
支架超宽方形槽，双线接触避免接杆滑动，滚动
接杆可贯穿底座，实现更大高度调节范围
材质：不锈钢304
经简单退磁处理（注：退磁后仍有弱磁力）
一般用于增加Ø12.7 mm不锈钢光学接杆的长度
材质：不锈钢

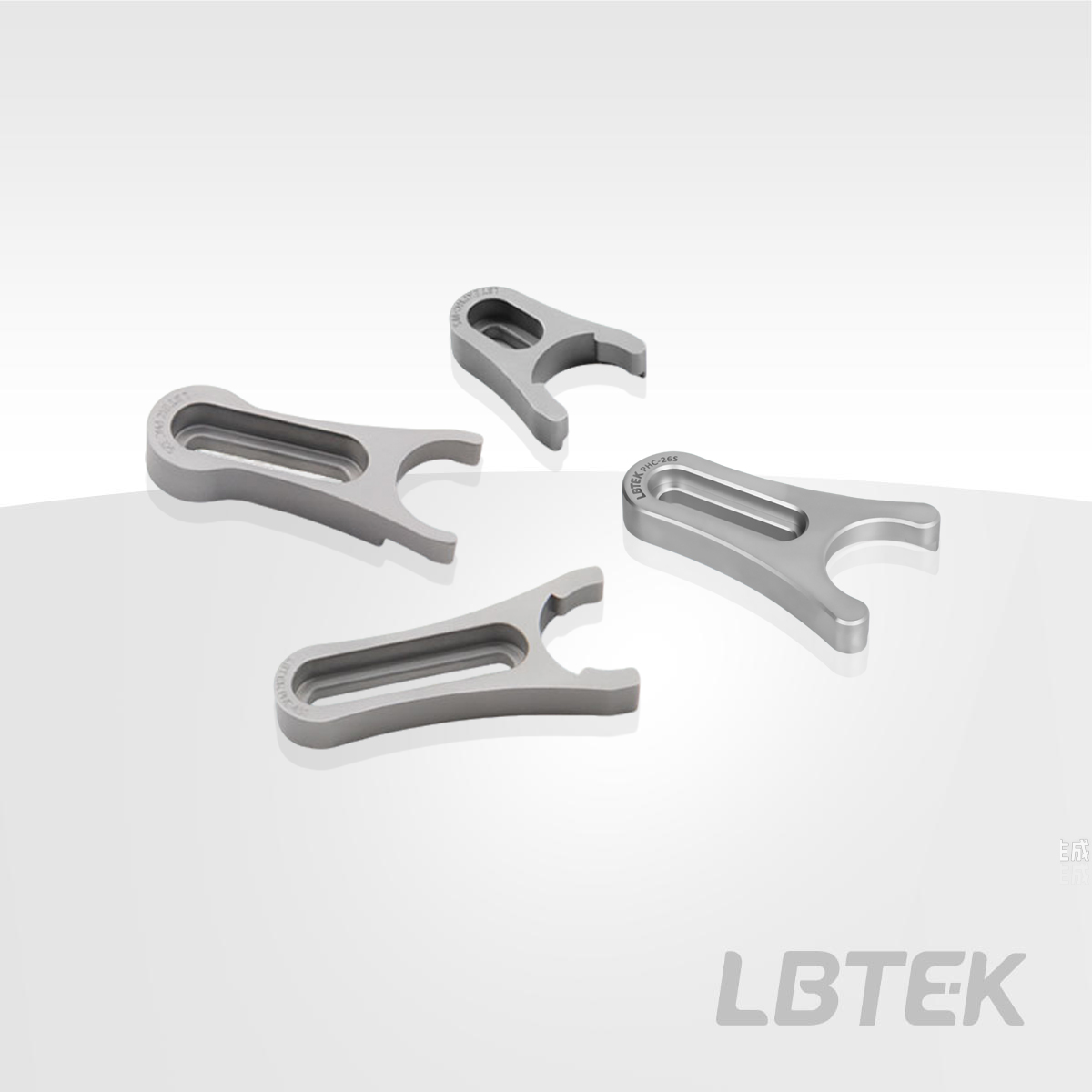

一体式结构设计
可选沉头孔槽长度：10 mm、32 mm、45 mm
M6螺柱，螺柱长度5.3 mm
底座有加工的退刀槽，用于增加稳定性
磁性和无磁性可选
弹簧式滚花内六角手拧锁紧螺钉
超宽方形退刀槽，双线接触避免光学接杆滑动，滚动
标准Ø12.7 mm接杆支架底部配有M6螺纹贯穿孔
材质：6061-T6铝合金
夹持直径：Ø12.7 mm
可5个一起购买
夹具角度多种可选
兼容Ø12.7 mm接杆
材质：303不锈钢
底部M6螺纹孔，顶部可拆卸M4 x 12螺钉
横向Ø3.2 mm贯穿孔，用于加固/松开安装
