安装光纤耦合器的底座和配件
搭建微型光纤系统
侧板与底板可单独购买
磁性底座，无需螺丝固定

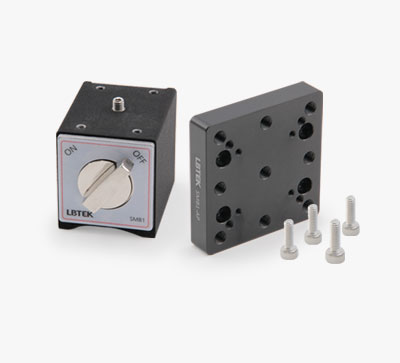

磁性开关，便于固定或移动

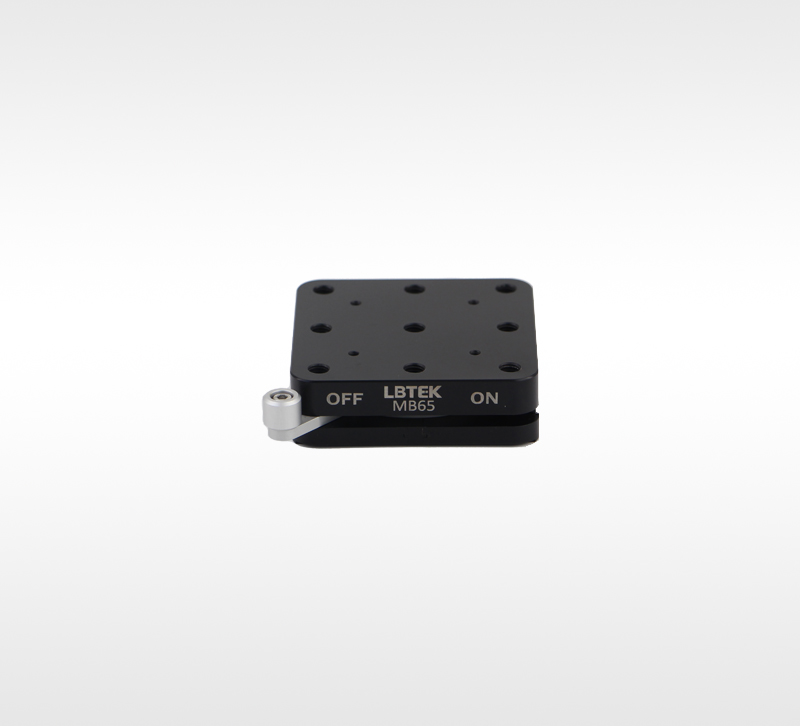

低矮型20 mm高度

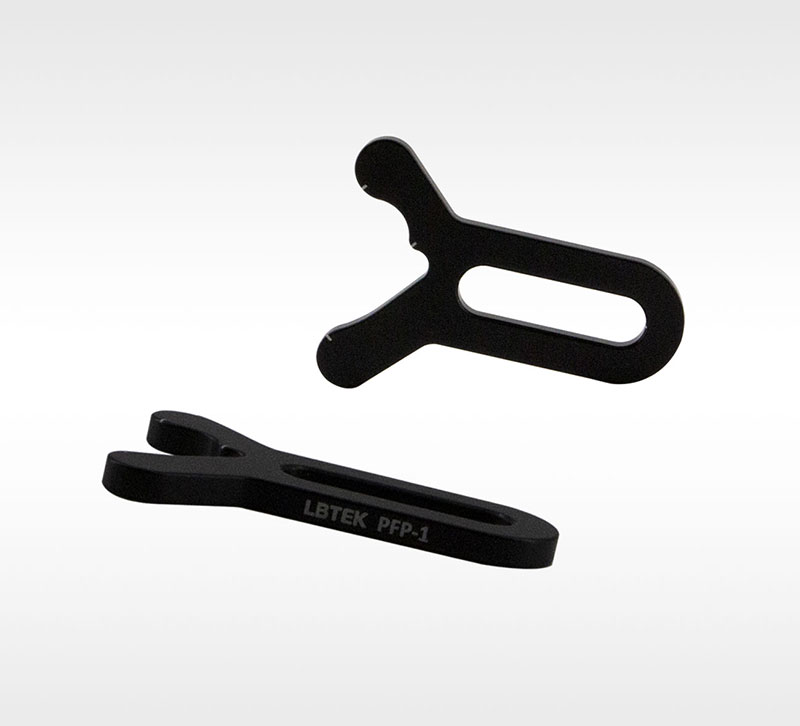

用途：定位光学系统中的底座
带标记点
腰型槽设计
材质：303不锈钢
底座有加工的退刀槽，用于增加稳定性
无磁性
主体材质：6061-T6铝合金/303不锈钢
表面处理：黑色阳极氧化/钝化
多种尺寸和螺纹规格可选
兼容公制或英制的面包板、接杆和支架

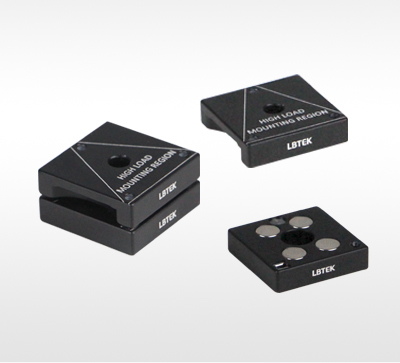

两对强磁体连接，拆装方便
滚珠与V槽设计，三角形分布，实现高精度定位
M6螺柱，不可拆卸
材质：6061-T6 铝合金/303不锈钢
兼容英制/公制
底部凹槽，安装稳定
M6螺柱，螺柱长度5.3 mm
磁性和无磁性可选
