产品说明
- 将光纤中的光准直输出
- 耦合自由空间光至光纤中
- FC/PC接口、FC/APC接口、SMA接口可选
- 宽谱适用
- 小型化
LBTEK小型化反射式准直器是由离轴抛物面反射镜精确定位封装而成，外壳为不锈钢材质。25.4 mm RFL的准直器，其径向刻度的读数步长为10°。50.8 mm RFL的准直器，其径向刻度的步长为10°，同时还提供了轴向刻度，轴向刻度的相邻刻度线间距为1 mm。可直接安装在LBTEK的16 mm同轴立方体内，其内部配置的离轴抛物面反射镜，可使反射镜的焦距在宽波长范围内保持不变。由于这种固有属性，小型化反射式准直器不需要调节就能准直不同波长的光，这使它们成为准直多色光的理想选择。常用于准直宽谱光源系统、红外光束准直/耦合系统以及多色光耦合系统。

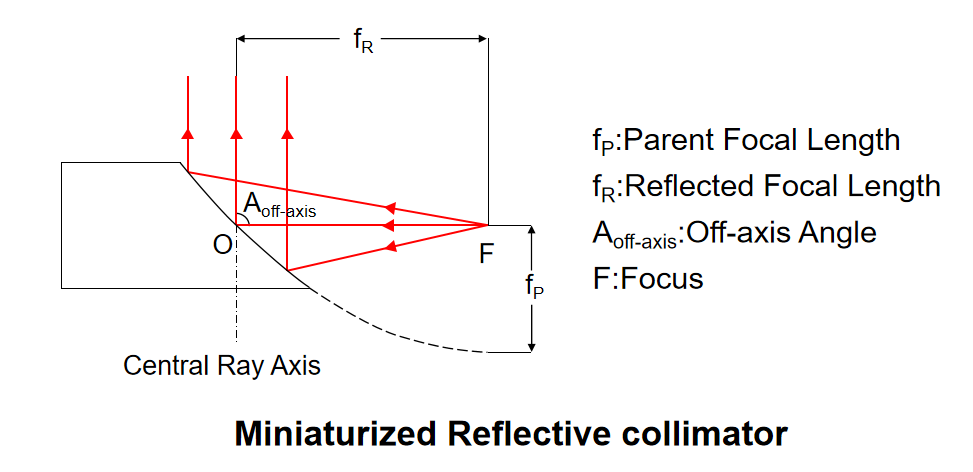

示意图
小型化反射式准直器，带保护银膜，450 nm-20.0 μm
- 工作波长450 nm-20.0 μm
- 多种出射光斑可选
- 光纤接口：FC/PC、FC/APC、SMA可选
- 小型化

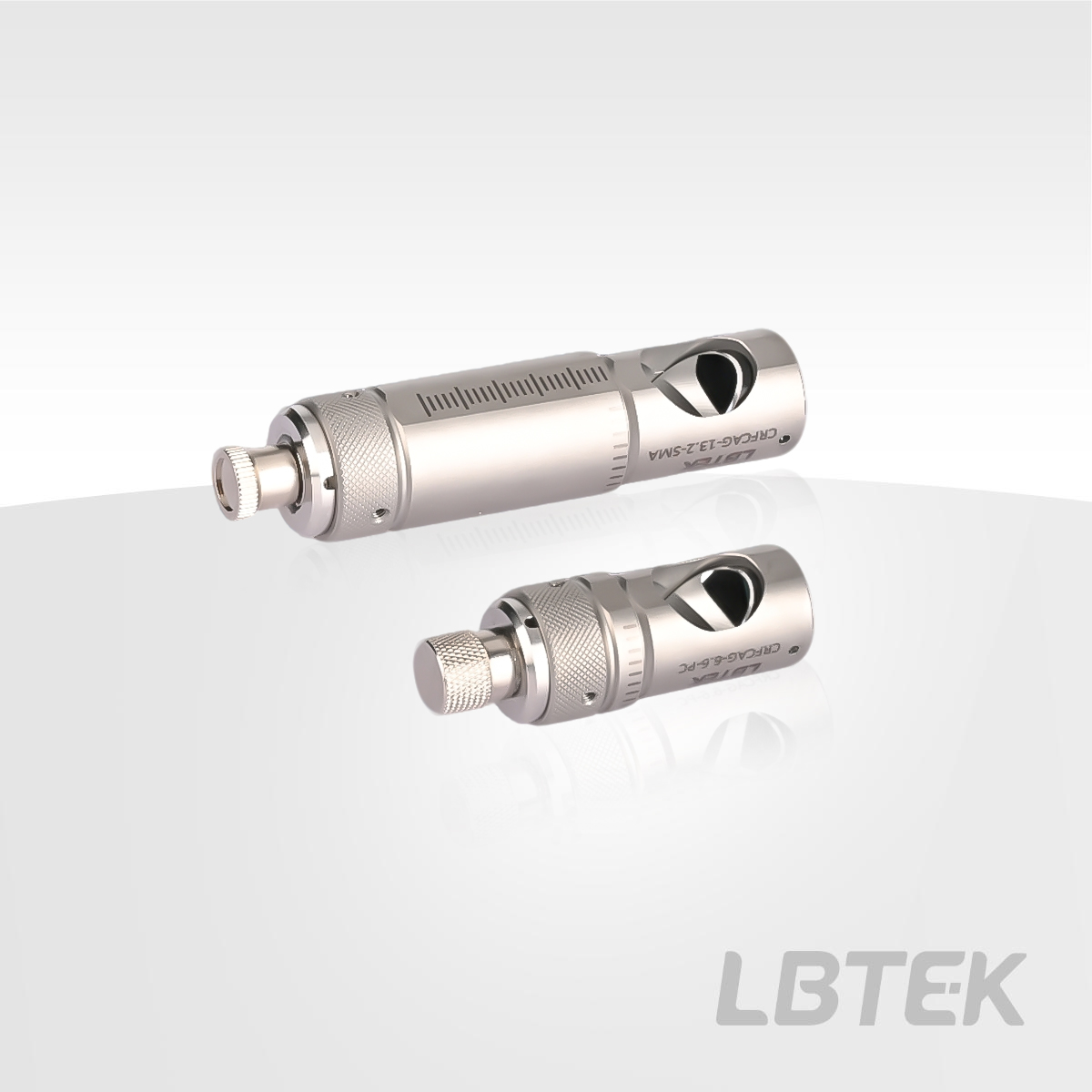

LBTEK小型化反射式光纤准直器可在450 nm-20 μm工作波长环境下使用，可选择不同出射光斑尺寸，适用于带FC/PC、FC/APC、SMA接头的光纤，CRFCAG-6.6-x和CRFCAG-13.2-x小型化反射式准直器外壳可以直接安装到CM05同轴立方体集成到16mm同轴系统中。

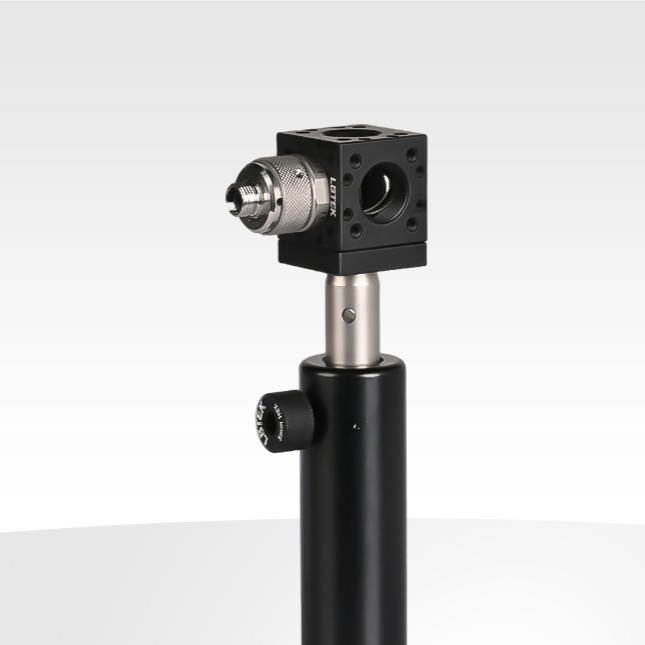

CRFCAG-6.6-APC安装在CM05中
产品型号 | 反射焦距 | 理论光斑直径a | 接口类型 | 文件 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|---|
 | CRFCAG-6.6-PC 新品 | 25.4 mm | 5 mm | FC/PC | ¥4,625.00 | 当天 | 加入购物车 | ||
| CRFCAG-6.6-SMA 新品 | 25.4 mm | 5 mm | SMA | ¥4,625.00 | 当天 | 加入购物车 | ||
| CRFCAG-6.6-APC 新品 | 25.4 mm | 5 mm | FC/APC | ¥4,625.00 | 当天 | 加入购物车 | ||
| CRFCAG-13.2-SMA 新品 | 50.8 mm | 10 mm | SMA | ¥4,625.00 | 当天 | 加入购物车 | ||
| CRFCAG-13.2-PC 新品 | 50.8 mm | 10 mm | FC/PC | ¥4,625.00 | 当天 | 加入购物车 | ||
| CRFCAG-13.2-APC 新品 | 50.8 mm | 10 mm | FC/APC | ¥4,625.00 | 当天 | 加入购物车 |
