产品说明
- 可视的划痕-麻点参照，用于光学元件检测
- OSIP-ISO：ISO 10110-7
- OSIP-MILB：MIL-PRF-13830B用于麻点编号5到50，ANSI/OEOSC OP1.002用于所有麻点和划痕
- 带塑料框架，包含硬泡沫盒
LBTEK划痕-麻点对照板（OSIP-ISO、OSIP-MILB）用于光学元件表面质量的评估，通过目视或显微镜比对判定元件表面缺陷的等级。产品提供两种对照板，分别依据不同的评价标准，覆盖 ISO 与 MIL 两套常见的表面质量体系。
使用对照板时，请将其放在需检测的光学元件的旁边，比较光学元件的表面缺陷与对照板上的缺陷。我们的两种对照板都设计用于尺寸分析，这有助于对光学元件的缺陷进行公正的鉴定。建议制造商和用户使用相同的标准。

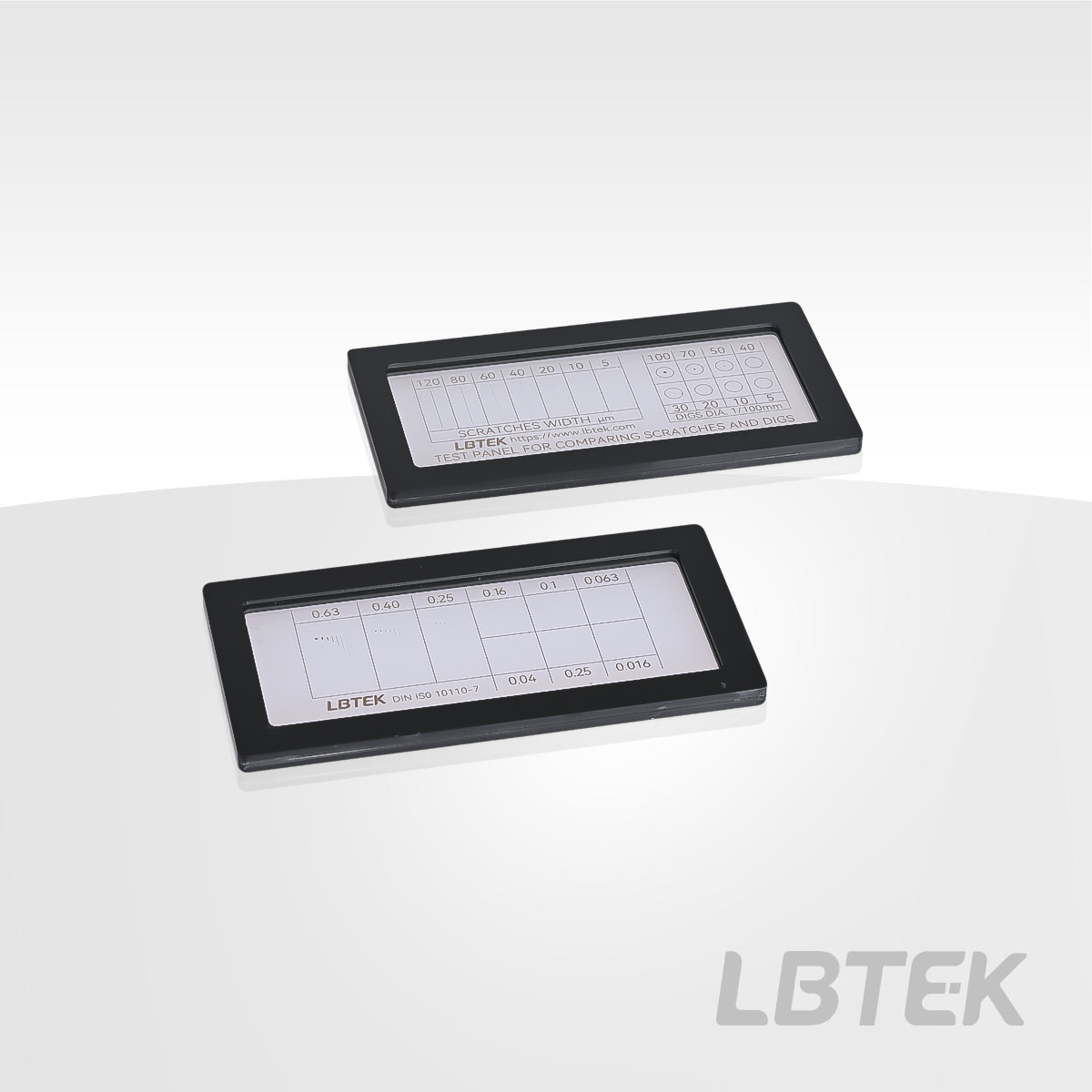

光学表面缺陷(划痕－麻点)对照板
- 可视的划痕-麻点参照，用于光学元件检测
- OSIP-ISO: ISO 10110-7
- OSIP-MILB: MIL-PRF-13830B用于麻点编号5到50，ANSI/OEOSC OP1.002用于所有麻点和划痕
- 带塑料框架，包含硬泡沫盒
OSIP-ISO对照板：依据 ISO 10110-7 标准定义。缺陷按物理尺寸评估与分级，不区分划痕与麻点，所有瑕疵均视为不同尺寸的划痕。该板侧重尺寸量化，适合采用 ISO 体系进行表面质量判定的场景。
OSIP-MILB对照板：依据 ANSI/OEOSC OP1.002 标准定义划痕与麻点，麻点编号 5–50 对应 MIL-PRF-13830B 标准。该板按缺陷形状分为划痕与麻点两部分，强调缺陷形貌差异。等级数字表示划痕宽度（单位 µm）或麻点直径（单位 1/100 mm），便于按既定阈值直接比对定级。

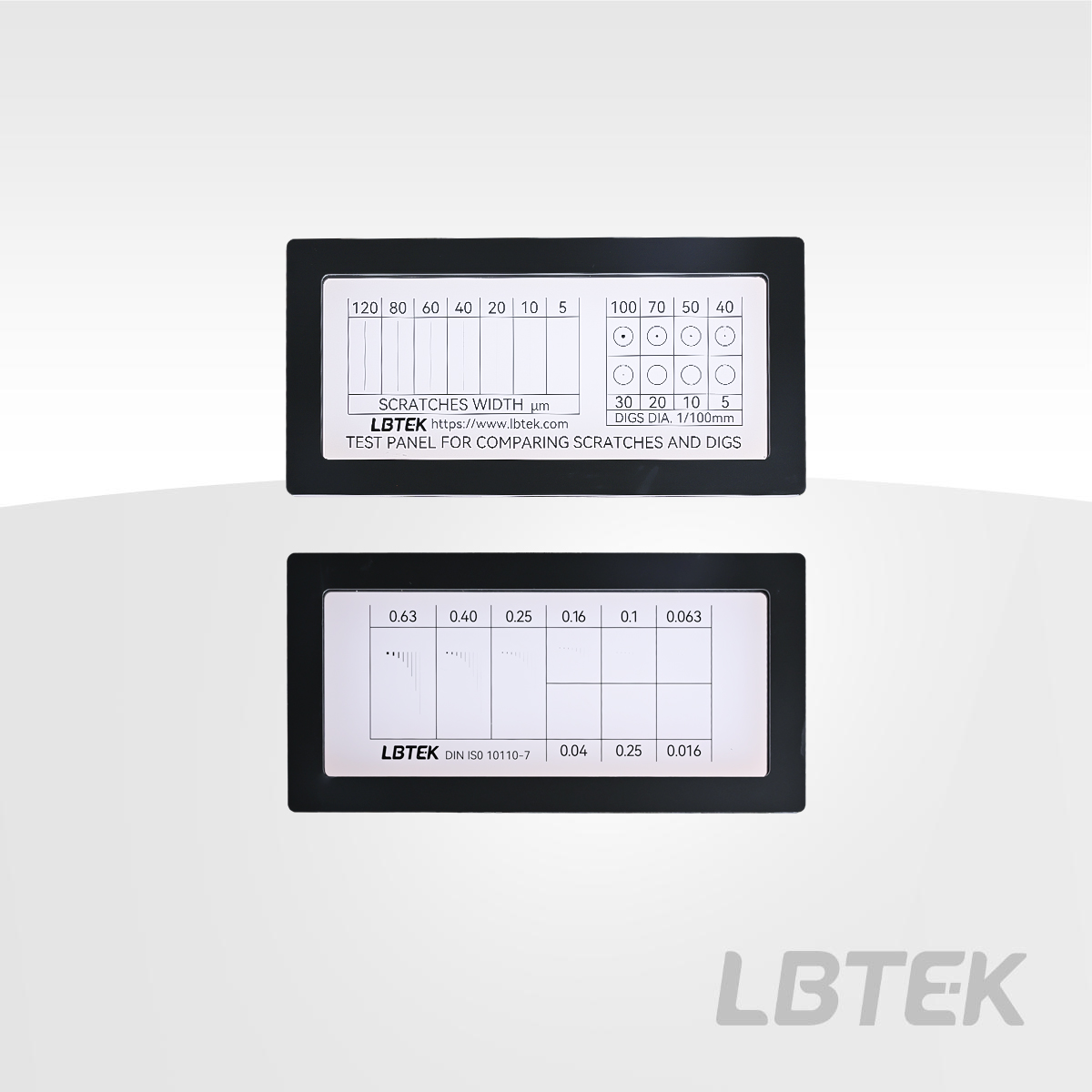

OSIP-ISO(顶部)和OSIP-MILB(底部)表面缺陷标准的详细信息
产品型号 | 范围 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|
 | OSIP-ISO 新品 | 划痕范围: 0.016 - 0.63 | ¥3,610.00 | 当天 | 加入购物车 | |
| OSIP-MILB 新品 | 划痕范围: 5 - 120 , 麻点范围: 5 - 100 | ¥3,610.00 | 当天 | 加入购物车 |
