产品说明
- 可安装分束立方或直角棱镜
- 5种安装尺寸可选，光轴中心高度为整数
- 结构紧凑，低剖面设计，胶粘式固持光学件
LBTEK 胶粘式平台安装座用于安装分束立方或直角棱镜，有5 mm、10 mm、12.7 mm、20 mm、25.4 mm多种规格可选。胶粘式平台安装座用于安装分束立方和直角棱镜结构紧凑，胶粘式固持光学元件方式，光轴中心高度为整数，安装座底部均带有M4螺孔，用于安装接杆
产品属性
材质6061-T6 铝合金
表面处理黑色阳极氧化
光学元件安装方式胶粘式固持
胶粘式平台安装座
- 胶粘式固持光学件
- 底部带螺纹孔，可安装到接杆上
- 5种安装尺寸可选

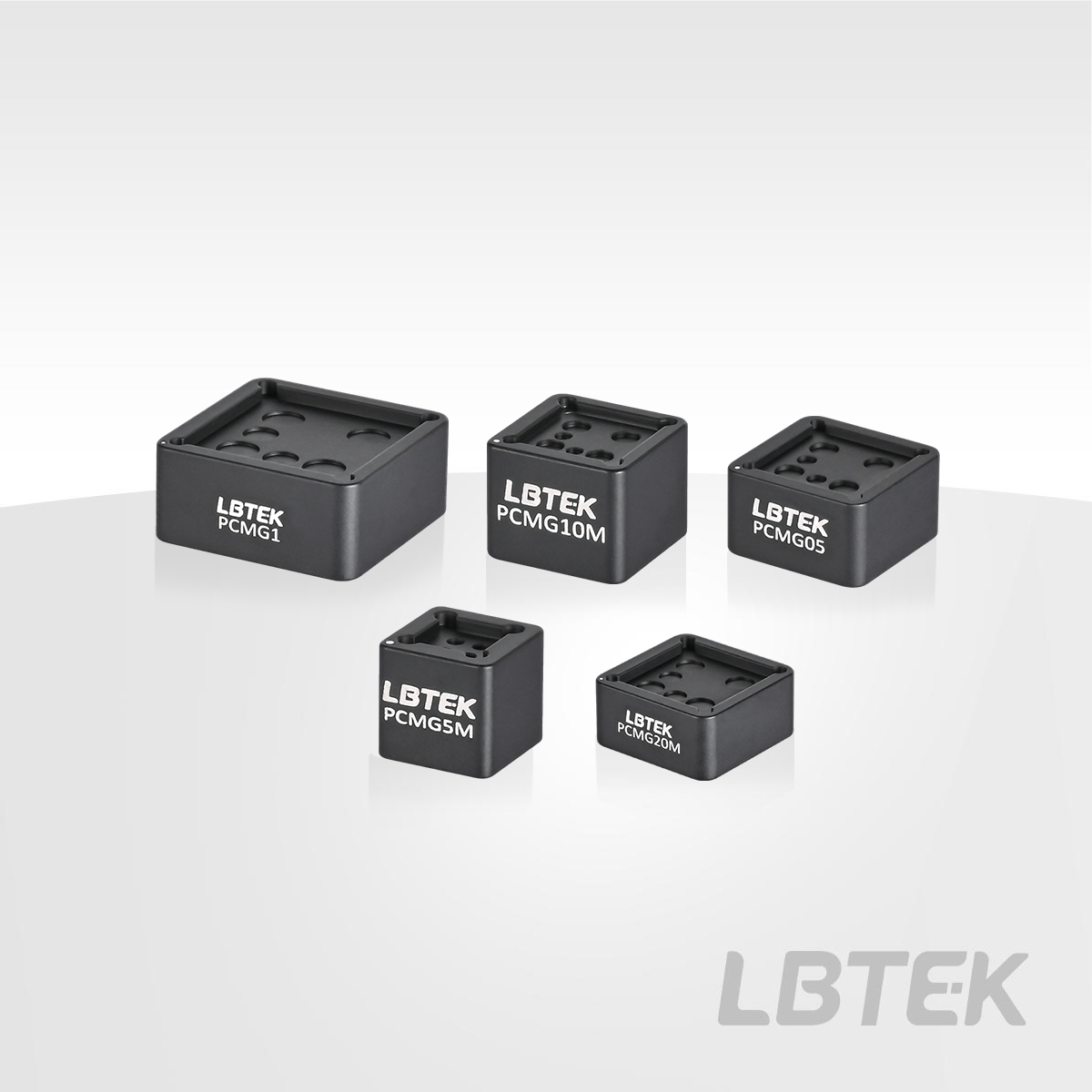

LBTEK 胶粘式平台安装座用于安装分束立方或直角棱镜，PCMG5M、PCMG10M、PCMG05、PCMG20M、PCMG1，胶粘式固持光学元件，光轴中心高度为整数；分别适合安装边长为5 mm、10 mm、12.7 mm、20 mm、25.4 mm的光学元件；5款安装座底部都具有M4螺纹孔，可直接兼容带M4顶孔的接杆
应用示意图
产品型号 | 适用光学元件尺寸 | 光轴中心高度 | 文件 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|

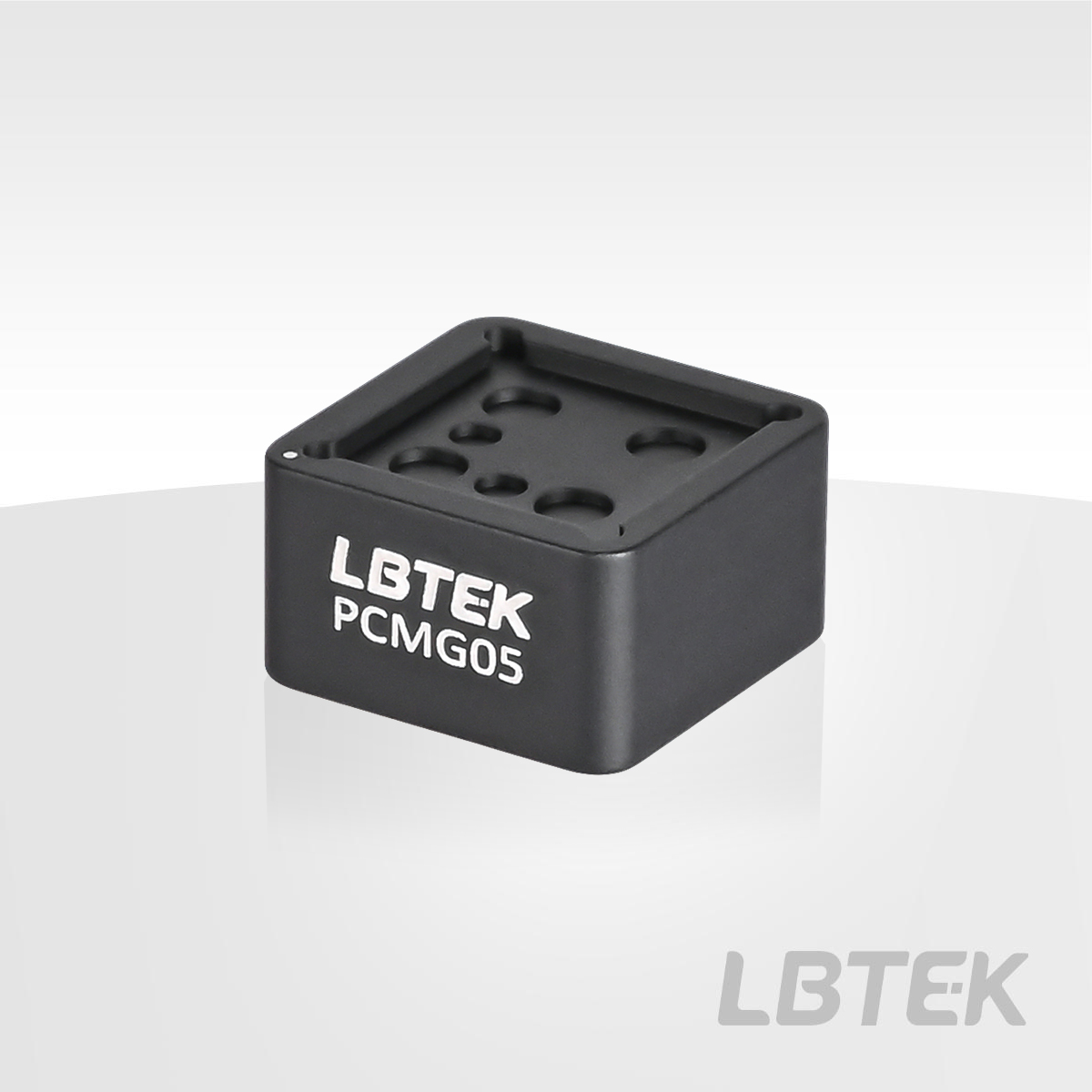

 | PCMG05 新品 | 12.7 mm | 15 mm | ¥134.00 | 当天 | 加入购物车 | ||
| PCMG1 新品 | 25.4 mm | 25 mm | ¥172.00 | 当天 | 加入购物车 |
