产品说明
- 材质：6061-T6铝合金
- 30mm和60mm同轴系统垂直安装
- 带U型沉头槽，用于安装在面包板/光学平台上
- 中心SM1螺纹贯穿孔用于安装光学元件
- 侧面M4螺纹孔可连接光学接杆
LBTEK 30mm/60mm同轴系统可通过垂直安装板垂直安装在光学平台/面包板上，U型沉头槽设计， 8个Ø6mm光学接杆的通孔个用于安装同轴接杆，中间SM1螺纹贯穿孔兼容SM1规格螺纹光机械件。侧面M4螺纹孔可连接光学接杆。
产品属性
材质6061-T6铝合金
表面处理黑色阳极氧化
规格30 mm转60 mm
平整度±0.10 mm
同轴系统垂直安装板
- 材质：材质：6061-T6铝合金
- 兼容30mm和60mm同轴系统
LBTEK垂直安装板可在光学平台/面包板上垂直安装30mm/60mm同轴系统， U型沉头槽设计，可垂直固定在光学平台/面包板上，板上有8个用于安装Ø6mm光学接杆的通孔，安装板中间为SM1安装孔，兼容SM1规格螺纹光机械件。侧面M4螺纹孔可连接光学接杆。

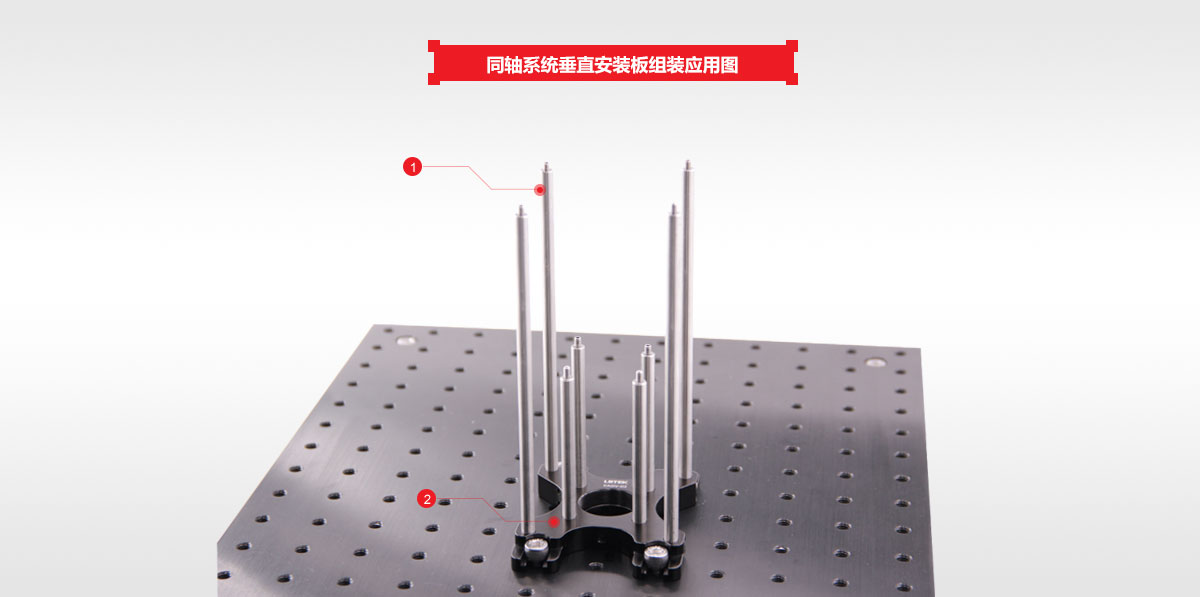

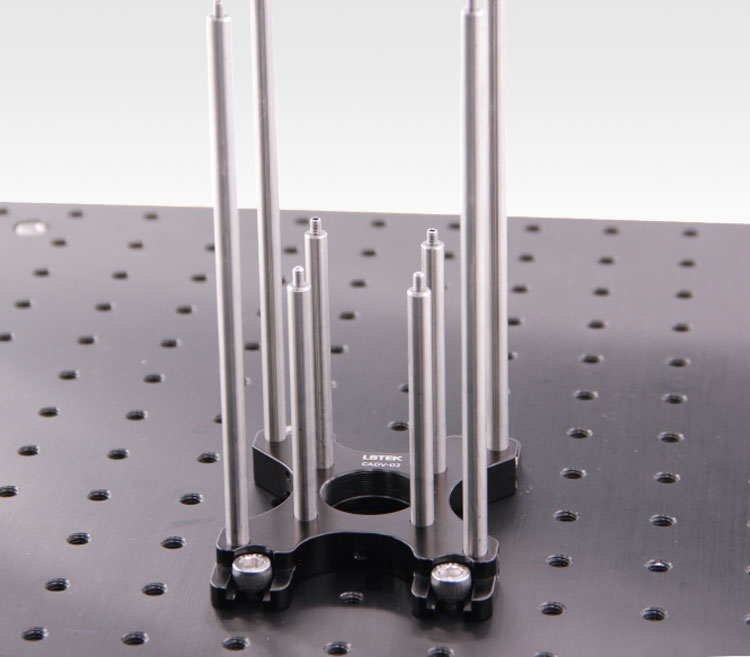

垂直安装方式
产品型号 | 材质 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|
| CADV-02 | 6061-T6铝合金 | ¥272.00 | 当天 | 加入购物车 |
