产品说明
- 材质：6061-T6 铝合金
- 易拆卸或安装
- 挠性结构设计，保证夹持稳固
- 兼容60 mm同轴系统
LBTEK 卡入式免拆卸60 mm同轴系统安装架适用于支撑已经组装好的同轴系统（子系统），不需要拆解同轴系统即可将同轴系统接杆卡入安装架，侧边附带M2.5 (兼容2 mm六角扳手)内六角圆柱头螺钉固定安装，挠性结构设计，保证夹持稳固。中间带M4沉头孔用于连接光学接杆。
示意图
产品属性
材质6061-T6 铝合金
表面处理黑色阳极氧化
适用同轴系统60 mm

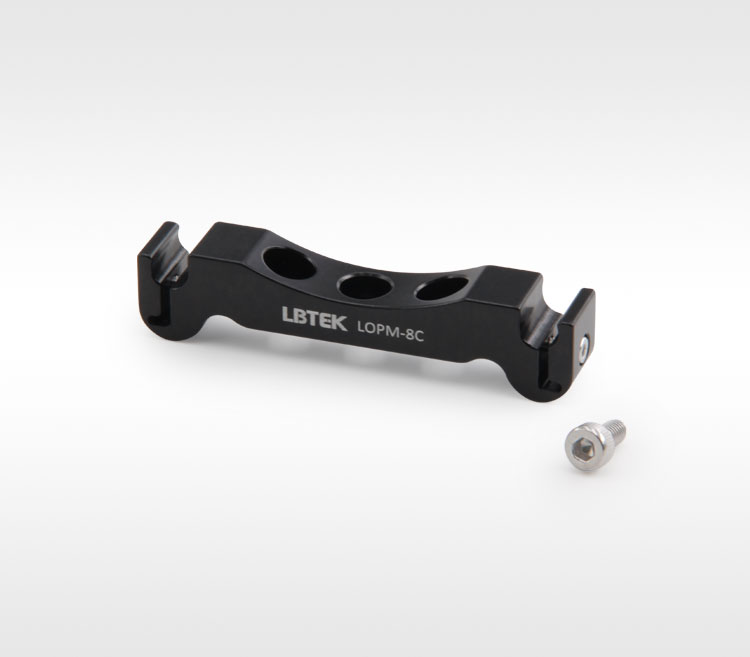

卡入式60mm同轴系统接杆安装架
- 材质：6061-T6 铝合金
- 易拆卸或安装
- 兼容60 mm同轴系统
LBTEK卡入式60mm同轴系统安装架适用于支撑已经组装好的同轴系统（子系统），不需要拆解同轴系统即可将同轴系统接杆卡入安装架，侧边附带M2.5 (兼容2 mm六角扳手) 内六角圆柱头螺钉固定安装，绕性结构设计，保证夹持稳固。中间带M4沉头孔用于连接光学接杆。

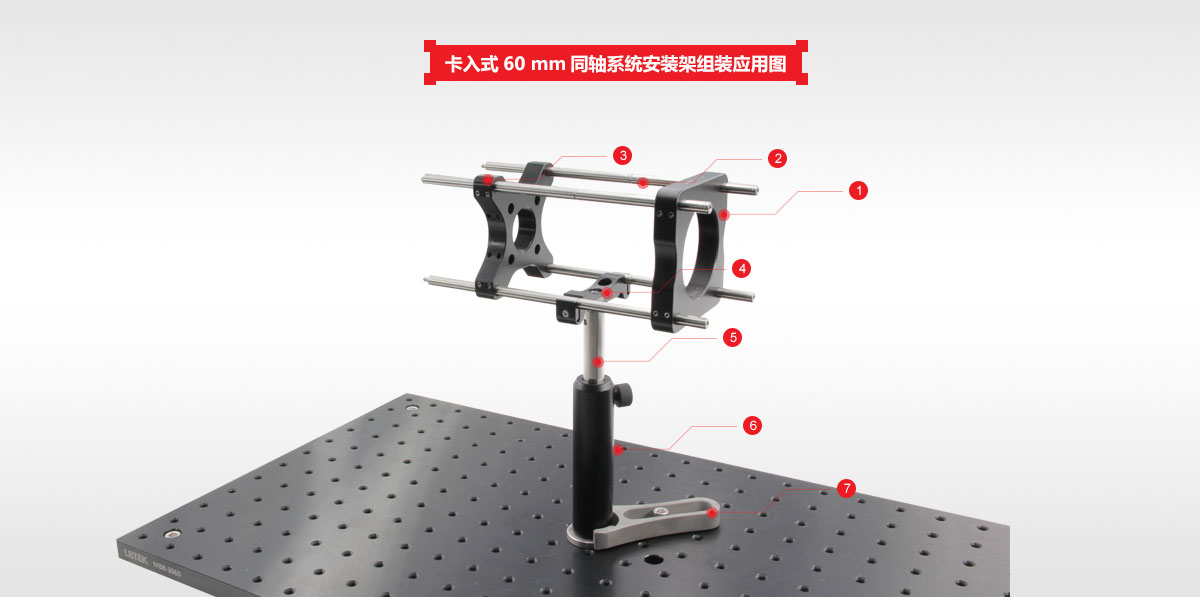

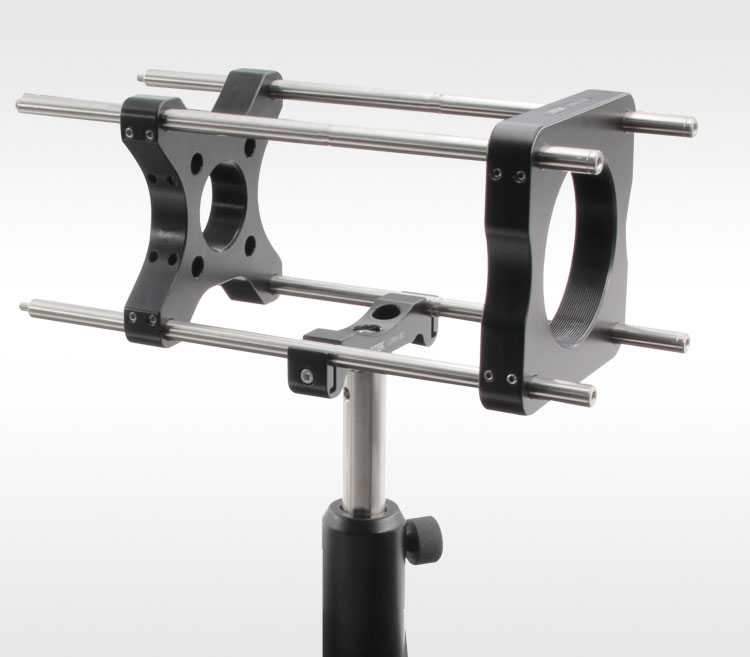

与同轴系统安装
产品型号 | 材质 | 表面处理 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|

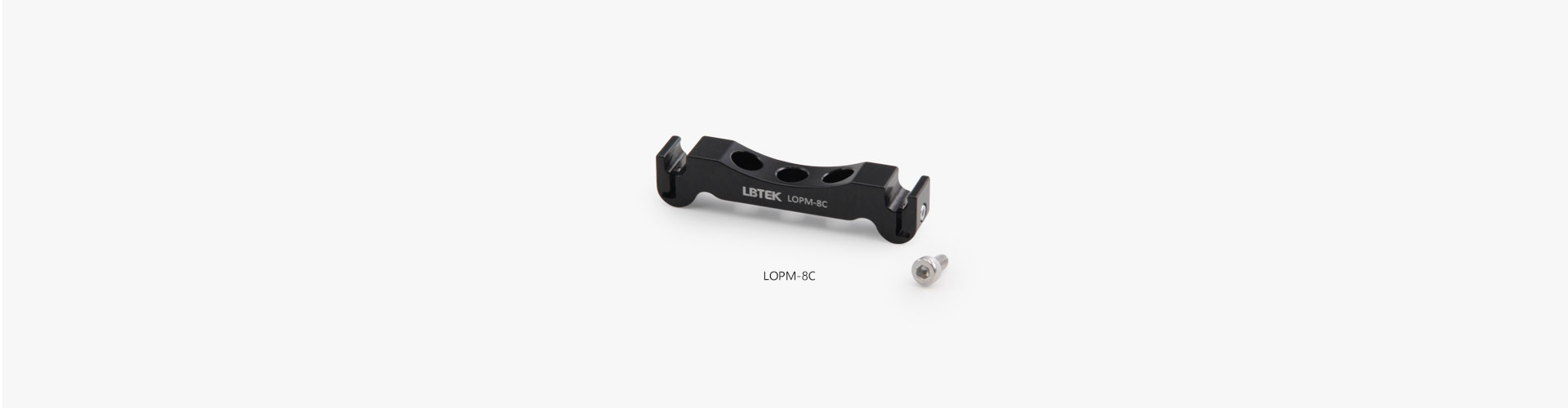

| LOPM-8C | 6061-T6 铝合金 | 黑色阳极氧化 | ¥253.00 | 当天 | 加入购物车 |
