产品说明
- 材质：6061-T6铝合金
- 固定角度：90°
- 兼容Ø6 mm接杆
LBTEK提供的 Ø6 mm接杆角度夹具构造坚固，带M3螺纹孔和Ø6 mm通孔，可将Ø6 mm接杆以90度彼此固定，实现稳定、紧凑的复杂配件组合，从而提高空间利用率。夹具侧面提供M3紧定螺钉，通过1.5mm扳手锁紧。LBTEK提供特殊表面处理工艺，尺寸定制服务，如有需求请技术支持。
产品属性
材质6061-T6 铝合金
表面处理黑色阳极氧化
固定角度90°

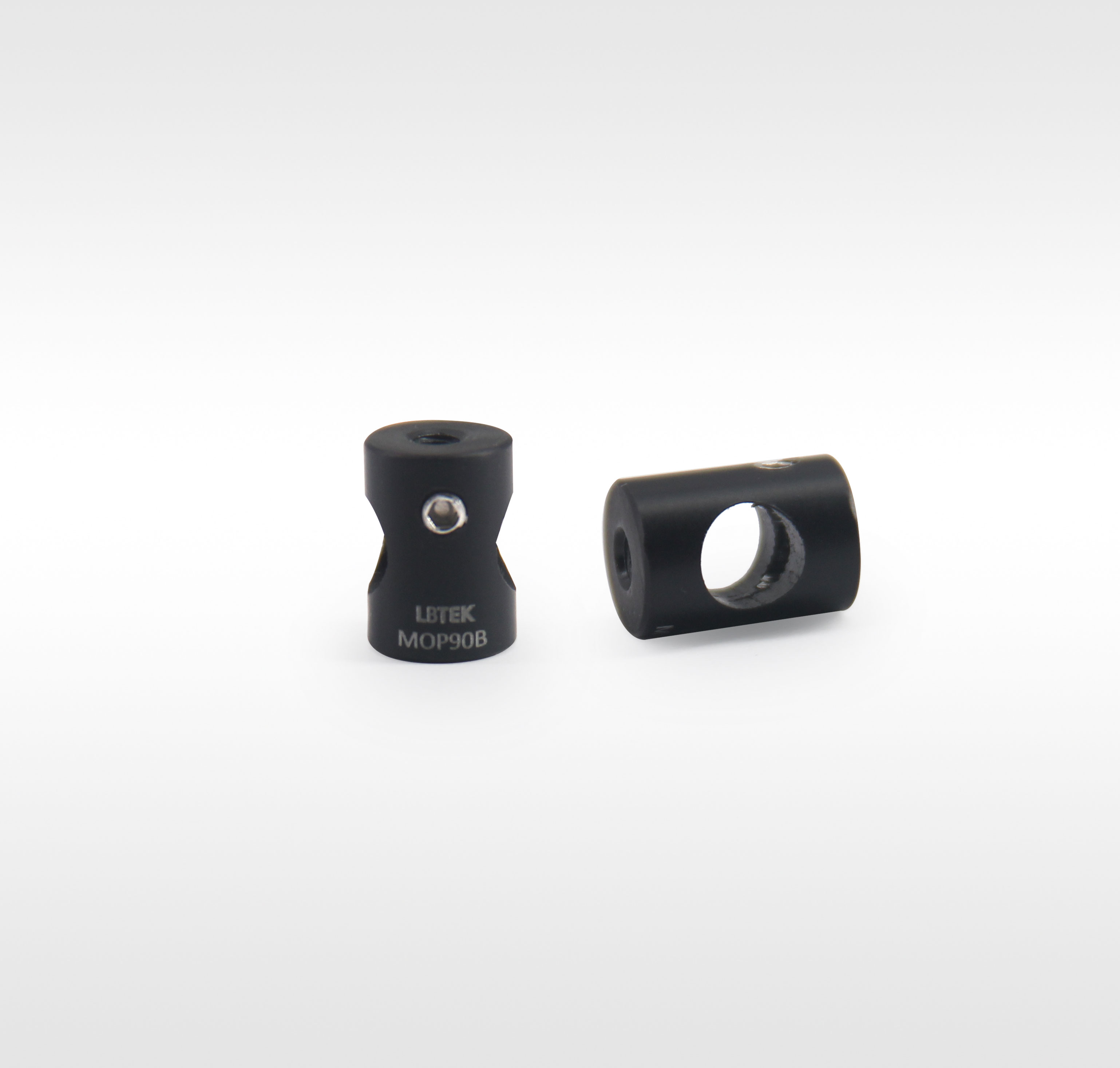

Ø6 mm接杆90度夹具
- 材质：6061-T6铝合金
- 固定角度：90°
- 兼容Ø6 mm接杆
LBTEK提供的 Ø6 mm接杆90度夹具构造坚固，带M3螺纹孔和Ø6 mm通孔，可将Ø6 mm接杆以90度彼此固定，实现稳定、紧凑的复杂配件组合，从而提高空间利用率。夹具侧面提供M3紧定螺钉，通过1.5 mm扳手锁紧。

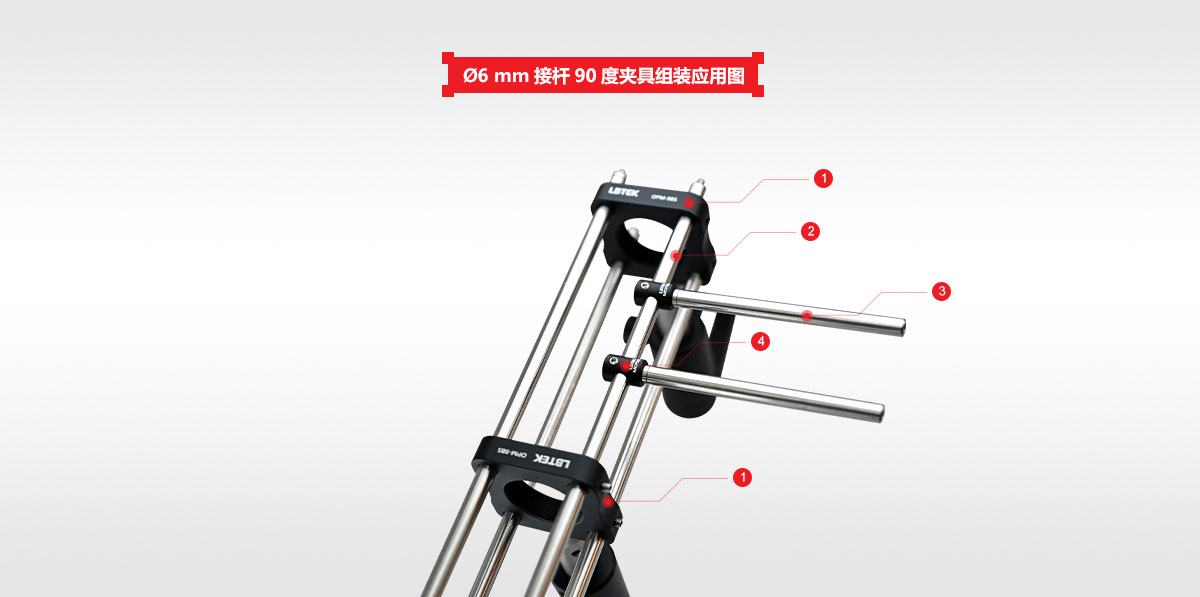

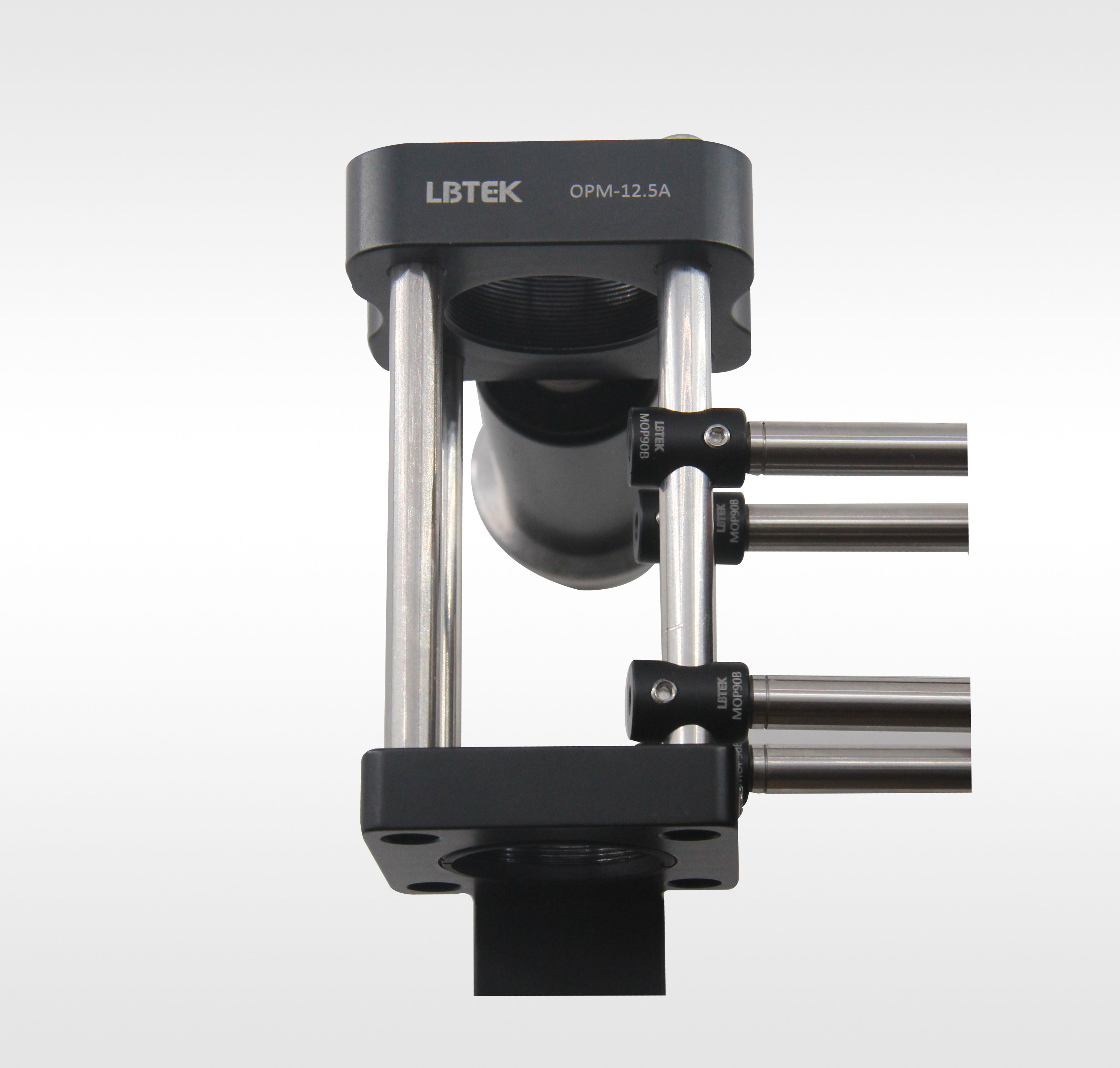

Ø6 mm接杆角度夹具常用于同轴系统90°转接
产品型号 | 固定角度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|

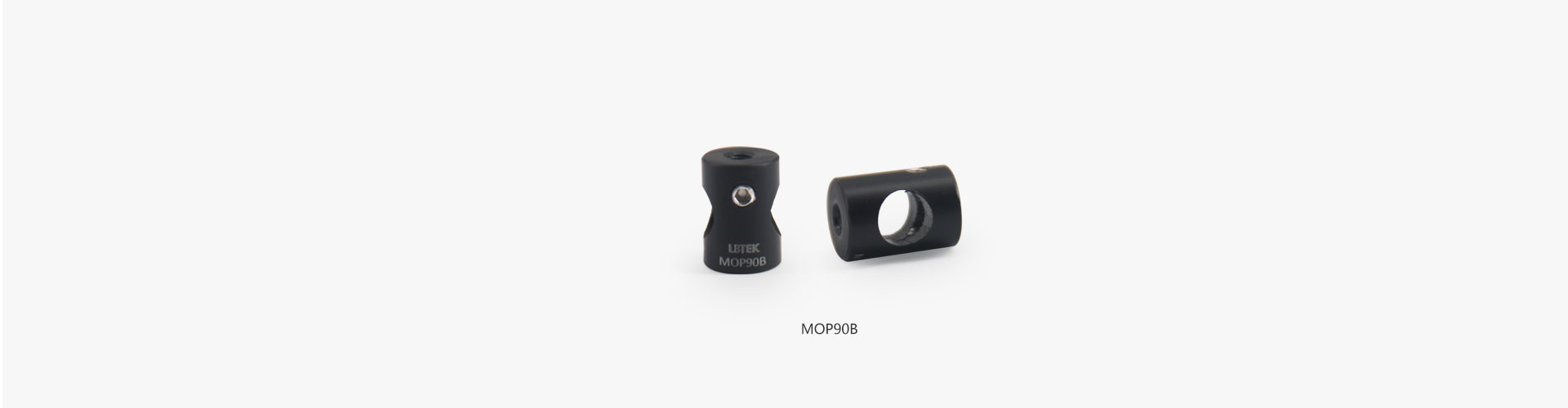

| MOP90B | 90°± 0.05° | ¥103.00 | 当天 | 加入购物车 |
