产品说明
- 兼容30 mm同轴系统
- 夹持圆形或方形元件
- 夹持高度可调节并带有锁紧
LBTEK提供的同轴夹持器兼容30 mm同轴系统，可夹持圆形或方形元件，元件通过胶头螺钉进行固定，夹持高度可调节并带有锁紧。安装组件的顶部和底部都可以沿同轴接杆方向独立移动，还可通过MOPS同轴板定位器将其固定在同轴系统中确定位置。
产品属性
材质6061-T6 铝合金
表面处理黑色阳极氧化

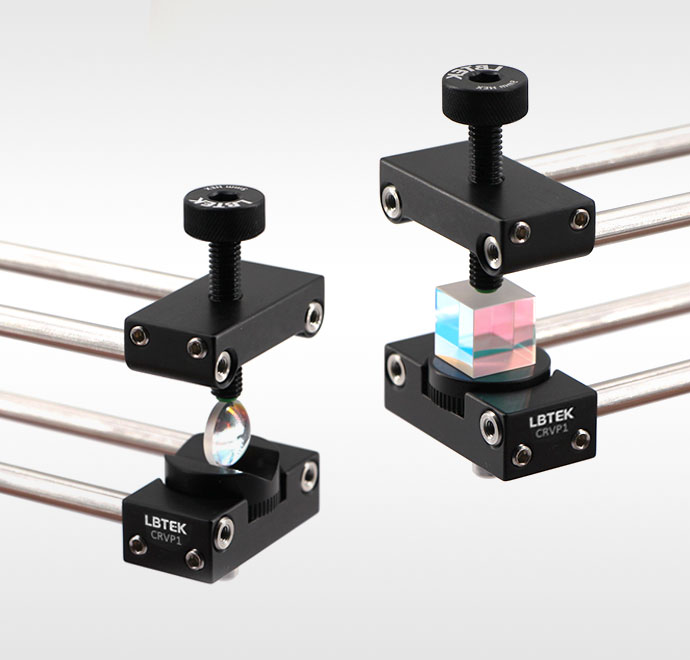

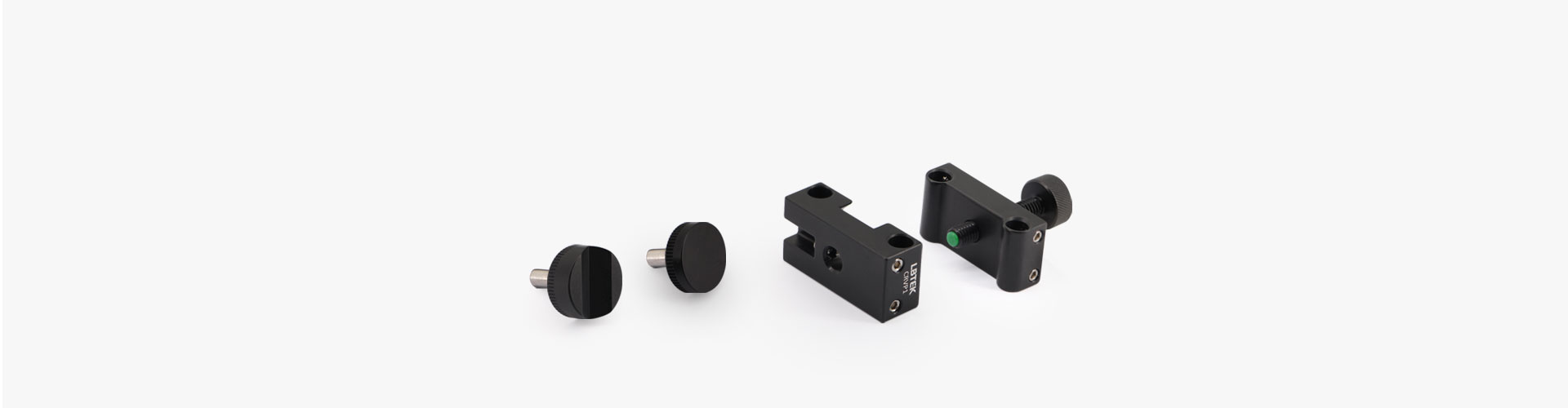

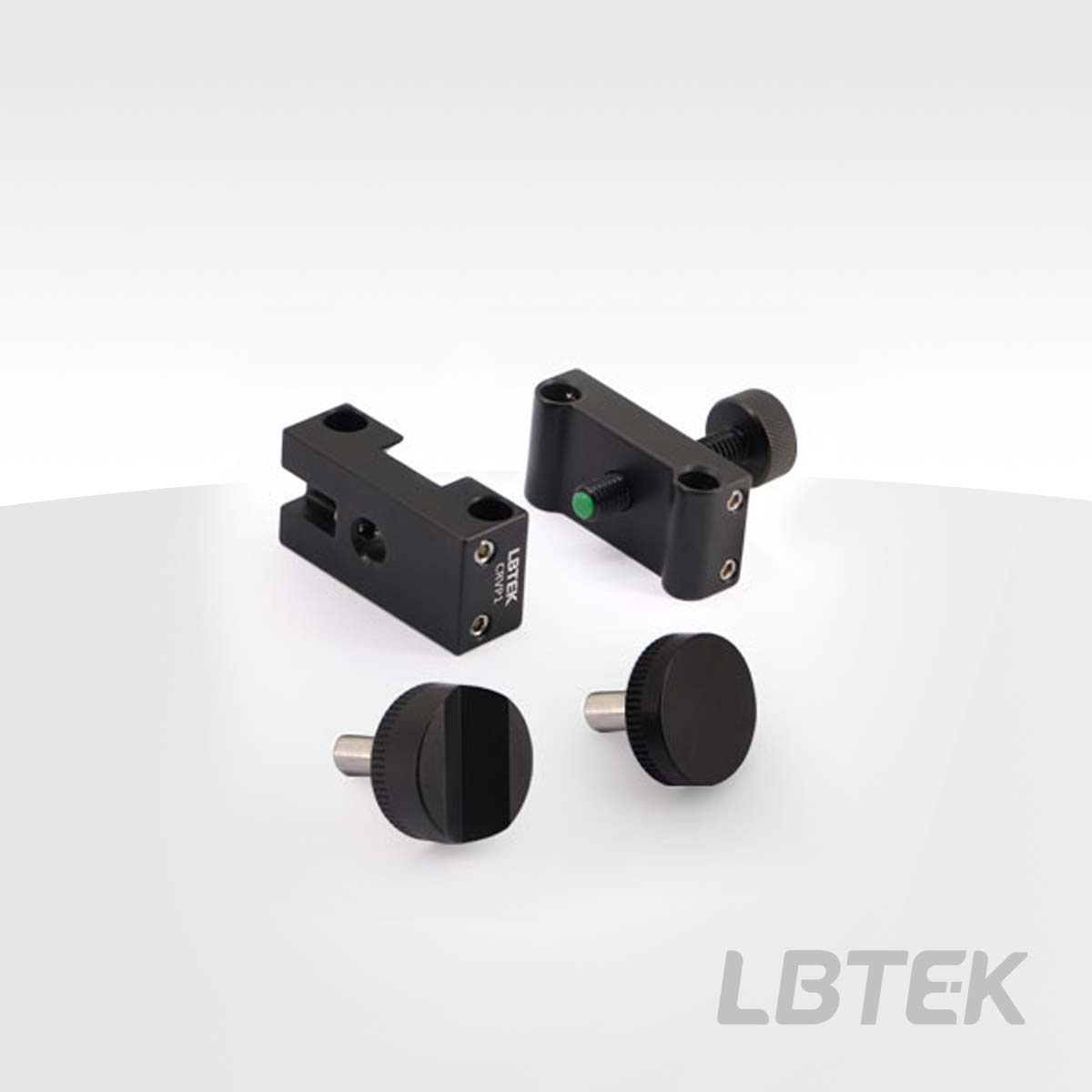

同轴夹持器，可夹持圆形和方形元件
- 夹持高度可调
- V槽平台可夹持Ø4 mm~Ø15 mm的圆形元件
- 平面平台可夹持最大高度20 mm光学元件
LBTEK提供的同轴夹持器兼容30 mm同轴系统，V槽平台可夹持Ø4 mm~15 mm的圆形元件，平面平台可夹持最大高度20 mm光学元件。夹持高度可调节并带有锁紧，组件顶部和底部均可在同轴接杆上进行移动及通过侧边紧定螺丝锁定。
可夹持圆形/方形元件
产品型号 | 适用光学元件尺寸 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|
| CRVP1 | 直径4 mm~15 mm（圆形）或高度≤20 mm（方形） | ¥791.00 | 当天 | 加入购物车 |
