参数规格
反馈
产品说明
- 万向调节设计
- 安装直径25.4 mm的光学元件
- 用于30 mm同轴系统
LBTEK 提供的30 mm同轴万向调整架采用万向调节设计，可使光学元件在同轴系统内绕旋转中心点进行360°旋转。其具有粗调和微调两种调节模式，可360°粗略调节光学元件后锁定，锁定后再通过调节器可以进行微调，从而实现万向调节。可安装最大厚度6 mm，Ø25.4 mm的光学元件，用于30 mm同轴系统。
产品属性
主体材质6061-T6铝合金
表面处理黑色阳极氧化
适用光学元件直径Ø25.4 mm

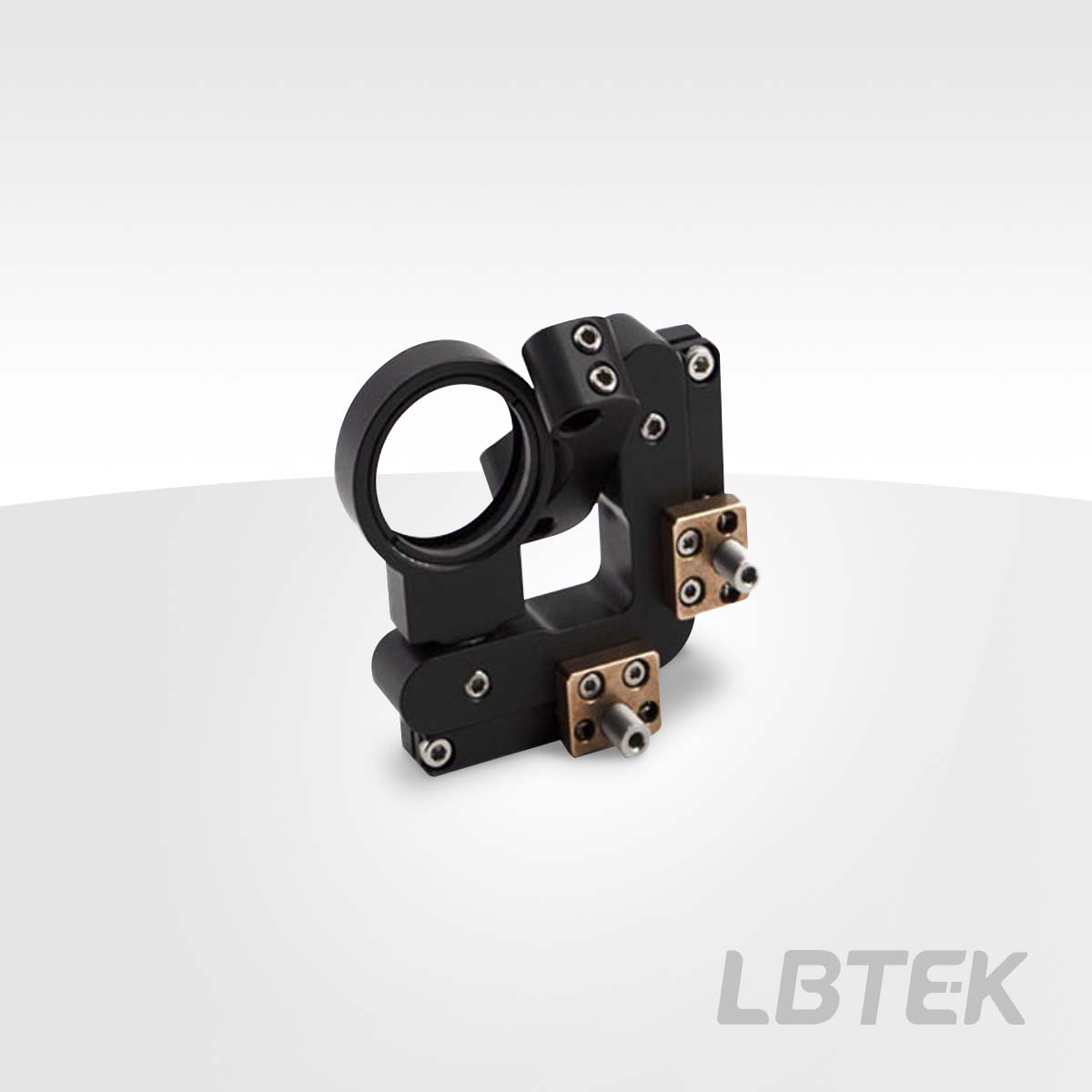

30 mm同轴万向调整架
- 主体材质6061-T6铝合金
- 万向调节设计
- 可安装Ø25.4 mm，最大厚度6 mm的光学元件
- 附带1个SM1R卡环
LBTEK 30 mm同轴万向调整架带SM1内螺纹，可安装Ø25.4 mm，最大厚度6 mm的光学元件，适用于30 mm同轴系统。其具有粗调和微调两种调节模式，光学元件可360°粗调后锁定，锁定后可通过调节器进行±25°微调，调节精度为0.75°/转。锁定螺钉和调节器均使用2 mm六角扳手进行调节。附送一个SM1R卡环和一个2 mm六角扳手。

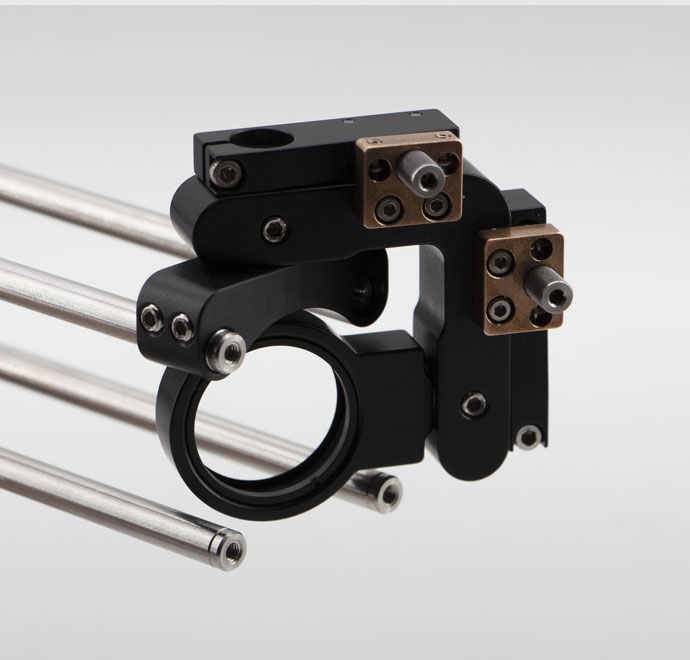

万向调整架用于30 mm同轴系统
产品型号 | 适用光学元件直径 | 适用光学元件最大厚度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| UAMC-1A | Ø25.4 mm | 6 mm | ¥1,578.00 | 当天 | 加入购物车 |
