产品说明
- 适用于60 mm同轴系统
- 将同轴组件沿常用光轴安装到燕尾导轨
- 同轴板和卡入式安装架可选
LBTEK 燕尾式60 mm同轴系统安装座适用于将60 mm同轴系统组件安装于燕尾轨道上，燕尾夹持设计便于根据应用要求拆卸或增添同轴系统组件。提供同轴板和卡入式安装座两种类型可选，其中同轴板型可直接安装光学元件，卡入式安装座可拓展同轴接杆。
产品属性
主体材质6061-T6 铝合金
表面处理黑色阳极氧化
适用同轴系统60 mm同轴系统

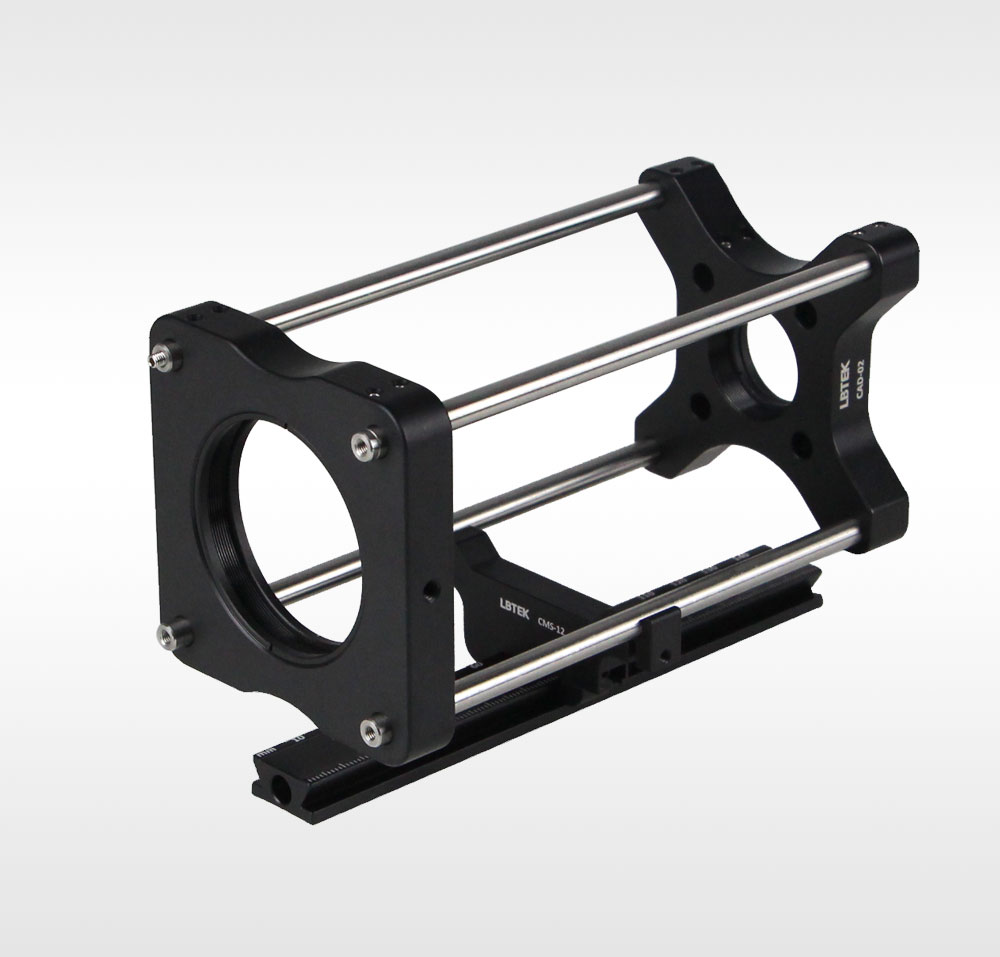

60 mm同轴安装座，用于燕尾导轨
- 将60 mm同轴系统安装在燕尾导轨上
- 利用燕尾夹持便于沿导轨定位并锁定
- 同轴中心高度：导轨表面上方50 mm

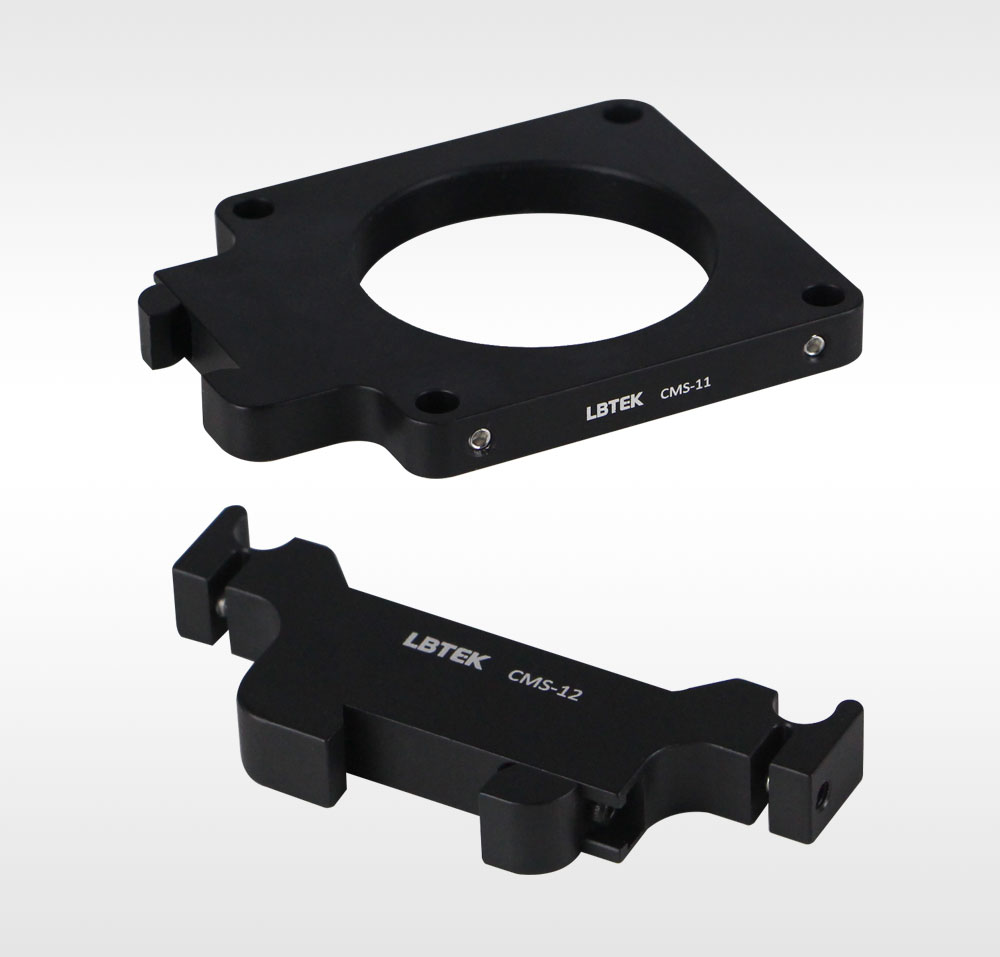

LBTEK 燕尾式60 mm同轴系统安装座用于沿燕尾导轨构建60 mm同轴系统。组件底部的燕尾夹持设计便于沿导轨任意处插入，可通过拧紧M2六角螺钉固定于导轨上。同轴板CMS-11中心带SM2内螺纹，可直接安装直径50.8 mm最大厚度4 mm的光学元件，侧面带四个M4紧定螺钉用于固定Ø6.0 mm同轴系统安装接杆。卡入式安装架CMS-12带有两个挠性夹持部分，允许卡入60 mm同轴系统组件，以实现快速而稳固的安装，侧面带两个M3紧定螺钉用于固定同轴系统组件。通过CMS-11/CMS-12安装的60 mm同轴系统中心高度均为50 mm。

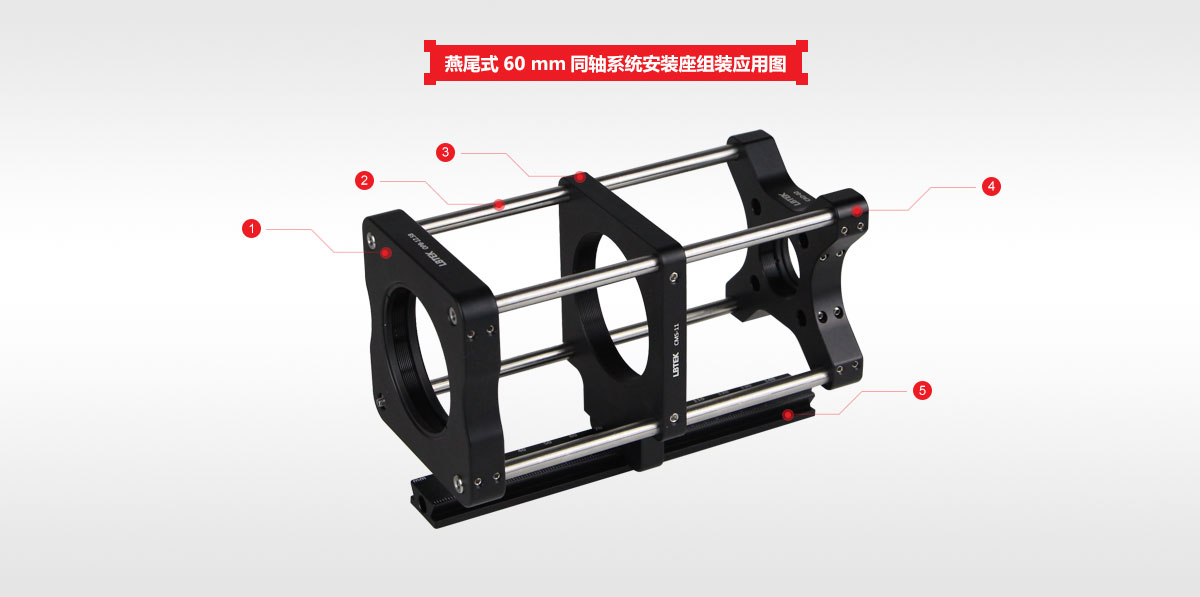

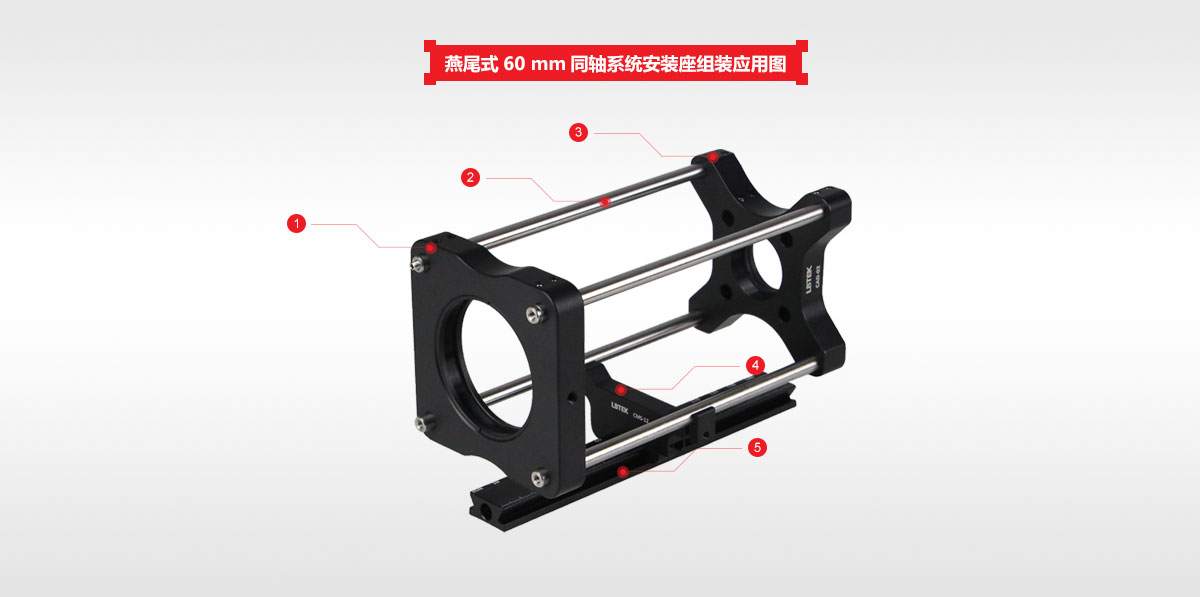

使用CMS-12将60 mm同轴系统组件安装在燕尾导轨上
产品型号 | 光学元件安装方式 | 同轴中心高度 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|
| CMS-12 | 无法直接安装 | 50 mm | ¥604.00 | 当天 | 加入购物车 | ||
| CMS-11 | 双卡环固定 | 50 mm | ¥604.00 | 当天 | 加入购物车 |
